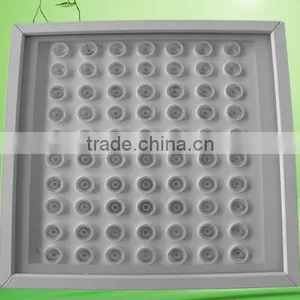

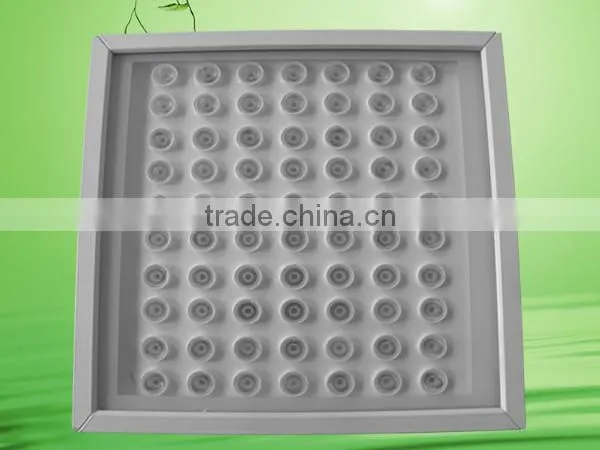

Mini340 LED Canopy Light 80w
( our Smart-Dim led canopy light is under development . It is automatically dimming . When the cars come into the forecourt , the light will increase to full power . When the cars are not in the forecourt , the light will automatically dim to 30% power )
Special Feature:
1. Quality Waterproof Driver(Taiwan Meanwell driver)
A, High EMC, no interfere
B, Power factor>0.95
C, Power Efficiency>90%
D, UL, TUV, PSE compliance
E, Full protection: short circuit, over voltage, over current and over temprature
2. High-performance Original CREE LED (Made in USA) and perfect wiring design
It has High CRI and High lumens and high reliablity. Even if one led failed, the remaining LEDs will still work.
3, Safety
A, CE, RoHS, PSE, FCC, C-TICK, ATEX, EN62471, IP66, ETL , SAA
B, ATEX approved (Explosion proof)
C, IP66 approved (Water proof)
D, EN 62471 (Photobiological Safety)
D, 4000V Hi-pot test pass
4,Warranty Policy
3 years warranty with free collection and free delivery. For any defects, we will solve it by either repairing any defective parts or replace a new LED canopy light. (For more details, please ask for Warranty Statement)
5,Low Light Loss
The light source is the low light loss and high-bright LED, in which the loss is less than 5% for every 10,000 hours. The aluminum back-side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slowing down light loss.
6,Environment-Friendly
While working, no ultraviolet light and infrared light radiation. And does not contain any hazardous substance, such as Lead and Mercury.
7,Anti-vibration
Solid-state device. Can withstand Moderate vibrations
2D DRAWINGS:
Technical Specification:
Item NO. |
CA-CLW8-80W/ CA-CLNW8-80W |
|
Replacement |
200w Sodium/metal lamp |
|
LED Source |
CREE LED, 107-122lm/W |
|
LED Initial Flux |
7000-8000Lm |
|
Lamp Power |
80W±10% |
|
Power Efficiency |
90% |
|
Lamp’s Efficiency |
90lm/w |
|
Luminous Flux |
NW |
7000-8000Lm |
CW |
7000-8000Lm |
|
Luminous Uniformity |
0.6 or more |
|
Color Tempreture |
NW |
4000K±300 |
CW |
5700K±500 |
|
Average CRI |
WW |
Ra 80 |
CW |
Ra 75 |
|
Bean Angle |
60 degree |
|
Light Distribution Curve (Beam Pattern) |
Asymmetric(Bat Wing )/Rectangular Beam |
|
Input Voltage |
85-305V AC |
|
Frequency Range |
47-63Hz |
|
Power Factor (PF) |
0.95 |
|
Total Harmonic Distribution(THD) |
less than16% |
|
Storage Temperature |
-40°C--+80°C |
|
Working Environment |
-40°C--+50°C:10%-95%RH |
|
Junction Temperature (Tj) |
60°C±10%(ta=25°C) |
|
Light Body and Lampshade Material |
Aluminum Alloy and Temprered glass |
|
Working Lifetime |
50000hrs |
|
IP Rating |
IP 66 |
|
Weight |
8kg |
|
Product Size (mm) |
343×343×140 |
|
Package Size (mm) |
420×420×210(1PC) |
|
Packing Details:
Part No. |
Item Size |
Packing Qty |
Gross Weight |
Carton Size(L*W*H) |
CA-CLW8-80W |
343×343×140 |
1Pcs |
8kg |
420×420×210 |
Caution & Warning:
1.Use outdoor.
2.Work under the fixed voltage.
3.Pls operate in the right way when you install the LED Canopy light in case to avoid the power harm and body harm. When installing, please note the short-circuit protect such as the socket with the fuse.
4. non-dimmable
5, If any doubt about the installation or use of this product, consult a competent electrician or technician .
Our projects: (BP and SHELL)
