LED T8 Lamp SI-2 DIY Energy-saving,magnetic+electronic Ballasts,with CE RoHs

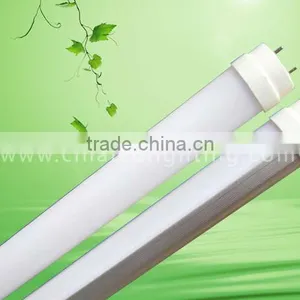

LED T8 Lamp SI-2 DIY Energy-saving,magnetic+electronic Ballasts,with CE RoHs thumbnail-1

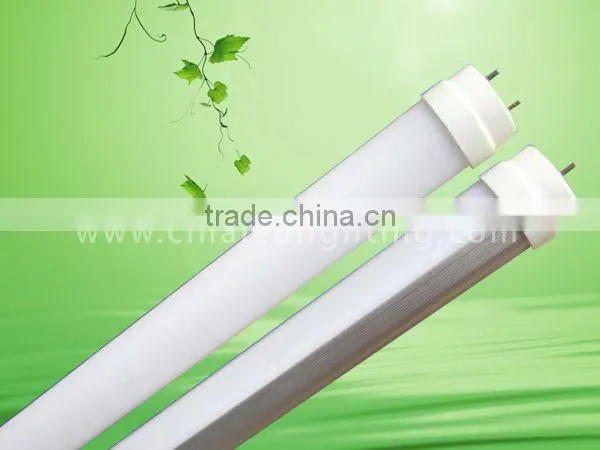

LED T8 Lamp SI-2 DIY Energy-saving,magnetic+electronic Ballasts,with CE RoHs photo-1
US$ 19 - 38 MOQ: 25 Pieces
Key Specifications
Get Latest Price
LED Light Source:
EDISON LED
Warranty(Years):
3
Input Voltage(V):
85-265
Contact Supplier Request Quote Chat Now
Shenzhen Cina LED Lighting Tech Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source EDISON LED
Warranty(Years) 3
Input Voltage(V) 85-265
Lamp Power(W) 10
Lamp Luminous Flux(lm) 1000
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Cool White
Working Temperature(℃) -20, 40
Working Lifetime(Hour) 50000
Lamp Body Material Aluminum
IP Rating IP65
Certification CE, EMC, FCC, PSE, UL
Place of Origin Guangdong, China
Brand Name CINA
Model Number T8

Specifications

T8 led tube 3014 DIY, electronic+magnetic
Quality Build-in non-Isolated Driver
Original EDISON LED
One-end powered
PC/ Alumi

Special Features:

1. Quality Build-in non-Isolated Driver ( New technology )

       LED T8 lamp SI-2 DIY energy-saving,magnetic+electronic ballasts,with CE RoHs

      A, High EMC, no interfere
B, Power factor>0.95
C, Power Efficiency>90%

      D, CE, PSE compliance

      E, Full protection:  short circuit, over voltage, over current and over temperature



2. High-performance Original EDISON LED (Made in TaiWan) and perfect wiring design

 LED T8 lamp SI-2 DIY energy-saving,magnetic+electronic ballasts,with CE RoHs

It has High CRI and High lumens and high reliability. Even if one led failed, the remaining LEDs will still work.



3, Safety

   A, One-end powered , no electric shock risk .

   One-end power            Other end has no voltage         No electric shock risk

      LED T8 lamp SI-2 DIY energy-saving,magnetic+electronic ballasts,with CE RoHs

B, Fully compliant with electrical Safety standards :  CE , TUV , PSE, FCC

  C, Photobiological Safety standards :  EN 62471

  D, Hazardous materials restriction standards:  RoHS

  E, Quality Management standards:  ISO 9001



4.  Warranty Policy

   3 years warranty with original written warranty ; 20,000 switch cycles(on/off switching). For

 any defects, we will solve it by either reparing any defective parts or replacing a new LED

tube.( For more details , please ask for Warranty Statement)



6, Simple

      It is easy to use and install with the instruction manual .



7, Professional

Full installation instructions and diagrams provided .



8 , Test Show (SI-2 DIY led tubes are tested with PHILIPS , OSRAM, ABB, GE, BAG, TRIDONIC, HELVAR, BILTEMA, Panasonic , TOSHIBA, Hitachi and other electronic ballast , and almost all magnetic/inductive ballast )





Application:

   LED T8 lamp SI-2 DIY energy-saving,magnetic+electronic ballasts,with CE RoHs



1. Office building lighting

2. Hotel lighting

3. Supermarket lighting

4. Warehouse lighting

5. Airport lighting

6. Factory lighting

7, School Lighting

8, Hospital Lighting

9, Car parking Lighting

10, Other lighing

Drawing :

LED T8 lamp SI-2 DIY energy-saving,magnetic+electronic ballasts,with CE RoHs



Part No.

Main Spec.

CA-DT83014WF2-10WR ( 600mm long )



Working power

10W±10%


Input voltage

85-265VAC


Working frequency

50-60Hz


Luminous flux

900-1000Lm


power factor

>0.95


CRI

>85


Color Temperature (CCT)

Cool white :    5700K±500K

Nature white: 4000K±400K

Warm white :  3000K±300K


PC type

PC/ Aluminum


Size

600mm*30mm


Working temperature

-20~+40°C


Storage temperature

-40~+80°C


Light Frequency

90Lm/W


Viewing angle

140 degree





Packing details :



Item No.

Tube Size

Packing Qty

Gross Weight

Carton Size(L*W*H)

CA-DT83014WF2-10WR

600mm

50pcs

25kg

632*420*220mm

CA-DT83014WF4-21WR

1200mm

25pcs

18kg

1246*215*220mm

CA-DT83014WF5-25WR

1500mm

25pc

22kg

1540*215*220mm



Caution & Warning

1.Use indoor or some place where no water.

2.Work under the fixed voltage.

3.Pls operate in the right way when you install the LED tube in case to avoid the   power harm and body harm.

4.  non-dimmable

5,  If any doubt about the installation or use of this product, consult a competent electrician or technician .
