Home > Lights & Lighting > LED Outdoor Lighting > LED Floodlight > LED Gas Station Light 80W(Explosion Proof, Corrosion Proof, Fire Proof , Water Proof, Dust Proof and Damp Proof)

LED Gas Station Light 80W(Explosion Proof, Corrosion Proof, Fire Proof , Water Proof, Dust Proof and Damp Proof)

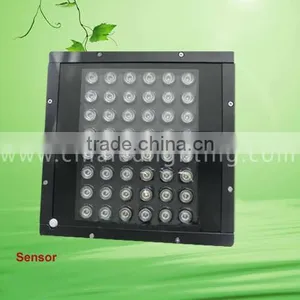

LED Gas Station Light 80W(Explosion Proof, Corrosion Proof, Fire Proof , Water Proof, Dust Proof and Damp Proof) thumbnail-1
LED Gas Station Light 80W(Explosion Proof, Corrosion Proof, Fire Proof , Water Proof, Dust Proof and Damp Proof) photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
LED Light Source:
CREE LED, 107-122lm/W
Input Voltage(V):
90-295V AC
Lamp Power(W):
100
Contact Supplier Request Quote Chat Now
Shenzhen Cina LED Lighting Tech Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source CREE LED, 107-122lm/W
Input Voltage(V) 90-295V AC
Lamp Power(W) 100
Lamp Luminous Flux(lm) 9000-10000Lm
Lamp Luminous Efficiency(lm/w) 90
Color Temperature(CCT) Other
Working Temperature(℃) -40, 50
Working Lifetime(Hour) 50000
Lamp Body Material Other, Aluminum Alloy and Tempered glass
IP Rating IP66
Certification CE, C-tick, FCC, PSE
Place of Origin Guangdong, China
Brand Name CINA
Model Number CA-CLW10-100W/ CA-CLNW10-100W

Specifications

1. LED canopy Light;
2. Original CREE LED and Meanwell driver;
3. CE, RoHS, PSE, FCC, C-TICK, ATEX, EN62471, IP66 APPROVALS

Special Feature :

 1. Quality Waterproof Driver with 5-year warranty(Taiwan Meanwell driver)


A, High EMC,no interfere
B, Power factor>0.95
C, Power Efficiency>90%

D, UL, TUV, PSE compliance

E, Full protection: short circuit , over voltage , over current and over temprature



2. High-performance Original CREE LED( Made in USA ) and perfect wiring design

Even if one led failed, the remaining LEDs will still work.



3, Safety

A, CE, RoHS, PSE, FCC, C-TICK, ATEX, EN62471, IP66

B, ATEX approved (Explostion proof )

C, IP66 approved ( Water proof )

D, EN 62471 (Photobiological Safety)

D, 4000V Hi-pot test pass





4,Low Light Loss

The light source is the low light loss and high-bright LED, in which the loss is less than 5% for every 10,000 hours. The aluminum back-side housing performs an excellent heat dissipation, which guarantees a lower junction temperature of the LED, thus slowing down light loss.



5,Environment-Friendly

While working, no ultraviolet light and infrared light radiation. And does not contain any hazardous substance, such as Lead and Mercury.



6,Anti-vibration

Solid-state device. Can withstand Moderate vibrations



7,Warranty Policy

3 years warranty with 20,000 switch cycles (on/off switching).

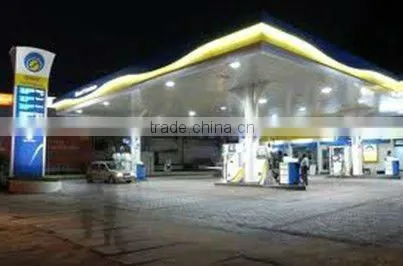

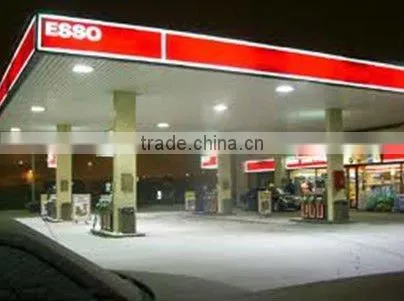

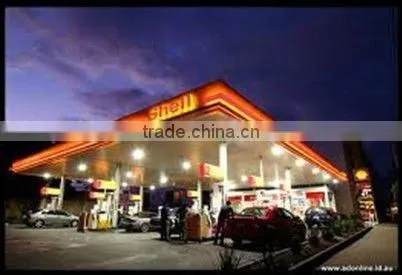

Application:





1. Petrol Stations



2. Sport Stadiums

3, Carwash Area



LED Gas Station Light 80W(Explosion proof, Corrosion proof, Fire proof , Water proof, Dust proof and Damp proof)LED Gas Station Light 80W(Explosion proof, Corrosion proof, Fire proof , Water proof, Dust proof and Damp proof)LED Gas Station Light 80W(Explosion proof, Corrosion proof, Fire proof , Water proof, Dust proof and Damp proof)





Technical Specification:







Item NO.

CA-CLW10-100W/ CA-CLNW10-100W

Replacement

250-300w Sodium/metal lamp

LED Source

CREE LED, 107-122lm/W

LED Initial Flux

9000-10000Lm

Lamp Power

100W±10%

Power Efficiency

90%

Lamp’s Efficiency

90lm/w

Luminous Flux

NW

9000-10000Lm

CW

9000-10000Lm

Luminous Uniformity

0.6

Color Temperature

NW

4000K±300

CW

5700K±500

Average CRI

NW

Ra80

CW

Ra75

Bean Angle

60 degree

Light Distribution Curve (Beam Pattern)

Asymmetric(Bat Wing )/Rectangular Beam

Input Voltage

90-295V AC

Frequency Range

47-63Hz

Power Factor (PF)

0.95

Total Harmonic Distribution(THD)

16%

Storage Temperature

-40°C--+80°C

Working Environment

-40°C--+50°C:10%-95%RH

Junction Temperature (Tj)

60°C±10%(ta=25°C)

Light Body and Lampshade Material

Aluminum Alloy and Tempered glass

Working Lifetime

50000hrs

IP Rating

IP 66

Weight

8.5kg

Product Size (mm)

300×300×80

Package Size (mm)

420×390×230(1PC)









Packing Details:







Part No.

Item Size

Packing Qty

Gross Weight

Carton Size(L*W*H)

CA-CLW10-100W

300×300×80mm

1Pcs

8.5kg

 420×390×230













Caution & Warning:

1.Use outdoor.

2.Work under the fixed voltage.

3.Pls operate in the right way when you install the LED Canopy light in case to avoid the power harm and body harm. When installing, please note the short-circuit protect such as the socket with the fuse.

4. non-dimmable

5, If any doubt about the installation or use of this product, consult a competent electrician or technician .
