Home > Instruments & Meters > Electronic Instrument > Oscilloscope > DQ1102C - Digital Storage Oscilloscope

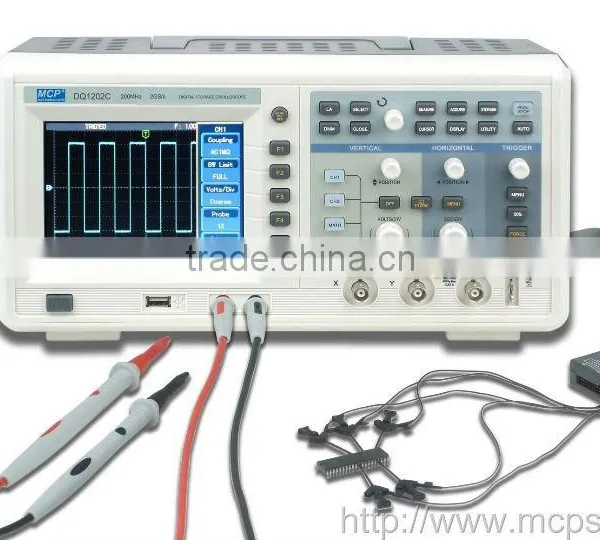

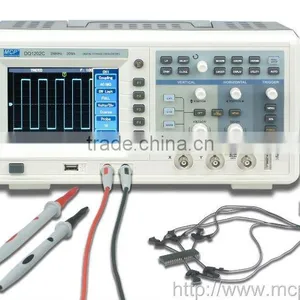

DQ1102C - Digital Storage Oscilloscope

Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

MCP

Model Number:

DQ1102C

Contact Supplier Request Quote Chat Now

Shanghai MCP Corp.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name MCP

Model Number DQ1102C

Specifications

.Support logic analyzer and multimeter
.USB-host/device, RS232 and option LAN, GPIB interface
.Digital storage oscilloscope

DQ1102C - Digital storage oscilloscope

Features:

Support logic analyzer and multimeter

2GSa/s sampling rate and 50GSa/s equivalent sampling rate

12k channel memory depth

5.7-inch color LCD display

USB-host/device, RS232 and option LAN, GPIB interface

			DQ1042C	DQ1062C	DQ1102C	DQ1152C	DQ1202C
Channels	2 external + logical analyzer + multimeter
Sampling rate	2GSa/s
Equivalent sampling rate	50GSa/s
Display	Type		5.7 rectangle color LCD
	Backlight intensity		300 nit
	Display resolution		320 horizontal × 240 vertical pixels
Vertical system	Sensitivity and accuracy		1mV/div~10V/div
	Vertical resolution		8 bit
	Width of band (-3dB)		DC (AC 5Hz) ~ 40MHz	DC (AC 5Hz) ~ 60MHz	DC (AC 5Hz) ~ 100MHz	DC (AC 5Hz) ~ 150MHz	DC (AC 5Hz) ~ 200MHz
	Selectable analog bandwidth limit		20MHz
	Rise time		≤8.7ns	≤5.8ns	≤3.5ns	≤2.3ns	≤1.8ns
	DC gain Accuracy		±5%(1mV/div) ±4%(2mV/div) ±3%(5mV/div~10V/div)
	DC measurement accuracy		±(5%+0.1div)( 1mV/div) ±(4%+0.1div)(2mV/div) ±(3%+0.1div)(5mV/div~10V/div)
Horizontal system	SEC/DIV range		2ns~50s/div(200MHz, 150MHz) 5ns~50ns/div(100MHz~40MHz), at 1-2-5 increment
	Waveform interpolation		Sin(x)/x
	Recording length		1024k
	Sampling rate and delay time accuracy		±50ppm (any time interval ≥1ms)
	Delta time measurement accuracy		Single: ±(1 sampling time interval + 50ppm×rdg. + 0.6ns) Average values: ± (1 sampling time interval + 50ppm×rdg. + 0.4ns)
Trigger system	Mode		Auto, normal, single
	type		Edge, pulse, video, alternate
	Hold off range		100ns~1.5s
Math			+, -, ×, ÷
			FFT
Acquire input	Input coupling		DC, GND, AC
	Input impedance		1MΩ ±1.5% 24pF±3pF
	Probe attenuation		1×, 10×, 100×, 1000×
	Max. input voltage		400V (DC+AC peak)
Measurement	Cursor		Voltage difference (V) between cursors Time difference (T) between cursors Reciprocal of T in Hz (1/T)
	Auto-measure		Vrms, Vavg, Vp-p, Vmax, Vmin, Vtop, Vhigh, Vlow, Vmid, Vamp; Period, Freq, Rise, Fall, +Width, -Width, +Duty, -Duty, Delay
I/O	Standard		USB(D), USB(H)
	Options		GPIB, LAN
Calibrator	Output voltage		3V (≥1MΩ load)
	Output frequency		1kHz
Logical analyzer	Input channel		200MSa/s
	Max. sampling rate		D0~D15
	Recording length		512k
	Max. input voltage		±40Vpeak
	Minimum voltage slew		1.2Vpp
	Trigger mode	Code	D0~D15, Trigger code: H, L, X Clock edge: Rise, Fall
		persist	D0~D15, Trigger code: H, L, X
			Condition: >, <, =
			Persist setup: 20ns~10s
Digital multimeter characterists	DC voltage		Range: 400.0mV/4.000V/40.00V/400.0V Accuracy: ± (1%+5digits)
	AC voltage (40Hz~400Hz)		Range: 400.0mV/4.000V/40.00V/400.0V Accuracy: ± (1.2%+5digits)
	Resistance		Range: 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ Accuracy: ± (1.5%+5digits)
	On/off		<70.0Ω
	Diode		Forward voltage drop 0.5~0.8V
	DC current		Range: 4mA/40mA/400mA accuracy: ± (1%+5digits) Range: 4A accuracy: ± (1.5%+5digits)
Power source			100~240VACrms, 45~440Hz; 50VA Max; CAT
Dimensions (W×H×D)			320×150×130
Weight			2.5kg
Accessories			Operation manual, adapter, probe×2, multimeter pen×2, current-voltage convertor module×2,
