BR3817A - Lcr Tester

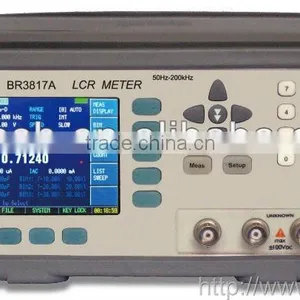

BR3817A - Lcr Tester thumbnail-1

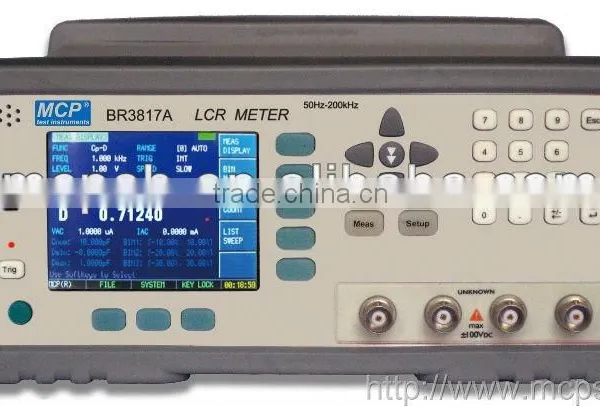

BR3817A - Lcr Tester photo-1
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MCP
Model Number:
BR3817A
Contact Supplier Request Quote Chat Now
Shanghai MCP Corp.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name MCP
Model Number BR3817A

BR3817A - LCR METER



Features
.Programmable signal frequency from 50Hz to 100kHz with 16 points
.Programmable signal voltage level from 10mVrms to 2.0Vrms with 0.01V by step
.7 test parameters
.3-line VFD display
.High performance and low cost.
.20 files and 14 bins comparator function
.Easy operation



Technical Data BR3817A
Test parameters L-Q, L-R, C-D, C-R, R-Q, |Z|-θ
Accuracy 0.05%±5digits
Test frequency 50Hz, 60Hz, 100Hz, 120Hz, 200Hz, 400Hz, 500Hz, 1kHz,
2kHz, 4kHz, 5kHz, 10kHz, 20kHz, 40kHz, 50kHz, 100kHz
Test level 0.01Vrms~2Vrms
Test resolution 0.01Vrms
Output impedance 30Ω, 50Ω or 100Ω
Measurement range |Z|,R 0.0001Ω~99.999MΩ
C 0.0001pF~99999µF
L 0.0001µH~99999H
D,Q 0.00001~999999
θ(DEG) -89.999°~89.999°
θ(RAD) -3.1416~3.1416
% -99999%~99999%
Measurement speed (time /sec) slow: 4 medium: 9 fast: 25
Equivalent circuit Series / Parallel
Ranging mode Auto/Hold
Trigger mode internal/external, manual and long-distance
Averaging rate 1~99
Correction functions open/short and sweep corrections
Measurement terminals Five terminals
Display mode direct, ABS, %, D, Q, |Z|, Vm, Im, θ, bin number and bin counter
Display digits primary display: 5 digits, secondary display: 6 digits
Comparator function 20 files and 14 bins, P1~P9, AUX, NG, PHI, PIN, PLO
Interface RS232C, HANDLER and USB (option)
Display 4 colors VFD display
Power supply 110~127VAC±10%/220~240VAC±10%, 50Hz±2Hz/60Hz±2Hz
Weight 5kg
Dimensions (WxHxD) 264mm x 350mm x 107mm
