Home > Instruments & Meters > Meter for Electricity > Resistance Meter > DIT5104 - DIGITAL INSULATION RESISTANCE TESTER/insulation Resistance Tester Insulation Resistance

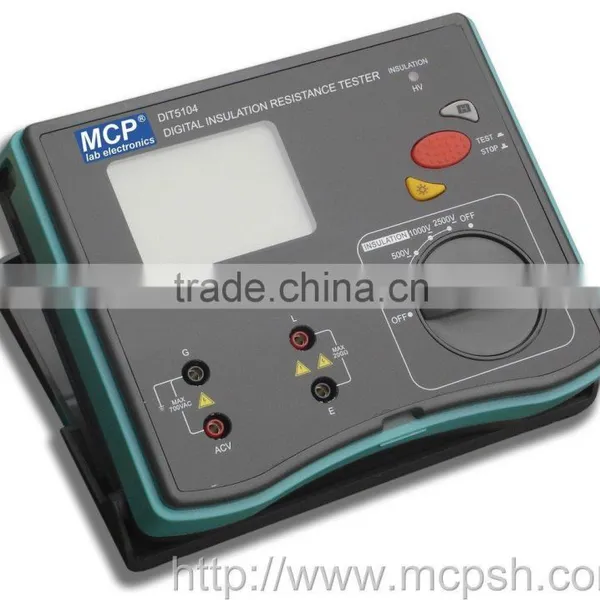

DIT5104 - DIGITAL INSULATION RESISTANCE TESTER/insulation Resistance Tester Insulation Resistance
Negotiable
MOQ: 4 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
MCP
Model Number:
DIT5104
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DIT5105 - DIGITAL INSULATION RESISTANCE TESTERNegotiableMOQ: 4 Pieces -
MCP TM801 DIGITAL TIMERNegotiableMOQ: 2 Pieces
-
MCP TM808 DIGITAL TIMERNegotiableMOQ: 2 Pieces
-
MCP ELD8500N - High Performance DC Electronic Load 300W /programmable dc Electronic LoadNegotiableMOQ: 5 Pieces
-
MCP ELD8512N - High Performance DC Electronic Load 300WNegotiableMOQ: 5 Pieces
Place of Origin
Shanghai, China
Brand Name
MCP
Model Number
DIT5104
Display Type
Digital Only
Measuring Range
0.1MΩ~20GΩ
Testing Voltage
250/500/1000V
Accuracy Class
±(3% Rdg +5digits)
Dimensions
190(W)x75(H)x155(D)mm
Specifications
.Multi Test Voltage.Auto range
.LCD background light
.Data hold
.INSULATION RESISTANCE TESTER
DIT5104 - DIGITAL INSULATION RESISTANCE TESTER
Features
.Multi Test Voltage
.Auto range
.LCD background light
.Data hold
.Working LED indicator
.Low battery warning
.Function symbol display
.AC Voltage Test
| Technical Data | DIT5104 | DIT5105 | |
| Test Voltage | 250/500/1000V | 250/500/1000/2500V | |
| Insulation Resistance | 0.1MΩ~20GΩ | ||
| Accuracy | ±(3% Rdg +5digits) | ||
| Resolution | 0.01MΩ | ||
| AC Voltage Test | Range | 700VAC | |
| Accuracy | ±(3% Rdg +5digits) | ||
| Power Source | 1.5V alkaline battery(AA)x8 | ||
| Dimensions | 190(W)x75(H)x155(D)mm | ||
| Weight | 900g | ||
| Accessories | one set standard earth test leads, one carry case | ||
