Specifications
.Digital programmable operation and 4 digits blue LED display.5 groups setting memory
.PROGRAMMABLE DC POWER SUPPLY

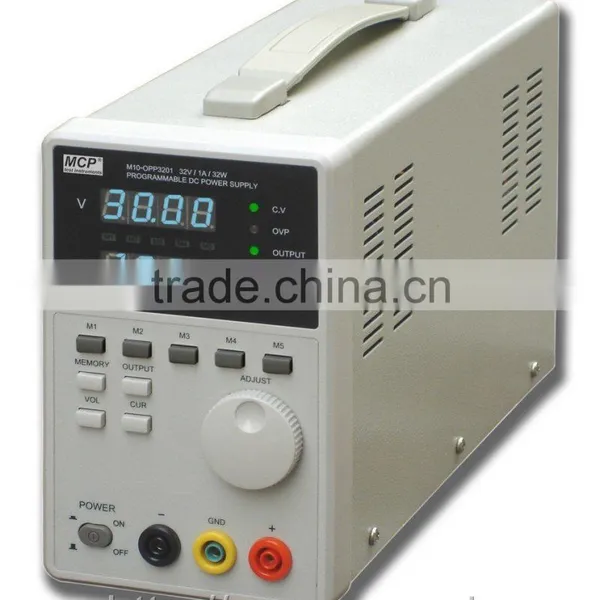

M10-OPP3203 - PROGRAMMABLE DC POWER SUPPLY
Features
.Digital programmable operation and 4 digits blue LED display
.5 groups setting memory
.High resolution 10mV, 1mV programmable interface
.High stability, low drift, low ripple
.OV, OC, OT protection
.Software calibration
.USB interface
.Intelligent fan control
Specifications
.Line Regulation: CV≤1X10-4+3mV CC≤1X10-4+3mA
.Load Regulation: CV≤3X10-4+5mV CC≤2X10-3+2mA
.Ripple & Noise:CV≤1.0mVrms CC≤1.0mArms
.Resolution: Set value resolution: CV10mV, CC1mA Measuring value resolution: CV10mV, CC1mA (during a year, 25°C±5°C)
.Response Time: Voltage up: no load 2ms~15ms; full load 2ms~8ms Volage down: no load 1.5s~300ms: full load 100ms~10ms
.Display Accuracy: CV≤0.1%Rdg+2digits, CC≤0.1%Rdg+5digits
.Input Voltage: 110~127VAC±10%/60Hz, 220~240VAC±10%/50Hz, Switchable
.Dimensions: 110(W)x160(H)x260(D)mm
| Model | Output Current | Output Current | Protection Voltage | Weight (kg) |
| M10-OPP3201 | 0~32V | 0~1A | 0~33V | 7.7 |
| M10-OPP3203 | 0~32V | 0~3A | 0~33V | 8 |
| M10-OPP3205 | 0~32V | 0~5A | 0~33V | 8.3 |
