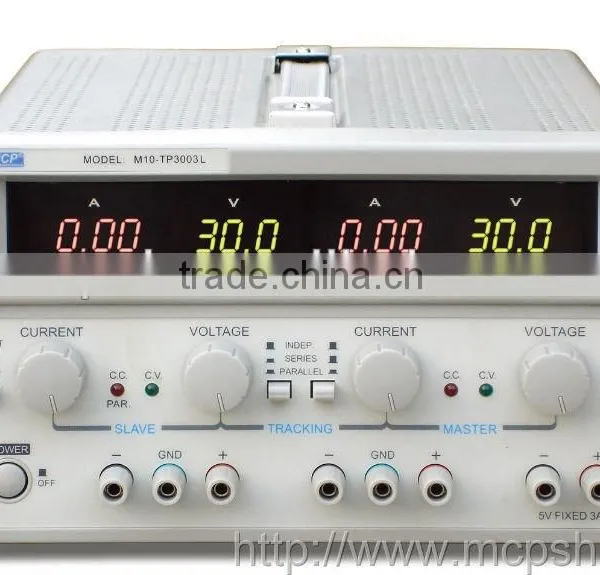

M10-TP3003L - Linear dc Power Supply

M10-TP3003L - Linear dc Power Supply thumbnail-1
M10-TP3003L - Linear dc Power Supply photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Brand Name:
MCP
Model Number:
M10-TP3003L
Contact Supplier Request Quote Chat Now
Shanghai MCP Corp.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name MCP
Model Number M10-TP3003L
Output Power Other, 101 - 200W, 185VA
Output Type Triple
Input Voltage Other, 110V or 220VAC, 110~127VAC±10%,220~240±10% Switchable
Output Voltage 0~30V*2/5VDC
Output Frequency DC
Output Current 0~3A*2/1A

Specifications

laboratory DC power supply
. output off function
. new panel design
. two adjustable & one fixed output

M10-TP3003L - laboratory DC power supply



Features:
. output off function
. new panel design
. two adjustable & one fixed output

. cooling with the fan at back (M10-TP3005L)









Specifications:

. output voltage:               0~30V×2/5V

. output current:               0~3×2/1A

. line Regulation:              CV 1×10-4+3mV  CC 2×10-3+3mA

. load Regulation:             CV 1×10-4+2mV  CC 2×10-3+3mA

. ripple & Noise:               CV 0.5mV rms     CC 3mA rms

. display Accuracy:          Voltmeter±(0.2%Rdg+2digits)

                                      Ampmeter±(1.0%Rdg+2digits)

. input Voltage:                110~127VAC±10%,220~240±10%     Switchable

. dimensions(W×H×D):  260×160×310mm

. weight:                          7kg
