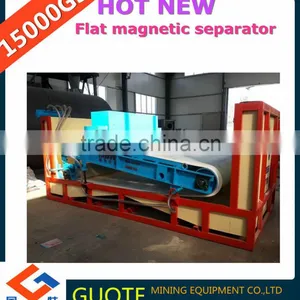

China manufacturer mineral processing GTGB series High Gradient Strong magnetic Magnetic Separator for Non-metallic minerals
Annie Chang | Sales Manager
Dongjing Road East, Cell/ WhatsApp: +86 13356713809
Economic Development Zone, Wechat/zalo:+86 13356713809
qingzhou city , 262500, China Mail: yujuan391@163.com
Weifang Guote Mining Equipment Co., Ltd
We use the best quality, most favorable price, timely delivery period and the best after-sales service to meet every customer is our only aim.

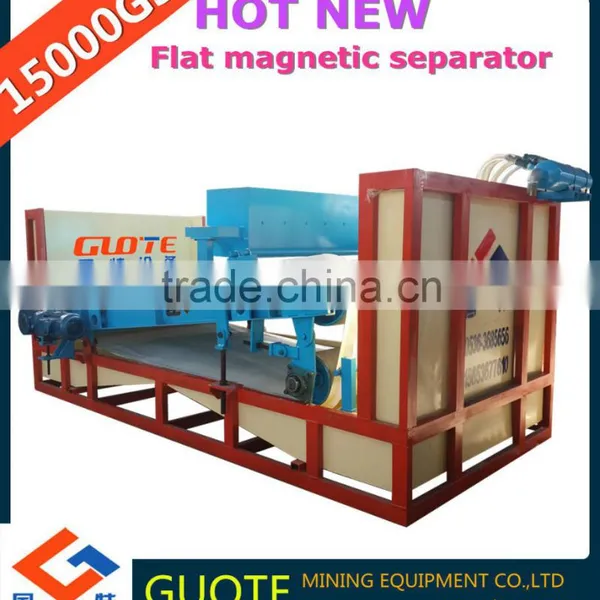

Plate Type High Gradient Wet Magnetic Separatorfor Dolomite, Quartz, etc wet nonmetallic ores eliminated iron
A summary:
This product is our latest research and development of high gradient and high intensity magnetic separation equipment. It is mainly used to 1.2 mm fine non-metallic minerals, such as quartz, feldspar and nepheline. Kaolin iron impurities removing purification, can also be used in red iron ore (hematite, limonite and siderite, etc.), manganese ore, ilmenite, wolframite variety of weak magnetic ore wet separation and black and white tungsten separation, black tungsten and tin separation.
GTGB-Series high gradient magnetic separator is a new product developed independently by GUOTE. It combines the characteristics of international advanced high intensity magnetic separators, which is so far the high intensity magnetic separator of best performance and most advanced technology.
It has the advantages of large beneficiation ratio, high security and convenient operation etc. This product realizes both high beneficiation ratio and high recycle ratio in separating weak magnetic minerals.
Frist ,Features of GTGB series plate High Gradient Magnetic Separator:
Technical characteristics:
1, the magnetic circuit design is unique, the magnetic field intensity is high, the surface magnetic field strength can reach 14000GS
2, compared to the other permanent magnetic separation of the magnetic field, the magnetic separation effect is better.
3, compared to other high gradient magnetic separator energy saving, power saving.
4, the structure is simple, reasonable, easy to use, low maintenance rate.
This product is our latest research and development of high gradient and high intensity magnetic separation equipment. It is mainly used to 1.2 mm fine non-metallic minerals, such as quartz, feldspar and nepheline. Kaolin iron impurities removing purification, can also be used in red iron ore (hematite, limonite and siderite, etc.), manganese ore, ilmenite, wolframite variety of weak magnetic ore wet separation and black and white tungsten separation, black tungsten and tin separation.
Third, Technical parameter of GTLH series Vertical Ring High Gradient Magnetic Separator:
| Model | Capacity of Material Processing t/hour |
Effective Field Strength≥GS |
concentration of the slurry | Belt speed/min | power kw | long | wide | high |
| GTGB-612 | 8-10 | 15000 | 10-30% | 2-8 | 1.1 | 1200 | 600 | 1580 |
| GTGB-815 | 10-15 | 15000 | 10-30% | 2-8 | 1.1 | 1500 | 800 | 1620 |
| GTGB-1020 | 15-20 | 15000 | 10-30% | 2-8 | 1.5 | 2000 | 1000 | 1620 |
| GTGB-1225 | 20-25 | 15000 | 10-30% | 2-8 | 2.2 | 2500 | 1200 | 1650 |
| GTGB-1530 | 25-30 | 15000 | 10-30% | 2-8 | 3 | 3000 | 1500 | 1680 |
| GTGB-2035 | 30-35 | 15000 | 10-30% | 2-8 | 4 | 3500 | 2000 | 1680 |
| GTGB-2240 | 35-40 | 15000 | 10-30% | 2-8 | 5.5 | 4000 | 2200 | 1700 |
The technical parameters of quartz sand as the reference data, different materials can be selected according to the actual situation.
Fourth,working principle :
Pulp through a pipe into the separator feed distributor, after scattered uniformly dispersed in the magnetic portion of the board unloading iron belt. Pulp flows downwards under gravity tilt direction of the magnetic board, pulp ferromagnetic material in a magnetic field strong force plate was firmly adsorbed unloading iron belt, unloading iron belt motor driven along the magnetic plate above oblique rotation, while the adsorbed material into the ferromagnetic iron unloading area. Ferromagnetic material in the rinse water bucket flush into the tailings are collected, non-magnetic slurry flows downward along the magnetic plate, flows into concentrate bucket.

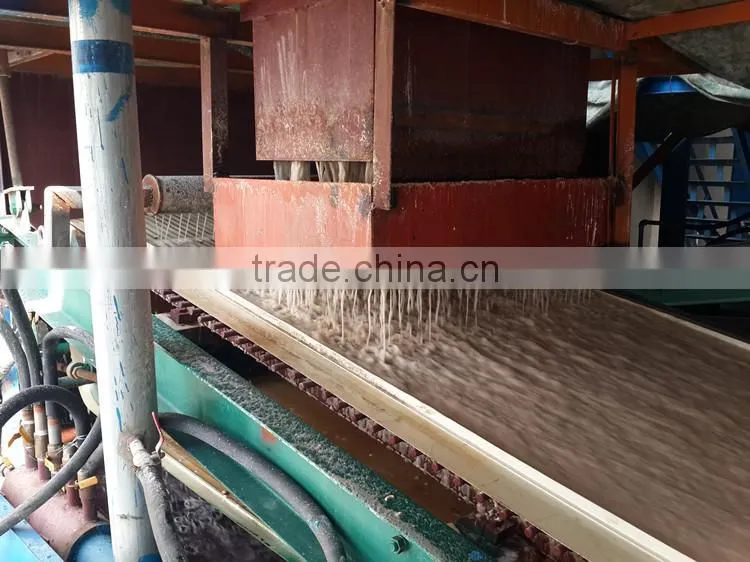

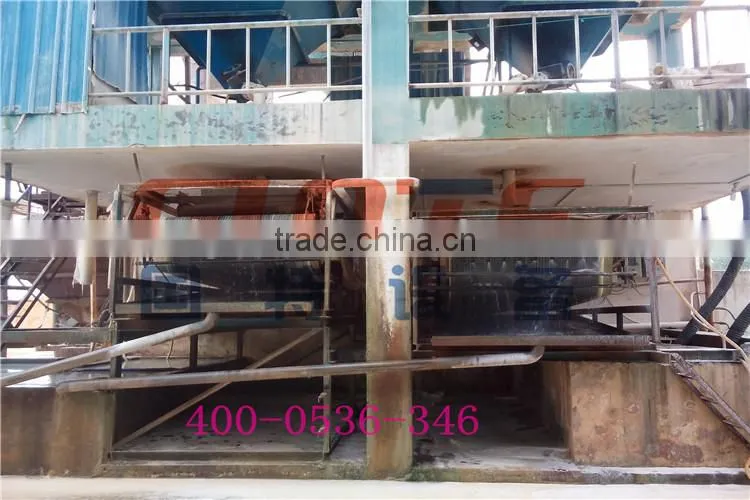

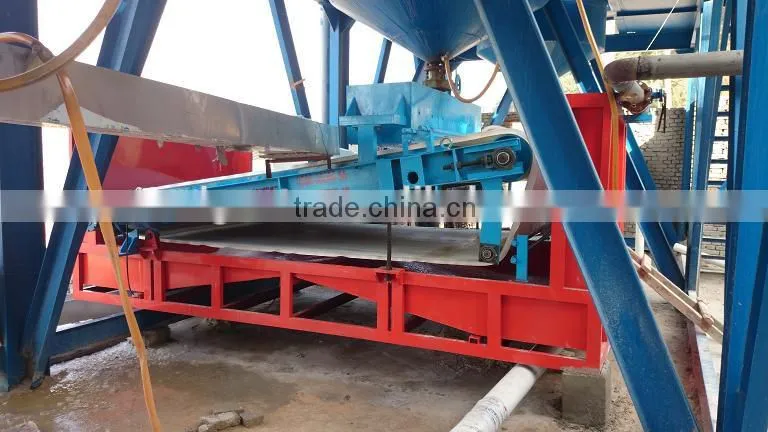

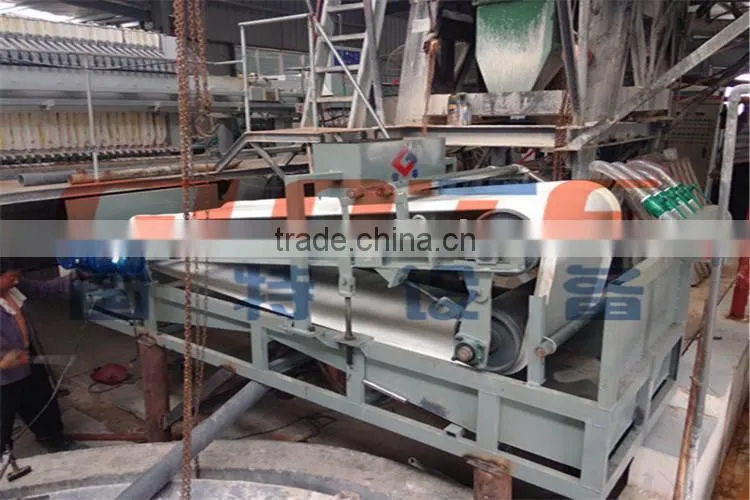

Fifth , Equipment scene photos of GTGB series plate High Gradient Magnetic Separator:
Project Case

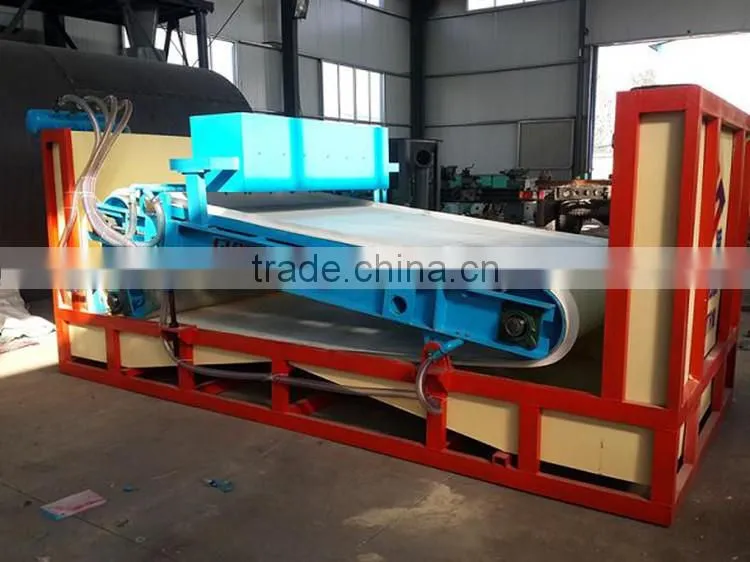

1.Equipment painting completed before shipment, With Stretch film to avoid rub off the surface paint, It can used wooden cases packaging according to users requirements.(Key parts such as electric cabinet with shockproof packaging material and then packed in wooden cases. )
2. We have 15 experienced engineers, With 108 skilled workers insure good quality of our machines and prompt delivery.
3.Meanwhile our company has a long-term cooperation with ACL, CSCL, CCNI,CNC, COSCO etc insure the goods to the port on time
Our service
1. Our engineers can work separately according to the requirements of design for clients of the equipment. and send a customer confirmation to help customers to save costs.
2. During the manufacture of the equipment, we photograph product production progress, and sent to the customer to track the progress.
3. The goods hair go, we will send the original documents for the customer (such as packing list, bill, CO, Form E, Form A, Form F, Form M, B/L etc.)
4. We can provide customers with free English foundation drawing, installation drawings, manuals, maintenance manuals and parts drawings.
5. We can send our engineers to installation and debugging overseas, and free training of operators and maintenance workers.
6. We have a set of After-sales service system, A ID will be sent to each customer, they can log in this system that view all information to buy equipment and parts by it. We provide 24-hour online consultation.
1. During the installation and commissioning, we shall send our technician to the site for guiding the installation and commissioning.
2. During the installation and commissioning, we offer training service
3. The quality assurance date is one year after commissioning.
4. If the equipments appear the equipment failure because of improper handling of user, we are in charge of maintenance, and collect the appropriate cost.
5. We offer the components with favorable price, perdurable maintenance. After quality assurance date, if the equipments need to be repaired, we only collect the cost price.
