Specifications
Fingerprint (IC) access control readercapacity:1500
Record capacity:100000
TCP/IP,RS232/485

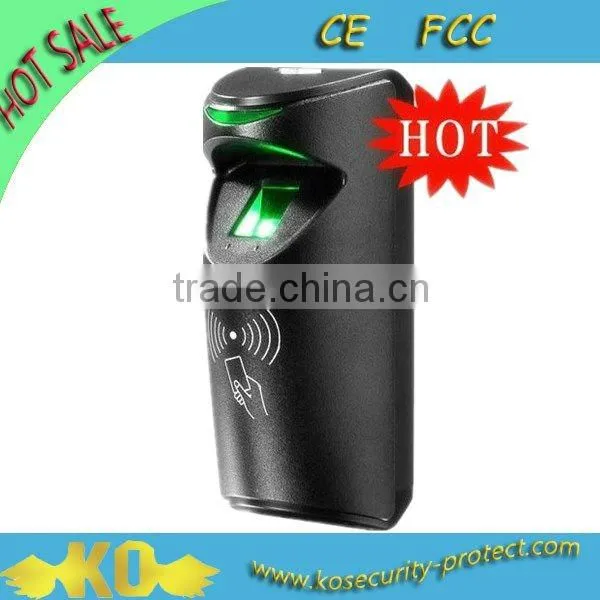

Fingerprint (IC) access control reader KO-F11
Features
·Fingerprint reader with durable and highly accurate optical sensor
·1 touch a-second user recognition
·Stores 1,500 templates and 10,000 cards
·Reads Fingerprint and/or Card
·Optional integrated smart card reader
·Built-in Serial and Ethernet ports
·Tamper-proofs switch and alarm outputs
·Request-to-exit and alarm contacts
·Real-time 1-touch data export 3rd party hosted & non-hosted applications
·Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Technical Specifications
Fingerprint Capacity |
1500 templates |
ID card Capacity |
10,000 |
Transaction Capacity |
N/A |
Hardware Platform |
ZEM500 |
Sensor |
Optical Sensor |
Algorithm Version |
Finger v9.0 |
Communication |
RS232/485, TCP/IP |
Access Control Interface for |
3rd party electric lock, exit button, alarm |
Wiegand Signal |
Output |
Optional Functions |
IC |
Display |
N/A |
Power Supply |
12V DC |
Operating Temperature |
0°C- 45°C |
Operating Humidity |
20%-80% |
Dimension(W*H*D)mm |
66.4*153.5*61 |
Net Weight |
0.7kg |
