Specifications
1. high voltage XLPE cable2. XLPE insulated
3. PVC sheathed power cable
4. resistance against corrosion, heat-aging...

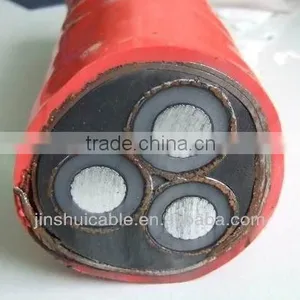

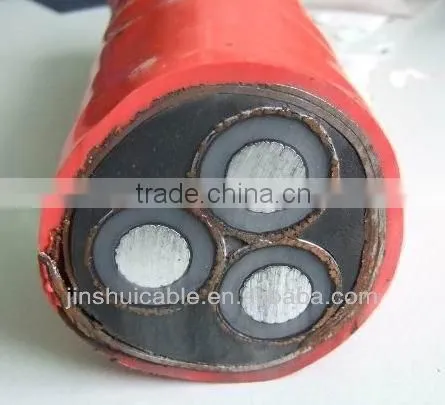

18/30kv XLPE Cable High Voltage and Good Quality
Specifications
3.6/6kv,6/6kV,6/10kV,8.7/10kV, 8.7/15kV,12/20kv, 21/35kV, 26/35kV.GB/T12706-2002 standard(The same as IEC60502).power cable
Electric Cables:
CU Conductor PVC Insulated PVC Sheathed Power Cable
1. The applications: Rated voltage (U0/U) 0.6/1kv 8.7/15KV 26/35kV in transmission & transformation line & for water-proofing purpose .
2. Standards: 60502IEC ISO9001
3. Product features:
1) No necessary to heat up in advance while installing above 0oC.
2) Max. continuous normal operating Temperature: 90oC (PVC Sheathed cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Detailed Description
Our company can produce both flame retardant and non-flame retardant series of XLPE power cable.. Our products can be produced according to our works specifications which are equivalent to GB12706, IEC60502, IEC60332, IEC60754, and its some indexes are superior to standards stated above..
The flame-retardant cable covers all kinds of low-smoke low-halogen, low-smoke halogen free and three classes of A, B, C. We can design and manufacture special XLPE cable according to the other standards require by the customers, such as heavy section cut part conductors, water-resistant, defend termites, defend mouse, and so on..
Type |
No. of Cores |
Nominal Cross-Section of Conductor(mm2) |
|
YJV YJLV YJV YJLV YJV22 YJLV22 YJV23 YJLV23 YJV32 YJLV32 YJV33 YJLV33 YJV42 YJLV42 YJV43 YJLV43 ZR-YJV ZR-YJLV ZR-YJY ZR-YJLY ZR-YJV22 ZR-YJLV22 ZR-YJV23 ZR-YJLV23 ZR-YJV32 ZR-YJLV32 ZR-YJV33 ZR-YJLV33 ZR-YJV42 ZR-YJLV42 ZR-YJV43 ZR-YJLV43 |
1 |
1.5--1000 |
|
2 3 4 5 |
1.5--400 |
|
|
3+1 4+1 3+2 |
2.5--400 |
