Specifications
1. Best Price;2. Flow : 3 m3/hr ;
3. Head : 40-70 m;
4. New designed ,high efficecy;

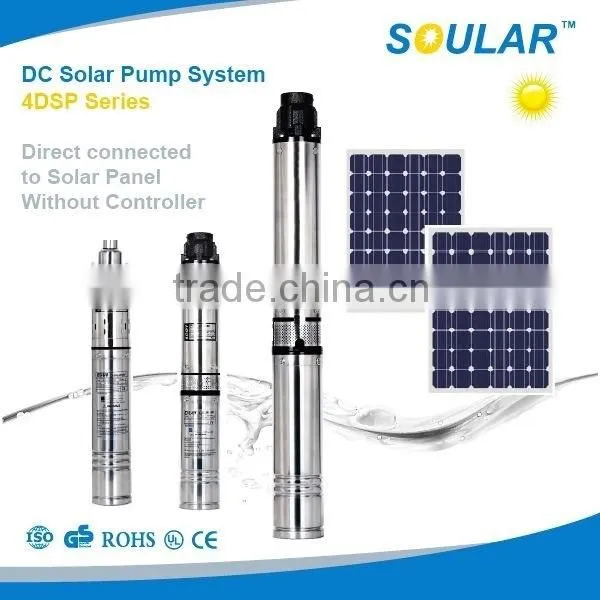

Centrifugal Solar Pump ( no need Controller )
DSP / DQG series solar pump is designed as DC brush motor driving pump impellers, by onnecting to solar panels direcly.The power from solar panels can drive pump.This type pump is most popular in the areas, where lack of electricity or strict requirement for environmental protection.
DSP / DQG series pump is suitable to pump and drainage water, which doesn't need controller. moreover, the installation is very simple.This type pump is mainly applied in the field of power plants, steel mills, mining, chemical, fire, water plants, agricultural irrigation and other industries.
| Model | Voltage (V) | Power (W) | Max. Flow (M³/h) | Max. Head (m) | Outlet (in) | Dimension (mm) | Weight (kg) |
| 4DSP3/30-30/250W | 18-40 | 200-400 | 3 | 30 | 1.25'' | 96*800 | 10 |
| 4DSP3/50-50/500W | 42-80 | 400-600 | 3 | 50 | 1.25'' | 96*900 | 11 |
| 4DQG2/40-30/250W | 18-40 | 200-400 | 2 | 40 | 1'' | 96*560 | 8 |
| 4DQG2/60-50/500W | 42-80 | 400-600 | 2 | 60 | 1'' | 96*560 | 8.5 |
Centrifugal DC Pump Head & Flow Performance
Screw DC Pump Head & Flow Performance
DC Solar Pump Installation
1. Connecting a longer cable to the pump positive negative terminal (black) and positive terminal (red). The cable length will be designed as actual requirement, but make sure not to connect too long cable ,since the DC motor efficiency will be decrease during the super long cable. It is also suggested that at least 3mm2 or 4mm2 cable to connect onto the pump. Finally, please confirm that the cable connectors is water proof and best seal.
2. Before you start wiring the pump to the solar panel. The pump needs to be submersed in water for at least 15 minutes before power is applied. Water is the lubrication for the pump and if it is not “preconditioned” properly the bearings will not be adequately lubricated. This will result in premature wear and failure of the pump and will refused the warranty.
Solar Panel Design ( Not Unique, just recommend )
For pump of 30V,250W, solar panel is :
Solar Panel : 2PCS in series, Power : 150W, VOC : 21.5V; VM : 17.8V;
For pump of 50V, 500W,the connection way
Solar Panel : 4 PCS in series, Power : 150W, VOC : 21.5V; VM : 17.8V;
1. warranty : 5 years;
2. It is also accepable tp provide the free accessories after the warranty, but clients need to pay for the transportation cost;
Packages Declaration :
1. All of our goods are packed by the standards wooden cartons complied with the exportation requirement;
2. cartons more than 100 pcs can also packed by wooden pallet;
SOULAR®' brand is hold by Hangzhou Soular Industry Group Co.,Ltd (the sales department registered as Hangzhou Beichen Soular Imp.& Exp. Co., Ltd. ), which specializes in manufacturing and exporting water pumps for industrial, residential and agricultural application. Our range includes DC Solar Pump, Deep Well Submersible Pump, Conventional Submersible Pump, Circulating Pump, Peripheral Pump, Centrifugal Pump, Self-priming JET Pump, Multi-stage Pump, Gardening Pump, etc.

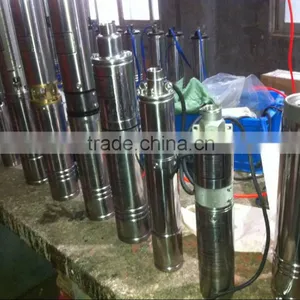

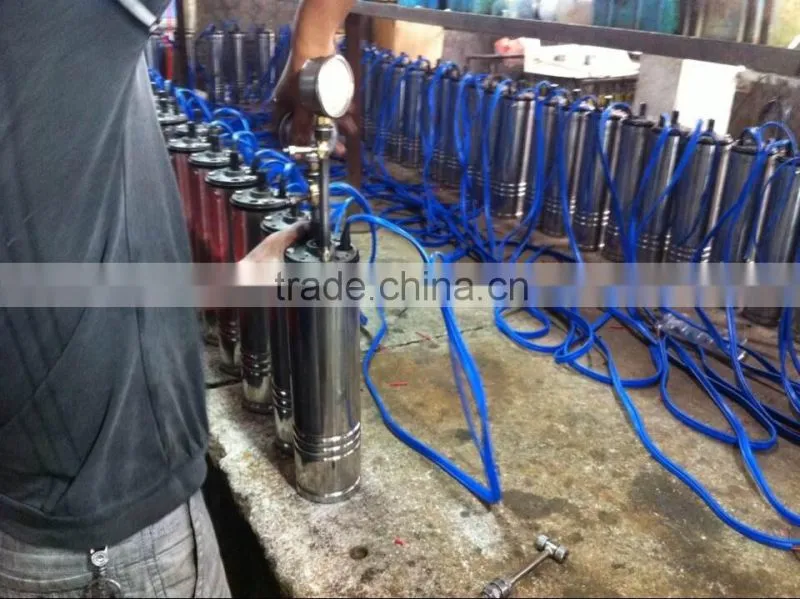

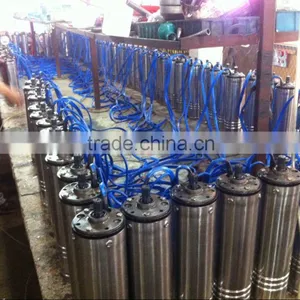

PRODUCTION :
We have 30 years of pump manufacturing experience, obtained production permit, ISO9001 quality management system certificate and ISO14001 environmental management system certificate, CCC certificate, GS certificate, TUV Certification, UL certificaiton, CEC Certification, Rohs Certification, CE certificate etc. Our products have been sold to more than 50 countries, which located in Southeast Asia, Middle East, Europe, North Africa, Australia and Latin America. Due to excellent quality and reasonable price, our products are more and more popular in these Markets.
MARKET :
During the development, our company focuses on the introduction and cultivation of talents. With the dedicated research and development center, we also cooperate with many scientific research institutions and colleges and universities to insure the input of the research and development of new products. The solar submersible pump series of independent research and development have exported to many countries like the USA, Australia, etc., receiving wide acclaim.
Welcome OEM & ODM !
1. We need your solar pump catalogue ?
Answer : before we answer your question, please inform us :
how many m3 /hr water do you need?
what is vertical height height needs to be lift for the water ?
what is the horizon distance for transmitting the water ?
2. We need your pricelist for all the models ?
Answer : we dont present "pricelist" for a new customers, Because different pump material , different order quantity has different pricelist; right now, we can produce as metal , stainless steel 201, stainless steel 304, stainless steel 316 material for different market requirement around the world.
Attn. : You can just inform us your "target price" and detailed requirement , we will evaluate if we can produce for you.
3. We need to order some samples in first trial order ?
Answer : The M..O.Q. is 500pcs;
NOTE : Please reply us for all the above question when you plan to give us inquiry , otherwise your iqnuiry will be ingnoured or not focused on.
