Specifications
1. Warranty : 5 years;2. MPPT Controller ;
3. DC Motor for Solar Power;
4. Strong Casting Stainless Steel 316 material;

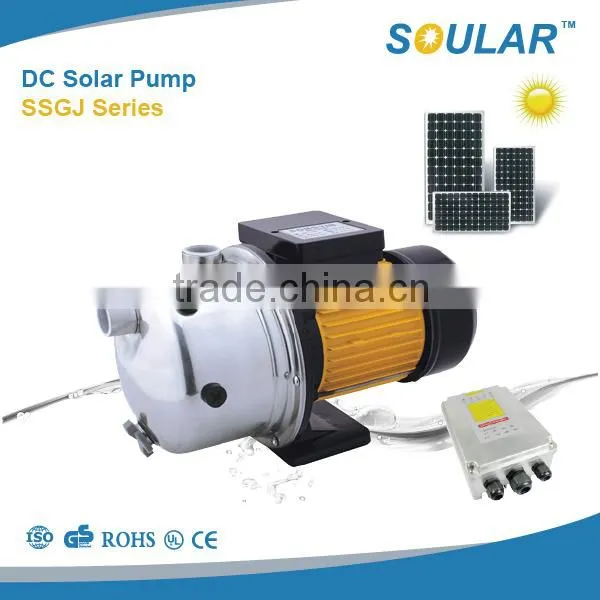

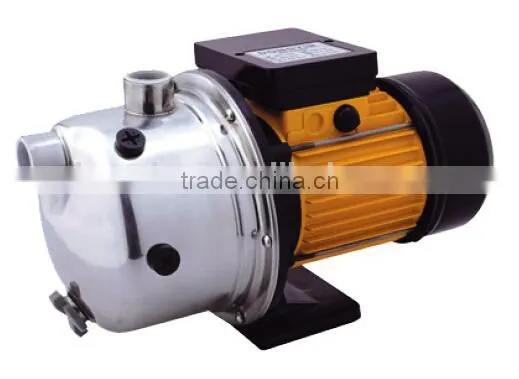

DC Surface Automatic Solar Pump for Garden
(SSGJ)
DC Surface Solar Water Pump :
It can be used to transfer clean water or other liquids similar to water in physical and chemical properties. It is suitable for small living water supply, automatic water sprinkler system, small air conditioner system or supporting equipment etc.
2.Technics innovation : Adopt double plastic package for rotor and stator, motor insulation>300MW, the motor security was much improved.
3.Structure innovation : Oil filling, convenient installation and environmental protection

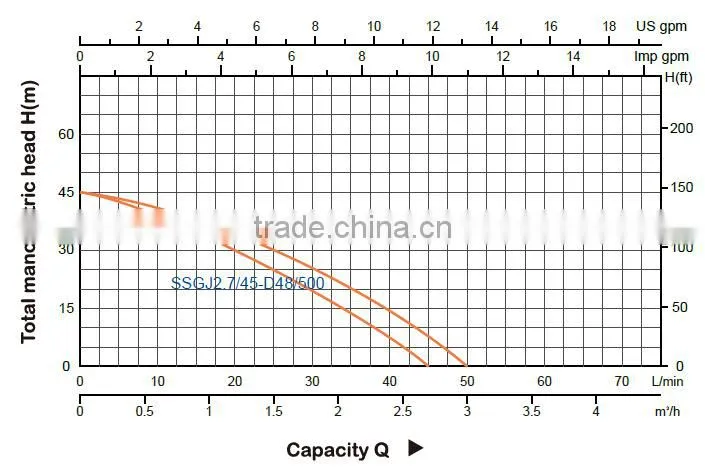

| Model | Impeller | Voltage | Power | MAX. Flow L/Min | MAX Head (M) |
MAX. Suct (M) |
Inlet/Outlet (IN) |
Outer Diameter (MM) |
| V | W | |||||||
| SSGJ2.7/45-D48/500 | Brass | 42-63 | 210-700 | 45 | 40 | 9 | 1"x1" | 395*205*205 |
| SSGJ3.0/45-D72/750 | Brass | 42-88 | 270-1000 | 50 | 45 | 9 | 1"x1" | 395*205*305 |
The Solar pumpsystem Including : Pump , Controller / Inverter , soalr panels, water level sensors, cabels, solar panel bracket (customers can order bracket in your local place), and other spared parts;
Solar Pump
We can produce more than 8000 set solar pump system each month, and more quantity if the DC submersible pump;
We have finished hundrends of Solar pump system in more than 40 countries about the world, by cooperating with our distinguished disctributors and and local agricaltural mistration around the world.
Packages Declaration :
1. All of our goods are packed by the standards wooden cartons complied with the exportation requirement;
2. Solar panel packages or the cartons more than 100 pcs can also packed by wooden pallet;
1. solar panel : 25 years;
2. pump : 5 years;
3. controller / Inverter : 1 year;
4. It is also accepable tp provide the free accessories after the warranty, but clients need to pay for the transportation cost;
1. We need your solar pump catalogue ?
Answer : before we answer your question, please inform us : how many m3 /hr water do you need? also inform us your requirement for distance for H1 =? , H2= ?, H3= ? , H4 = ? ;
2. We need your pricelist for all the models ?
Answer : we dont present "pricelist" for a new customers, Because different pump material , different order quantity has different pricelist; right now, we can produce as metal , stainless steel 201, stainless steel 304, stainless steel 316 material for different market requirement around the world.
Attn. : You can just inform us your "target price" and detailed requirement , we will evaluate if we can produce for you.
3. We need your pricelist for whole pump system inclduing solar panel ?
Answer : we commonly make quotation only for pump , controller, inverter, and water level detectors, not included solar panels.
we only make total system quotation after you confirmed to order from us, since we are super busy and it takes long time to design the solar panel connection and calculated the price;
4. How many solar panels do we need for the pump ?
Answer : To design & calculate the perfect solar panel connection, you have to take concerned pump power, pump voltage, pump current requirement, we will design for you after you confirmed the order.
5 . Our common questions for the new customer's inquiry :
(1) How many pcs pump system do you need ?
(2) Do you need total system inclduing solar panel or just pump and controller ?
(3) Which transportation way will you select ? by air ? by Sea ? or by Door to Door express? (please inform us postal code in you need express);
NOTE : Please reply us for all the above question when you plan to give us inquiry , otherwise your iqnuiry will be ingnoured or not focused on.
