Specifications
300KW Shangchai diesel genset1 Low consumption
2 Low noise
3 With CE/ISO9001
XiaMen huadong machine equipment CO,LTD

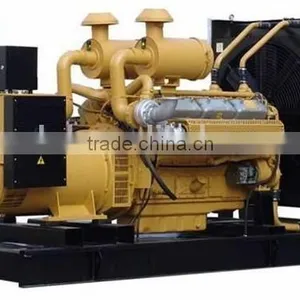

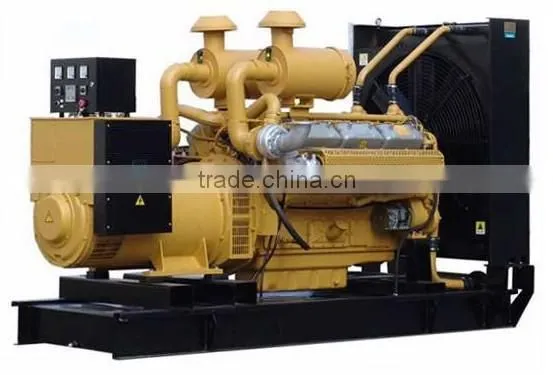

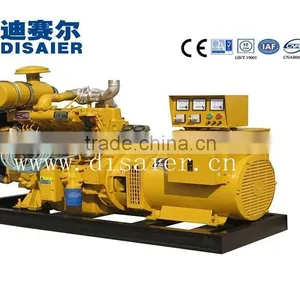

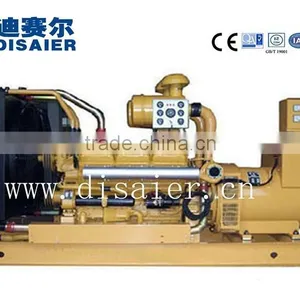

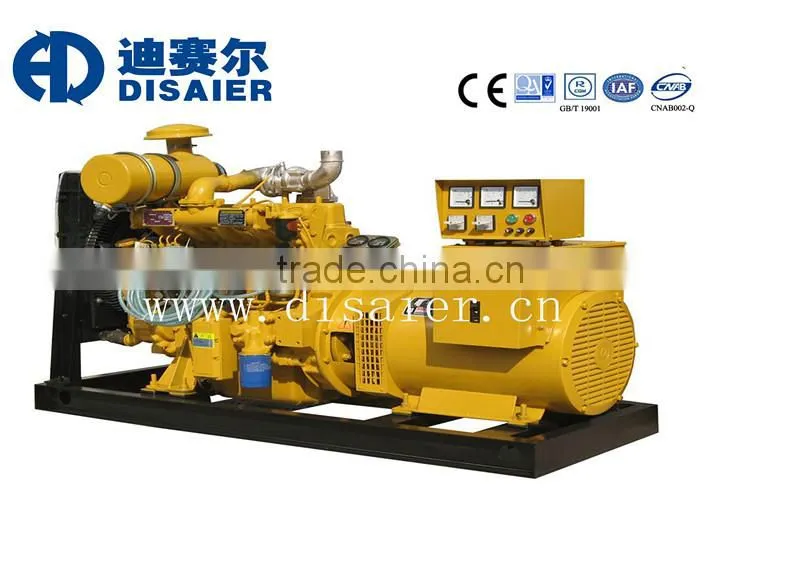

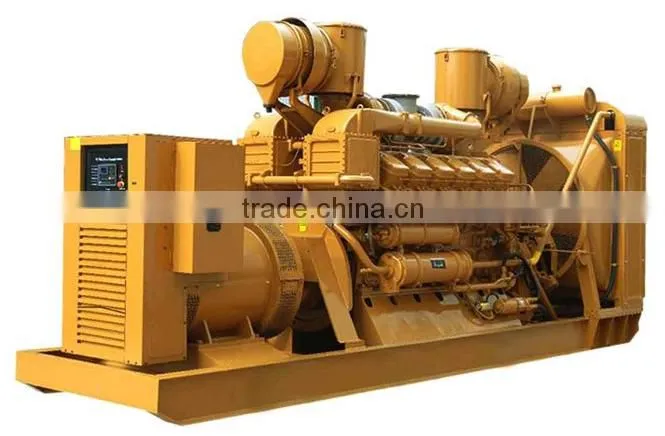

300KW Shangchai diesel genset
Engine:Shangchai
Alternator:Engga,Leroy somer,Stamford,Marathon for your choice
Control system:DSE5100,DSE5110,DSE5500G for your choice
The following is the specification of Shangchai diesel generators:
| Genset modle |
Rated power kw/kva |
Standby power kw/kva |
Engine modle | Fuel consumption g/kw.h |
Diemnsion L*W*H mm |
Weight kg |
| HDM275/HDM300E | 220/275 | 240/330 | D0836LE203 | 194 | 2850*1115*1548 | 1750 |
| HDM375/HDM413E | 300/375 | 330/413 | D2866LE201 | 205 | 3100*1200*1850 | 2500 |
| HDM400/HDM438E | 320/400 | 350/438 | D2866LE203 | 206 | 3100*1200*1850 | 2500 |
| HDM438/HDM475E | 350/438 | 385/481 | D2876LE201 | 207 | 3200*1135*1954 | 2760 |
| HDM500/HDM550E | 400/500 | 440/550 | D2876LE203 | 208 | 3200*1135*1954 | 2790 |
| HDM563/HDM625E | 450/563 | 500/625 | D2840LE201 | 204 | 3140*1610*1995 | 3050 |
| HDM625/HDM688E | 500/625 | 550/688 | D2840LE203 | 199 | 3140*1610*1995 | 3150 |
| HDM688/HDM750E | 550/688 | 600/750 | D2842LE201 | 200 | 3670*1610*1995 | 3880 |
| HDM750/HDM788E | 600/750 | 630/788 | D2842LE203 | 196 | 3670*1610*1995 | 3950 |
| HDM800/HDM840E | 640/800 | 672/840 | D2840LE213 | 201 | 3720*1631*2010 | 3990 |
Engine
1. Mechanical / Electric governing starting method
2. Nature / Turbocharged after water cooled intaking Method.
3. Closed water cooled system
4. Electric Starting
5. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
6. Fuel injection pump
7. Low Consumption
Alternator
1. Brushless alternator
2. 4-wire connected
3. H class insulation
4. 0.8 lagging for 3 phases
5. AVR voltage regulation
6. Wide range of flange adaptors and single bearing disc coupling
7. Leroy Somers, Stamford, Marathon, ENGGA
Basic Configuration
1. Exhaust silencer 2.Flexible pipes 3.Starting battery 4.Starting Charger 5.Cooling radiator
6. Battery Wires 7.Base frame 8.Main circuit breaker 9.AVR 10.Manual books 11.Control box
12. Switch-box 13.Genset wooden
Optional Supply
1. ATS (Automatic transfer system)
2. AMF Panel
3. Silent canopy (for silent type only)
4. Fuel Tank (8 hours running)
5. Four Protection (high temperature auto shutdown, overload automatic shutdown,
low oil pressure automatic shutdown, automatic shutdown phase)
6. Parallel system
7. Remote system
8. Trailer type
9. Soundproof / water proof
10. Lighting tower
Control system:
Feature:
- protection: Automatic start/stop, load transfer and alarming of generator;
- Three channel analog inputs, may joint with Resistive-type temperature/ pressure/ fuel level sensors, Several temperature and pressure sensors can be used directly (ie. VDO, DATCON, CUMMINS), also may select “user defined” sensor via entering 8 point curves;
- Display of generator cumulated electric energy;
- Security password-protected programming levels.
- Several crank success conditions are optional;
- Power supply range is wide, accommodating to different starting battery voltage environments;
- All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased;
- Built-in watch dog can never be dead halt, ensuring smooth program execution;
Parameter:
Generator Volts, Amps, Frequency, active power, apparent power , power factor, Engine Oil Pressure, battery volt, Engine speed, engine temperature, Engine Hours Run, fuel level.
Protection:
1.Low Oil Pressure 2.High voltage and low voltage 3. Volt adjuster and frequency adjuster
4.Overspeed 5. Emergency stop 6.Fail to start 7. High Engine Temperature
Supply standard collocation:
a) Diesel engine with all accessories, 3 filter, electric systems
b) Alternator
c) Steel structure
d) Fan and water tank cooling system
e) Flange connector
f) 12 / 24V starting motor and charge engine
g) Air cleaner, fuel cleaner, oil cleaner
h) On-board control panel
i) MCCB air conservation switch
j) 12 / 24V starting accumulator and Battery line
k) Set shock absorber
l) High-efficient silencer

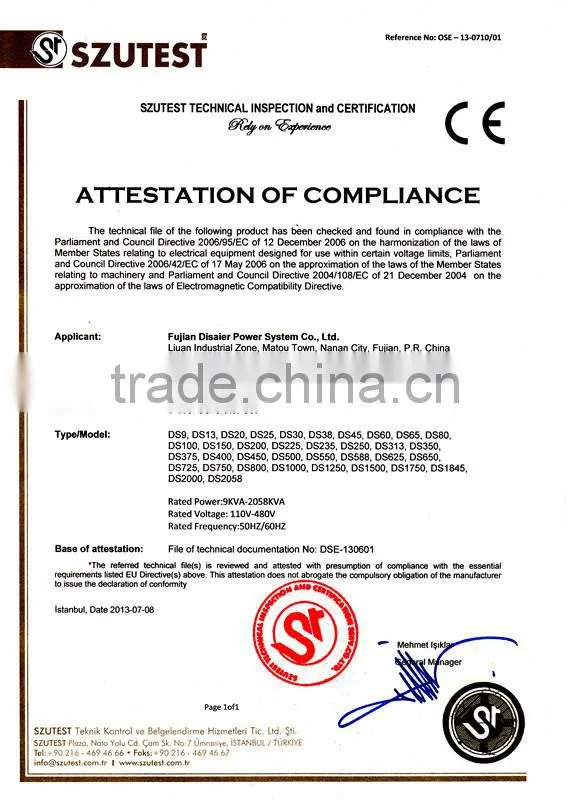

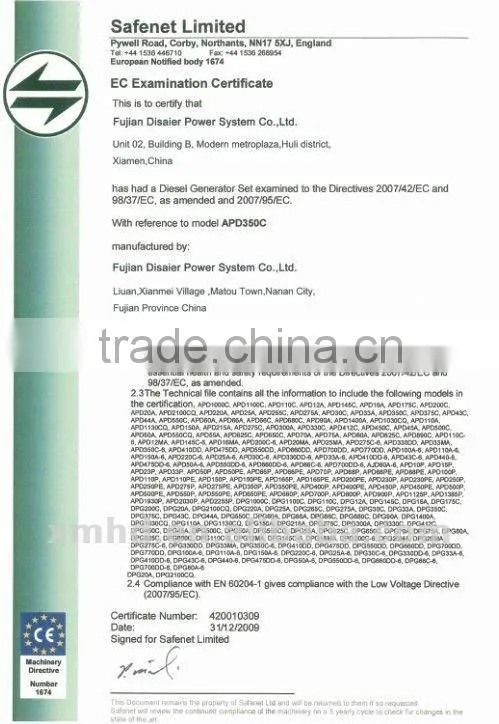

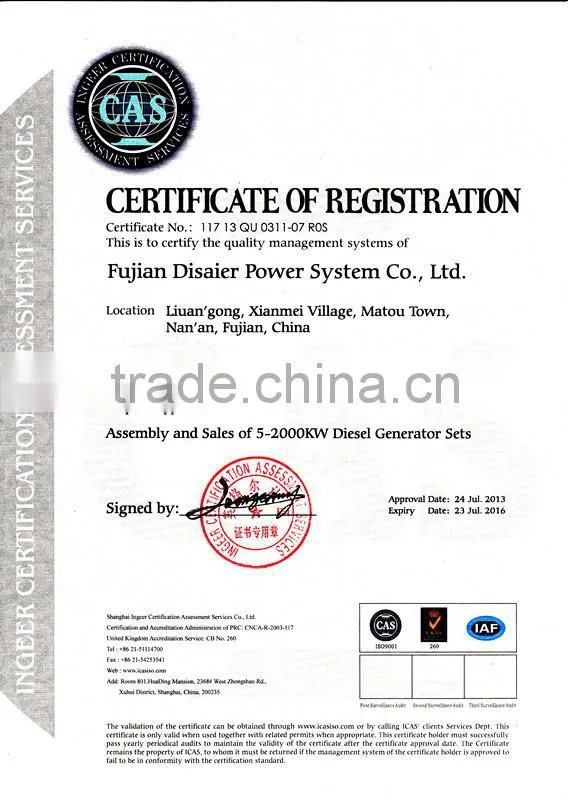

Certificate

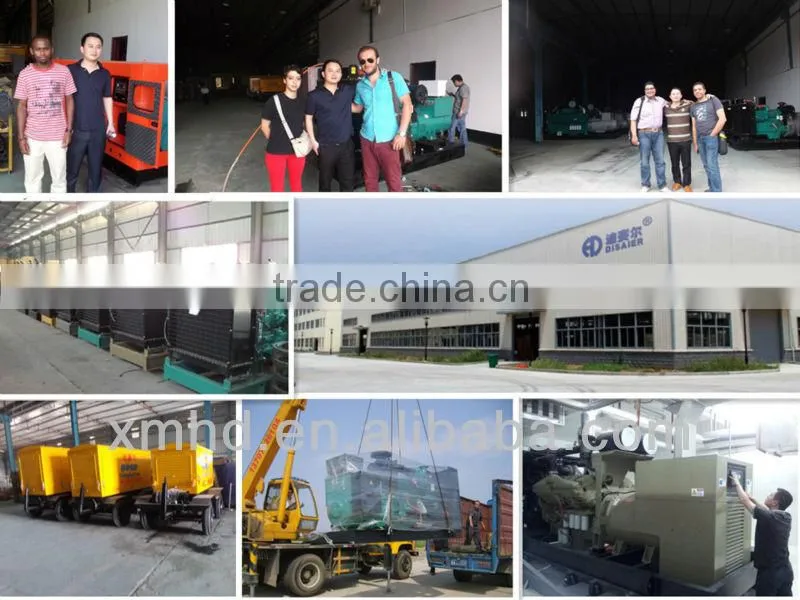

Factory
Our promise
Pre-sales guidance:
Disaier Company professional technician responsible for users’ technical advisor question, make sure the configuration, features, optional items etc.
After-sales service:
Customers supreme, service-oriented
1 year or 1,200 running hours Quality Warranty, whichever comes first.
24 hours after-sales service telephone helpline. Within guarantee period if parts impaired, Cost offer parts (within factory standard parts) and technical.
