Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > China Generators Set With CE and ISO! Kinds of Chinese Generators for Option (competitive Price)

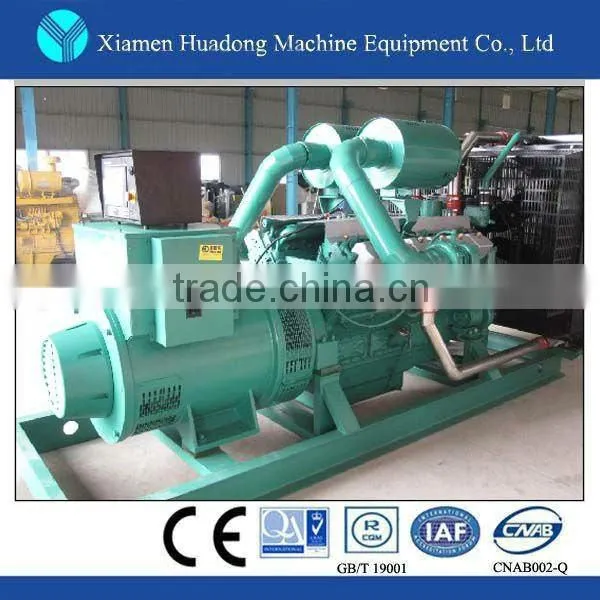

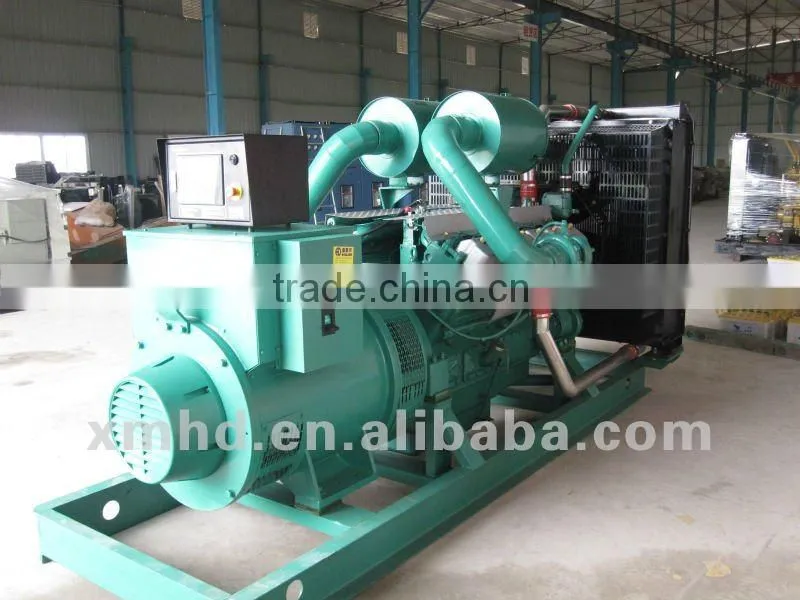

China Generators Set With CE and ISO! Kinds of Chinese Generators for Option (competitive Price)

Name: China Generators Set With CE and ISO! Kinds of Chinese Generators for Option (competitive Price)
Brand: Wuxi power
SKU: 114540441

China Generators Set With CE and ISO! Kinds of Chinese Generators for Option (competitive Price) thumbnail-1

China Generators Set With CE and ISO! Kinds of Chinese Generators for Option (competitive Price) photo-1

US$ 26,900 - 28,300 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

Wuxi power

Model Number:

DW500GF

Contact Supplier Request Quote Chat Now

Xiamen Huadong Machine Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name Wuxi power

Model Number DW500GF

Output Type AC Three Phase

Speed 1500RPM

Frequency 50HZ

Rated Power 400KW/500KVA

Rated Voltage 110V / 240V, 220V / 380V, 230V /400V

Rated Current 722A

Specifications

500kva Wudong genset
1)Export to 100 countries
2)Quick delivery time
3)Good quality and reasonable price
4)CE & ISO

500kva /400kw wudong Genset data

1. Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions.
2. Equipped with battery charger and 24V high performance maintenance-free lead-acid starting batteries and connecting with cables.
3. Equipped with industrial silencer and flexible exhausthose.
4. Equipped with 8-hours operation base tank;

5. Equipped with CHINT MCCB circuit breaker;

6.Designed to Comply with ISO8528/GB2820;

7. Powered by Wudong engine and coupled with leroy-somer alternator or ENGGA alternator

Prime power	5 0 0 k V A / 4 0 0 K W
Standby power	5 5 0 k V A
Rated speed	1 5 0 0 R P M
Output frequency	5 0 H z
Phase	3
Rated voltage	4 0 0 V / 3 8 0 V
Engine model	W D 2 6 9 T A D 4 5
Alternator model	E G 3 1 5 L - 4 0 0 N
Fuel consumption of 100% load	9 0 . 9 L / h
Fuel consumption of 75% load	6 8 . 2 L / h
Voltage Regulation Range	± 5 %
Random voltage variation	≤ ± 1 %
Frequency regulation rate	≤ ± 5 %
Random frequency variation	≤ ± 1 0 %

Engine data

Engine model	WD269TAD45
Engine manu facturer	Wudong
Number of cylinders	12
Cylinder arrangement	" V" type
Cycle	Four stroke
Aspiration	Turbocharged and air intercooled
Bore×Stroke (mm ×mm )	138*160
Displacement (Liter)	28.7
Compression Ratio	17.5:1

Prime power/speed(kW)	460

Standby power/speed(kW)	512
Speed governor	Electrical
Cooling system	Forced Water Cooling Cycle
Max Water Temperature	104
Engine Oil Tank Capacity (L)	90
Coolant capacity (engine on ly) (L)	105
Fuel con sumption at 100% load (L/h)	90.9(at 1500RPM)
Starter motor	DC24V,
Alternator	AC24 V

Alternator data

Alternator model	EG315L-400N
Alternator manufacturer	ENGGA
Exciter type	Single bearing, Brushless, Self-excited
Rated output prime po wer	500 kVA/400KW
Rated speed	1500 RPM
Rated frequen cy	50 Hz
Phase	3
Rated voltage	400 V(Available with custom er requirements)
Power factor	0.8
Voltage adjust range	≥5%
Voltage regulation NL-FL	≤±1%
Insulation grade	H
Protection grade	IP23

Generator Supply Scope

1.Engine, alternator, radiator, auto control panel.

2.Base frame, base fuel tank,Flexible pipes, flange, exhaust silencer .

3.Battery, battery charger, battery wires, internal cables, circuit breaker.

4.Manual books of engine, alternator, genset, control panel, wires diagram.

Controller :Smartgen brand HGM6120K (standard)

Feature:

protection: Automatic start/stop, load transfer and alarming of generator;
Three channel analog inputs, may joint with Resistive-type temperature/ pressure/ fuel level sensors, Several temperature and pressure sensors can be used directly (ie. VDO, DATCON, CUMMINS), also may select “user defined” sensor via entering 8 point curves;
Display of generator cumulated electric energy;
Security password-protected programming levels.
Several crank success conditions are optional;
Power supply range is wide, accommodating to different starting battery voltage environments;
All parameters use digital modulation, abandoning analog modulation using conventional electronic potentiometer, reliability and stability are increased;
Built-in watch dog can never be dead halt, ensuring smooth program execution;

Parameter:

Generator Volts, Amps, Frequency, active power, apparent power , power factor, Engine Oil Pressure, battery volt, Engine speed, engine temperature, Engine Hours Run, fuel level.

Protection:

1.Low Oil Pressure 2.High voltage and low voltage 3. Volt adjuster and frequency adjuster

4.Overspeed 5. Emergency stop 6.Fail to start 7. High Engine Temperature

cummins diesel genset

400kw /500kva Wudong genset in stock

ATS FOR OPTION

canopy for option (soundproof ,weatherproof)

controller for option

Marathon alternator

ISO9001 Approved

ISO1004 Approved

Cummins OEM

Leroy-somer OEM

ENGGA OEM

CE and IAF

Our promise

Pre-sales guidance:

Disaier Company professional technician responsible for users’ technical advisor question, make sure the configuration, features, optional items etc.

After-sales service:

Customers supreme, service-oriented

1 year or 1,500 running hours Quality Warranty, whichever comes first.

24 hours after-sales service telephone helpline. Within guarantee period if parts impaired, Cost offer parts (within factory standard parts) and technical.
