Specifications
1. cheap generator diesel prices2 Global warranty for maintenance

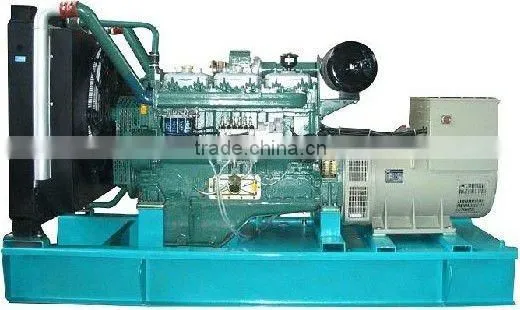

Good market Wuxi wandi 550kw diesel generator
Diesel engine
*Heavy load durable, four-stroke, water cooled engine
*Excellent transient response
*Four valves per cylinder, stainless steel crankshaft, bolt, cast iron steel, replaceable humid cylinder liner
*24V DC safe isolate valve
*Dual spin-on paper element fuel filter
*Gen-sets equipped with dual flexible fuel union pipe
Alternator
1. Brushless alternator
2. 4-wire connected
3. H class insulation
4. 0.8 lagging for 3 phases
5. AVR voltage regulation
6. Wide range of flange adaptors and single bearing disc coupling
7. Leroy Somers, Stamford, Marathon, ENGGA
Control Panel
1 a) Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
2 Starting system: DC alternator is used to start engine
3 Short circuit protection: MCCB air switch
4 Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40°C
5 Filter system: oil, fuel and air filter
6 Accessories: exhaust elbow, bellow, muffler
Standard accessory for diesel generator
- 40 or 50 degree radiator
- Common steel frame with 8 hours base fuel tank as standard
- Circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wires
- Standard took kits, operation manuals and documents.
- All qualified Diesel generator sets are subjected to a comprehensive performance test which includes 50% load, 75% load, 100% load, 110% load and to check, verify that all control systems, alarm and shut-down protection.
- Every Diesel generator is equipped with battery charger and 24V high performance maintenance-free lead-acid starting batteries and connecting cables.
- Each Diesel generator is equipped with industrial silencer and flexible exhaust hose.
Parameter of wuxi wandi genset below
| Genset model | Prime Power | Standby power | Engine model | Fuel consumption (g/kwh) | Cylinder | Displacement(L) | ||
| KW | KVA | KW | KVA | |||||
| DSW125 | 100 | 125 | 110 | 138 | WD129D11 | 221 | 6L | 12.9 |
| DSW150 | 120 | 150 | 132 | 165 | WD150D15 | 216.6 | 6L | 14.8 |
| DSW180 | 144 | 180 | 158 | 198 | WD129TD16 | 217 | 6L | 12.9 |
| DSW188 | 150 | 188 | 165 | 206 | WD129TD17 | 221 | 6L | 12.9 |
| DSW225 | 180 | 225 | 198 | 248 | WD129TAD19 | 209.3 | 6L | 12.9 |
| DSW250 | 200 | 250 | 220 | 275 | WD129TAD23 | 213 | 6L | 12.9 |
| DSW275 | 220 | 275 | 242 | 303 | WD129TAD25 | 213 | 6L | 12.9 |
| DSW300 | 240 | 300 | 264 | 330 | WD129TAD25 | 213 | 6L | 12.9 |
| DSW313 | 250 | 313 | 275 | 344 | WD135TAD28 | 224 | 6L | 13.5 |
| DSW350 | 280 | 350 | 308 | 385 | WD145TAD30 | 224 | 6L | 13.5 |
| DSW375 | 300 | 375 | 330 | 413 | WD145TAD33L | 217 | 6L | 14.4 |
| DSW400 | 320 | 400 | 352 | 440 | WD145TAD35 | 228 | 6L | 14.4 |
| DSW400 | 320 | 400 | 352 | 440 | WD269TD35 | 218 | 12V | 26.9 |
| DSW450 | 360 | 450 | 396 | 495 | WD269TAD38 | 213 | 12V | 26.9 |
| DSW475 | 380 | 475 | 418 | 523 | WD269TAD41 | 213 | 12V | 26.9 |
| DSW500 | 400 | 500 | 440 | 550 | WD269TAD43 | 213 | 12V | 26.9 |
| DSW550 | 440 | 550 | 484 | 605 | WD269TAD45 | 213 | 12V | 26.9 |
| DSW563 | 450 | 563 | 495 | 619 | WD269TAD48 | 213 | 12V | 26.9 |
| DSW600 | 480 | 600 | 528 | 660 | WD269TAD50 | 213 | 12V | 26.9 |
| DSW625 | 500 | 625 | 550 | 688 | WD269TAD56 | 213 | 12V | 26.9 |
| DSW650 | 520 | 650 | 572 | 715 | WD269TAD56 | 213 | 12V | 26.9 |
| DSW688 | 550 | 688 | 605 | 756 | WD287TAD58 | 221 | 12V | 28.7 |
| DSW725 | 580 | 725 | 638 | 798 | WD287TAD61L | 221 | 12V | 28.7 |
| DSW800 | 640 | 800 | 704 | 880 | WD305TAD68 | 213 | 12V | 30.5 |
| DSW975 | 780 | 975 | 858 | 1073 | WD327TAD82 | 213 | 12V | 32.7 |
More Products Photos
Smartgen Controller
ATS
Payment
a, T/T 30% in advance,the rest balance before shipment.
b,L/C at sight.By 100% irrevocable L/C.
Packing
Wooden case or plywood case
Any question,pls contact with me directly.
Remark:Control panel(including Automatic protection):low and high frequency,low oil pressure protection and high water temperature protection
Terms of Warranty
1. Since genset reached the agreed destination, its main parts will be guaranteed within 12 months or 1000 hours.
2. We take charge of all troubles caused by genset’s fault and repair according to the regulation stipulated by original plants.
3. Factors not accordance with the regulation of original plants such as fagile parts, daily consumed components, wrong operating, lack of maintenance are not included in the quality guarantee.
About us
Fujian Disaier Power System Co., Ltd. specializes in providing Power Supply Solution as diesel generator sets. In the past 10 years, over 600 customers have been benefited from the reliable generator sets we provided. With our professional team, quality equipments and always intime postsale service, we have earned good reputation in the industry.
Invitation to visit to our factory
1. If you are interested in our products we sincerely invite you to take a visit of our factory when you are in China.
2. Our factory locates in Nanan City, which is famous for its stone , is just 45 minutes away from Xiamen.
3. When you come to Xiamen, we can send cars to pick you up and take you to our factory.
4. In the factory we can discuss more about the cooperation and we will listen to your requirements.
For more detail information,pls feel free to contact with us.
