Specifications
1.Deutz diesel genset2. 8hs base tank
3. 50 degree radiator
4.low noise, low fuel comsumption
5. Latest safety design

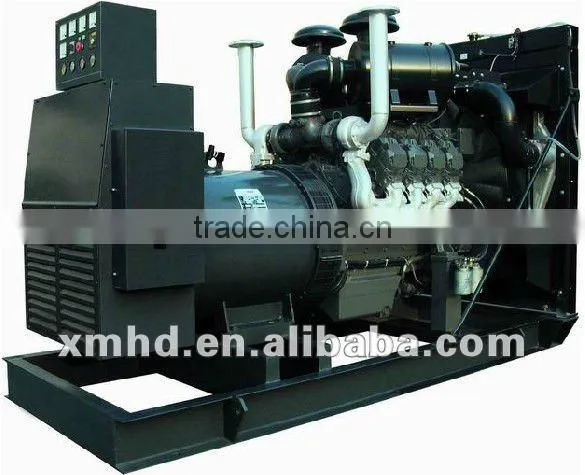

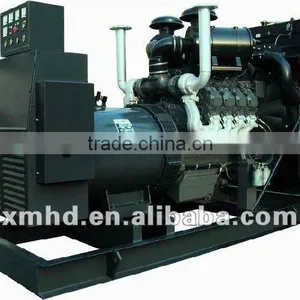

68.75KVA Deutz diesel genset with CE& ISO
General Configuration
1) Based Frame with 8 hours Fuel Tank.
2) AOSIF Control panel with Smartgen6110 control module
3) Two pieces of 120 AH battery
4) Set mounted Copper Radiator
5) High quality main circuit breaker.
6)Optional AOSIF soundproof/waterproof canopy and movable trailer
Accessory: Exhaust silencer, Flexible pipes, flange, Battery wires, Battery charger Float
battery charger, AVR, Wires diagram, manual books.
engine
Manufacturer |
Weifang Weichai Deutz Diesel Engine Co.,LTD |
Model |
TD226B-4D |
Engine Configuration |
4-cylinder in line,4storke,Exhaust gas turbocharged, direct spray fuel system |
Displacement |
4.16 L |
Engine Cooling Mode |
The radiator suitable for 40°C temperature,strap drive the cooling fan with protection cover |
Speed control panel |
Mechanical speed controller,electricity-magnet valve conrol switch |
Start mode |
24V Direct Current Start,including alternator&battery |
Engine Filter System |
Dry air filter type,Fuel filters,Lube filter |
Compression Ratio: |
16.0:1 |
Bore and Stroke: |
105×120 |
100%Load fuel consumption (L/h) |
13.6 |
Specific fuel consumption (g/kwh |
≤208 |
Lubricating oil consumption (g/kwh) |
≤1.36 |
Exhaust Air Flow (m3/min) |
70 |
Air consumption |
3.25 |
Exhaust gas Flow(m3/min) |
7.6 |
Exhaust gas Temperature(°C) |
430 |
Oil Capacity(L) |
9.5 |
Coolant Capacity(L) |
17 |
Alterantor
Manufacturer / Model |
Leroy-somer Electro-technique (Fuzhou) Company Ltd. |
Model |
LSA43.2 L65 |
Output power |
56KW |
AVR model |
R250 |
Number of phase |
3 |
Power factor (Cos Phi) |
0.8 |
Altitude |
≤ 1000 m |
Overspeed |
2250RPM |
Number of Pole |
4 |
Exciter type |
Shunt |
Insulation class |
H |
Voltage regulation |
±0.5% |
Sustained short circuit current |
300% (3 IN) : 10s |
Total harmonics (TGH/THC) |
< 2 % |
Wave form : NEMA = TIF |
< 50 |
Wave form : I.E.C. = THF |
< 2% |
Bearing |
single |
Coupling |
direct |
