Specifications

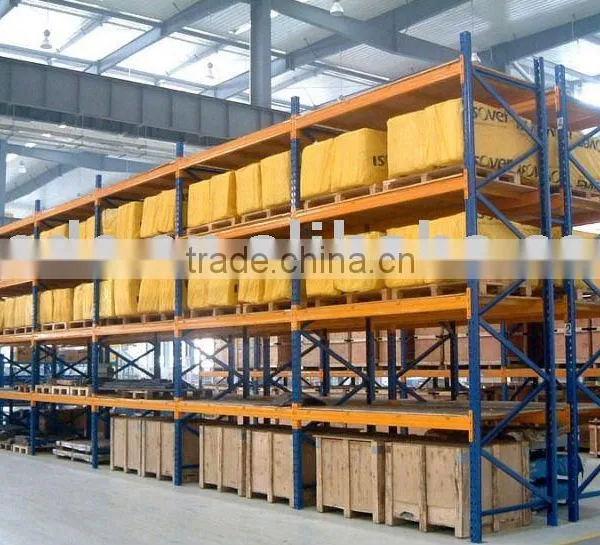

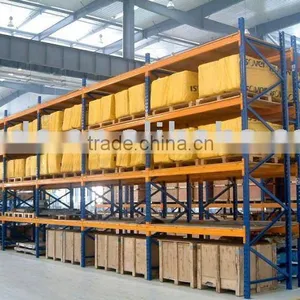

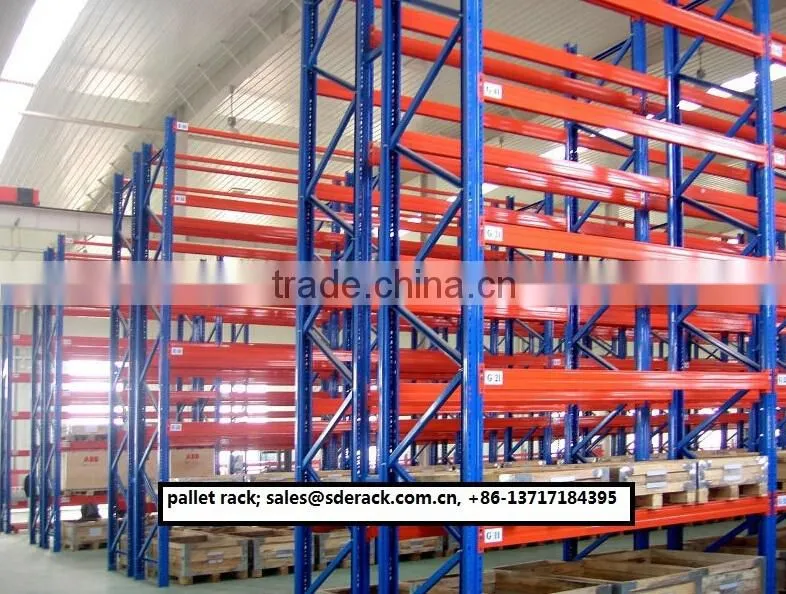

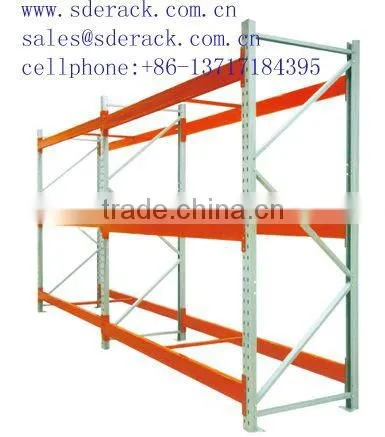

pallet racking is suitable for all kinds of warehouses and storage applications, high density storage, ease in operation,strong.
pallet racking, (storage & retrieval system, pallet racking) is used as one of storage system, pallet has the feature of good appearance, safety, fast in picking and storage room saving.
Painting is fast and lasts long as the surface is painted by spraying static power.
Each level can be adjustable at 75mm per pitch and the maxmum loading is 25000kg with the maxmum length of 12 meters.
Required information from customers for quick quote:
1, the AUTOCAD drawing or draft drawing of warehouse or racking.
2, the size of the warehous, length, height, and width.
3, how many layers of the racking?
4, your pallet size,
5, max weight of pallet with cargo on.
6, special color requirement.
Standard Size:
Detailed description of drive in racking and necessary information from customers:
1, very high utility ratio of warehouse.
2, goods can be first in first out or first in-last out,
3, structural steel constraction for durality.
4, pallet position configure from 2-7 deep and 2-7 high to roofing.
5, Finish: powder coating.
S/N |
Standard Size(W*D*H) |
Loading Weight |
Standard Layer |
Material |
1 |
2300*900*3000 |
1000-4000kg/level |
2+1(ground) |
steel |
2300*900*4000 |
3+1(ground) |
|||
2300*1000*3000 |
2+1(ground) |
|||
2300*1000*4000 |
3+1(ground) |
|||
2 |
2500*900*3500 |
2+1(ground) |
||
2500*900*4000 |
3+1(ground) |
|||
2500*1000*3500 |
2+1(ground) |
|||
2500*1000*4000 |
3+1(ground) |
|||
3 |
2700*900*3500 |
2+1(ground) |
||
2700*900*4000 |
3+1(ground) |
|||
2700*900*5000 |
3+1(ground) |
|||
2700*900*6000 |
4+1(ground) |
|||
2700*1000*3500 |
2+1(ground) |
|||
2700*1000*4000 |
3+1(ground) |
|||
2700*1000*5000 |
3+1(ground) |
|||
2700*1000*6000 |
4+1(ground) |
|||
|
Remark:This size is our standard only. Different size with various loading weight and levels are acceptable.
| ||||
