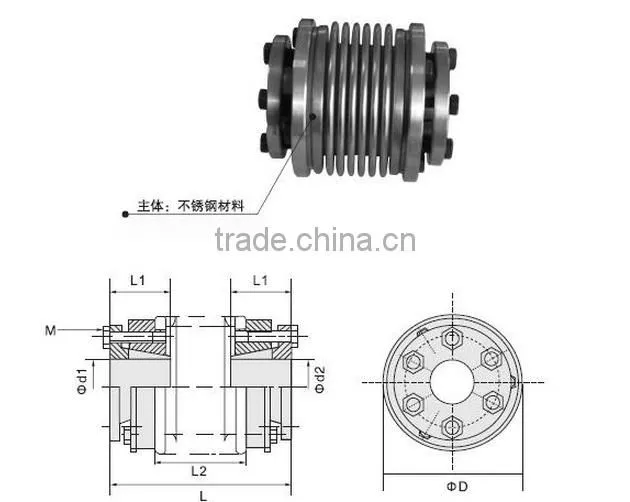

Locking Assemblies Coupling(Bellows).
Feature:
1.Using locking assemblies connect,plate spring coupling.
2.Zero backlash
3.Excellent response and high torque capacity.
4.Identical clockwise and anticlockwise rotational characteristics
5.Bellows material:Stainless steel
Model |
Φ d1Φd2 |
ΦD |
L |
L1 |
L2 |
M |
Wrench Torque |
TS1Z-40 |
10 11 12 |
40 |
55 |
19 |
24 |
M4 |
3.0 |
TS1Z-55 |
11 12 14 |
55 |
65 |
22 |
31 |
M4 |
6.0 |
TS1Z-65 |
14 16 19 |
65 |
76 |
27 |
37 |
M5 |
8.0 |
TS1Z-82 |
19 20 24 |
82 |
88 |
32 |
41 |
M5 |
10.0 |
Model |
Rated Torque |
Max.Torque |
Max.Rotational Frequency |
Moment of inertia |
Static Torsioral Stiffness |
Parallel misalignment |
Angular misalignment |
Axial misalignment |
Mass |
TS1Z-40 |
13 |
26 |
8000 |
9×10-5 |
1.5×10-4 |
0.15 |
2 |
1.5 |
210 |
TS1Z-55 |
28 |
56 |
6000 |
2.9×10-4 |
3.5×10-4 |
0.2 |
2 |
1.5 |
400 |
TS1Z-65 |
56 |
112 |
5000 |
4.6×10-4 |
6.8×10-4 |
0.25 |
2 |
1.5 |
790 |
TS1Z-82 |
120 |
240 |
4500 |
1.1×10-3 |
1.2×10-4 |
0.28 |
2 |
1.5 |
1210 |
