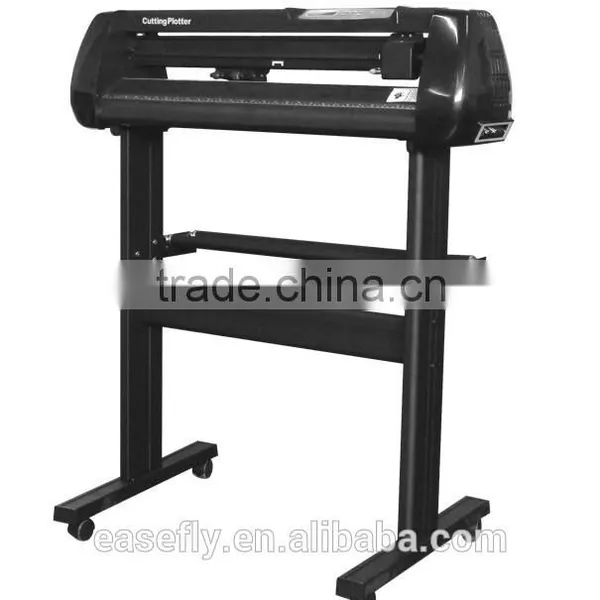

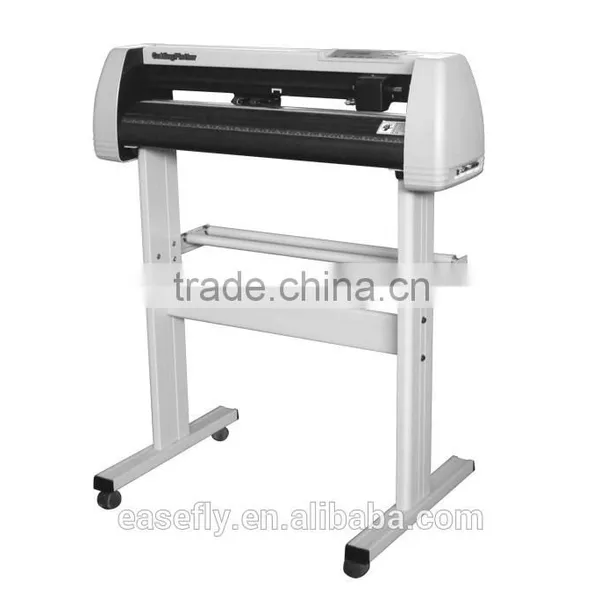

High Quality Vinyl Paper Cutting Plotter Machine Flex Printing Machine
vinyl cutting plotter machine feature:
vinyl cutter plotter Cutting speed:600m/s
Voltage:110/220v
Driver:stepper
Max cutting thickness:1mm
Repeat Cutting: <±0.1mm
Power:AC110V/220V±10%,50Hz
Knife press:0-800g(digital adjustment)
Max cutting length:20000mm<=20m
Software:Artcut2009.CorelDraw.Flexisigin
Pc system: window2000,XP,vista 32 32bits.....
Pen plotting: available
English LCD display
vinyl cutter cutting plotter machine pass the CE certificate
The detaill information For High Quality Vinyl Cutting Plotter
Type |
vinyl cutter cutting plotter machine YFCP-02 |
vinyl cutter cutting plotter machine YFCP-03 |
vinyl cutter cutting plotter machine YFCP-04 |
vinyl cutter cutting plotter machine EFCP-05 |
|
Media way |
M form bracket Or Stand |
Floor stands |
|||
Main board |
16-bit CPU,1MB High-speed CACHE memory |
||||
Control panel |
Over-head,2x8 Liquid Crystal Display,13-button touch thin-film keyboard |
||||
Driver |
High speed stepping motor, micro-step driver |
||||
Max paper feed width |
730mm |
1000mm |
1100mm |
1300mm |
|
Max cutting width |
625mm |
895mm |
1095mm |
1195mm |
|
Max cutting speed |
500mm/s |
||||
Max cutting length |
20000mm<=20 |
||||
Max cutting thickness |
1mm |
||||
Knife press |
0-800g(digital adjustment) |
||||
Mechanical resolution |
0.05mm |
||||
Repeatability |
<+-0.1mm |
||||
Type of tool |
Carbide blade |
||||
Plotting instruction |
All types Diameter 11.4mm plotter pen |
||||
Interface |
USB1.0 Port and Serial Port |
||||
Power supply |
AC110V/220V±10%,50Hz |
||||
Power consumption |
<100VA |
<120VA |
|||
Operating environment |
Temperature:+5~+35,relative temperature 30%~70% |
||||
External size |
1030x275x380mm |
1200x260x1070mm |
1300x260x1070mm |
1500x260x1070mm |
|
