Specifications
long range card Reader1)Interface: Wiegand or RS232
2)Range:10M

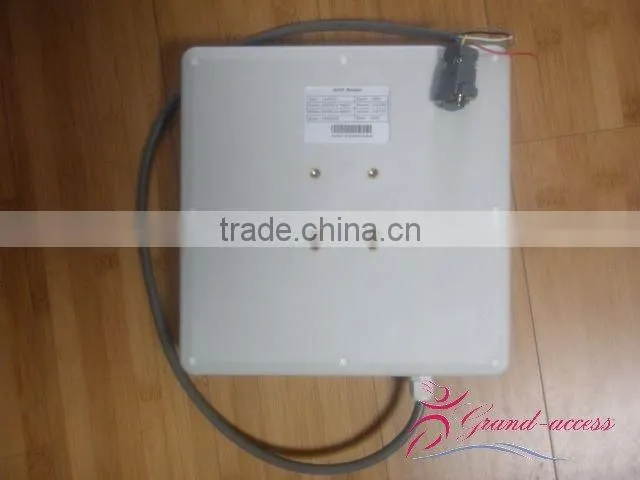

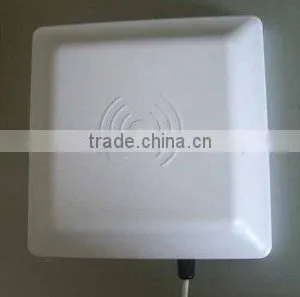

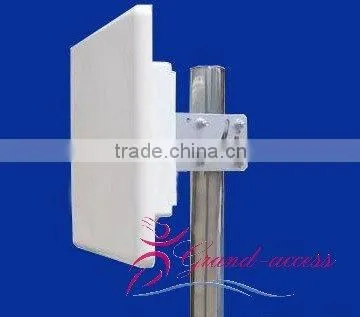

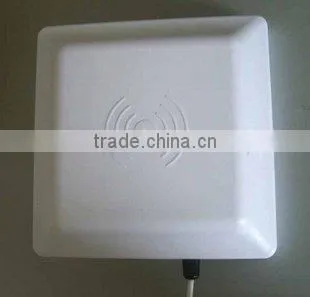

Integrated UHF Long Range Card Reader(with Passive tags)(10M) GAR-324A

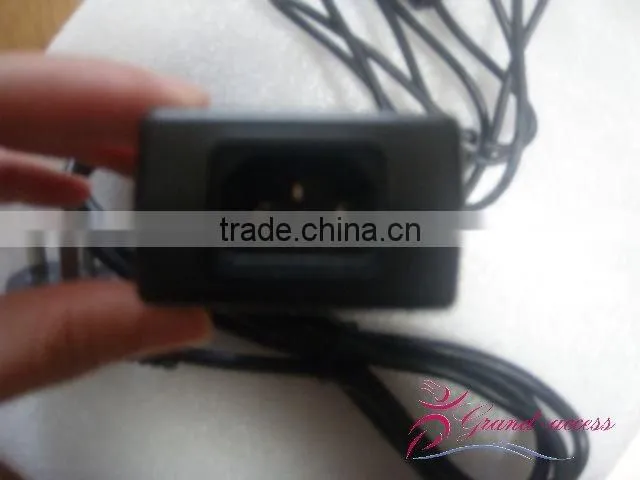

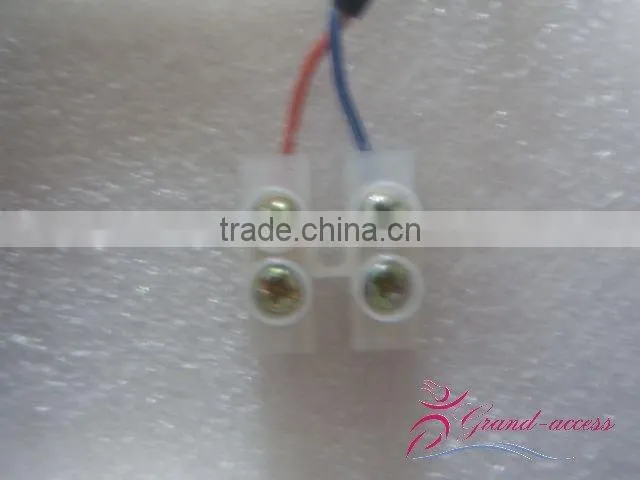

Details show:
Specification:
Frequency:1Sm 902-928MHZ
Operation Mode: Fixed Frequency or FHSS or Software Program
RF Power Output Adjustable Range: 0.1W --- 1W
Built- in Antenna Type: Built-in horizontally polarized antenna.

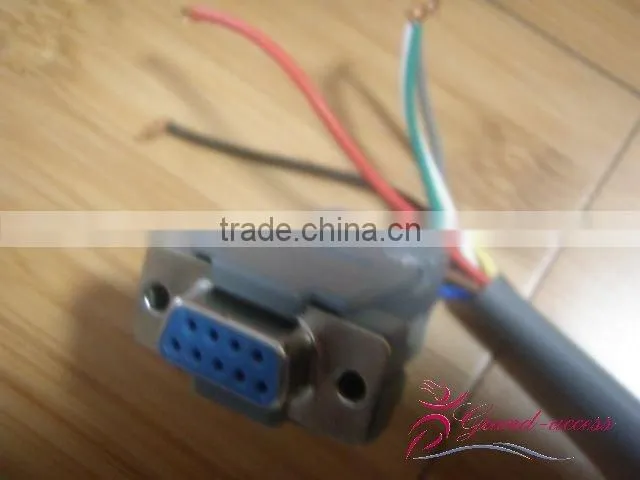

Communication Ports: RS-232, RS-485, Wigand 26 bits 32bits
Communication Rates: Up to 57,600bps and software programmable
Reading/Writing Capability: Reading/Writing ISO18000-6B, EPC Passive tags via software program.
Reading Range: 12M
Programmable Application Platform: Allows Programmable Interface with host applications; Supports
Visual Basic or VC applications.
Dimension: 460×460×45MM
Weight: 4.0KG
Operation Temp: Working Temp.:-35°~ +60 °, Storage Temp.:-50°~ +80°.
