Help CenterFast Delivery !! PQ1000 Common Rail Injector Test Bench
Related Products
-
CRI200 Diesel Common Rail Pump & Injection System TesterNegotiableMOQ: 1 Set -
CRI200 Diesel Common Rail Pump & Injection System TesterNegotiableMOQ: 1 Set
-
CRI200 Diesel Common Rail Pump & Injection System TesterNegotiableMOQ: 1 Set
-
Bosch CP3,CP4 Common Rail Injector Test Bench,HY-CRI200ANegotiableMOQ: 1 Set
-
Provide Special Fixture of Testing Injector,common Rail Injector Tester,HY-CRI200ANegotiableMOQ: 1 Set
Specifications
1.HY-PQ1000 common injector test bench2.Solenoid valve injector
3.easy operation
4.including ultrasonic cleaning tester

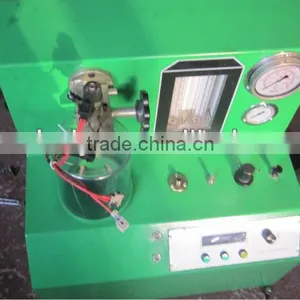

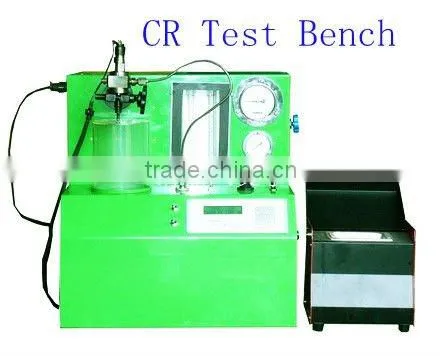

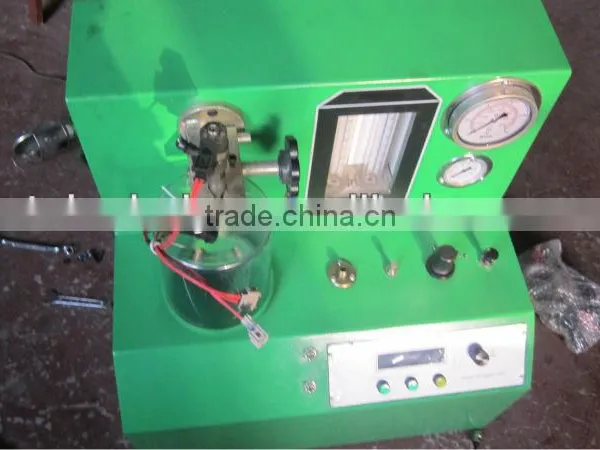

HY-PQ1000 high pressure common injector test bench

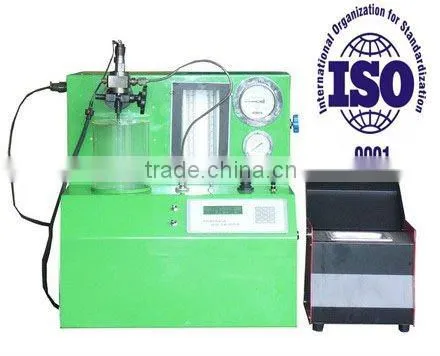

certificate: CE ISO9001:2008
bulk order can be given some discount
1. To test if the CR injector is still function, to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to continuous is injection mode. The CR injectors in normal condition, if it is capable to inject fuel under the driving signals by the tester.
2. To test injector spray atomization, to connect a CR injector to a high pressure fuel source by a high pressure fuel line and to the CR tester by harness. The tester is set to single injection mode to allow observing the nozzle spray pattern to judge if the nozzle is normal or orifice plugged.
3. Checking the injection return oil and injection oil.

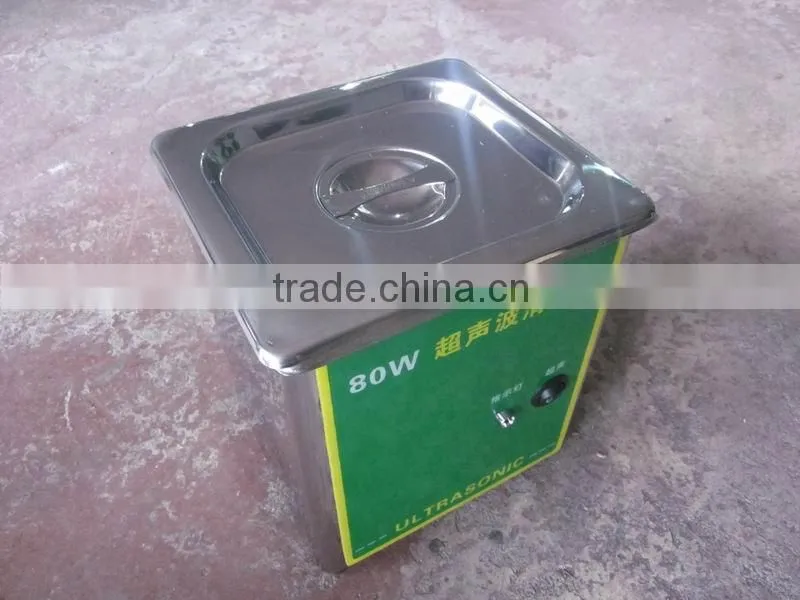

4. with ultrasonic cleaning tester to clean the nozzle.
Main Voltage(Vac) |
220V |
Main Frequency(Hz) |
50/60 |
Max Filling Volume per Tank(lit./gal) |
2 |
Input System pressure(bar/psi) |
0-10/0-145 |
System Build-up Pressure(bar/psi) |
0-1800bar/0-26100 psi |
It is used to test the common rail injector, and it also can clean the common rail injector by Ultrasonic Cleaning Instrument.
Technical data:
1. High pressure 0-1800bar
2. Check the injector starting pressure
3. Assessment of the injector spray fog quality
4. Inspection of the injector spray oil range
5. Check of the injector seal and angel
6. Check of the injector oil flow
7. The parameter of common rail injector (fuel spray counts, frequency, pulse width, Voltage) can be set willfully.
