Specifications
Fuel Injector test standPower: 18.5kw, 15kw, 11kw
Voltage:three-phase four wire
Usage: Testing fuel injection pump

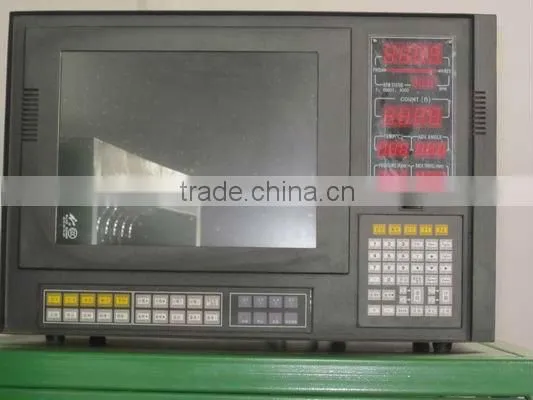

HY-WKD Fuel Injector Pump Test Stand
Quick view the characteristic curve of governor in dynamics. Test pump with the curve of governor. Save time, save effort, rapid, audio-visual, accurate. It's a very good tool for specialist to test pump.
TECHNICAL PARAMETERS:
1. Rotation speed: 0~4000 r/m
2. Double series of graduates: 45cc, 150cc(as request)
3. Volume of diesel fuel tank: 60L
4. Temperature autocontrol: 40
5. Test oil filtering unit: 5μ
6. D. C. Supply: 12V/24V
7. Feed pressure: Low: 0~0.4Mpa
High: 0~4Mpa
8. Air pressure: Positive: 0~0.25Mpa
Negative: -0.05~0Mpa
9. Volume of motor oil tank: 40L(optional)
10. Motor oil adjust pressure: 0~1Mpa(optional)
11. Flywheel inertia: 0.8KG@M2
12. Center height: 125mm
13.3 phase power resource: 380V/50Hz or 220V/60Hz
Characteristics:
1.Changing frequency changing rotation speed
2.Small fall of rotation speed and large output torque
3.High measurement precision
4The functions of overvoltage, overload and short circuit protection;
5.Eight kinds of rotation speeds presetting;
6.Constant temperature controlled;
7. Ultra low noise;
8.Operating position: arbitrary side of the two work sides of the test stand;
9.rotation speed, count ,temperature are displayed on15" LCD or LCD and LED and air pressure is displayed on the mechanical gauge
10.Built-in air resource
can be searched and printed
