10'' 1.0 Micron PP Filter cartridge
Description:
E005-PP filter cartridges are filter cartridges constructed of polypropylene fine fiber. This PP filter cartridges is tested and certified by NSF International against NSF/ANSI Standard 42 for material requirements only. They are capable of high dirt-holding capacity, high flow rates and broad chemical compatibility. Due to their features, they are ideal and most cost-effective for the wide range of prefiltration for water treatment industry.
Features and Benefits
Broad chemical compatibility
Superior dirt-holding capacity
High flow rates and cost-effective
Quality
Cartridges produced in a controlled environment
Manufactured according to ISO9001 certified Quality Management System
Specification
| Materials of Construction | ||
| Filter Media | PP | |
| Support | PP | |
| Core, Cage and Drainage | PP | |
| End Caps | PP | |
| O-rings/Gasket | Viton/Silicone/EPDM/ TEV | |
| Sealing Technology | Thermal Bonding, No Adhesives | |
| Dimensions | ||
| Diameter | Φ68 | |
| Length | 5 inch, 10 inch, 20 inch, 30 inch, 40 inch | |
| Filtration Area, ft2 | ||
| ≥ 4.4 per 10-inch element | ||
| Pore Size, μm | ||
| 0.1, 0.22, 0.45, 0.65, 1.0, 3.0, 5.0, 10, 20 | ||
| Maximum Differential Pressure | ||
| Forward: 4.2 bar @ 23 ℃; 1.5 bar @ 85 ℃ | ||
| Flow Rate & Pressure Drop, per 10-inch cartridge | ||
| 0.1 μm | ≥ 18 L/min at 210 mbar | |
| 0.22 μm | ≥ 25 L/min at 210 mbar | |
| 0.45 μm | ≥ 27 L/min at 210 mbar | |
Application:
>> Terminal filtration for solvent printing ink
>>Filtration for monomers of optical resin
>> Filtration for silicone oil
>> Final filtration for reagent-grade aggressive solutions
>> water filtration.

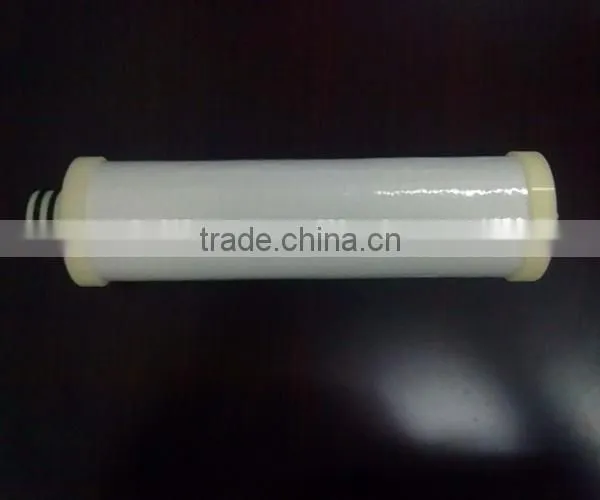

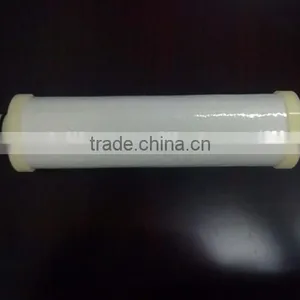

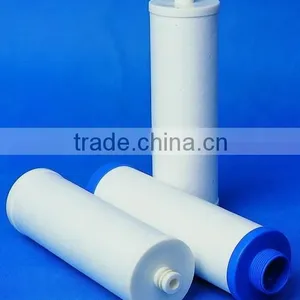

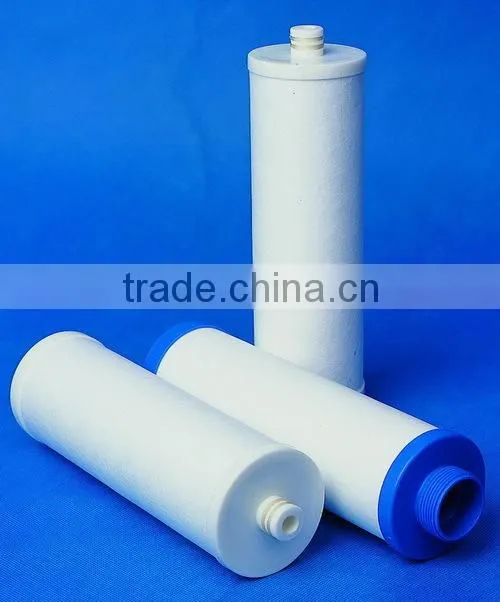

Product Picture:
Automatic Producting UF membrane element Machine
Company Picture
Our Company and Team :)
