Mechanical Contactor 230V CM

Mechanical Contactor 230V CM thumbnail-1
Mechanical Contactor 230V CM photo-1
Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
DIXSEN
Model Number:
CM
Contact Supplier Request Quote Chat Now
Zhejiang Dixsen Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name DIXSEN
Model Number CM
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage 380v
Main Circuit Rating Current 100a

Specifications

1.ISO9001 and ISO14001 approval.
2.CE passed.
3.Professional manufacturer.
4.Reasonable packing
5.qualified contactor

Mechanical contactor 230V CM  :



1.Description:



Main and auxiliary contact, coil and auxiliary contact blocks are easily installed and removed. The coils of contactors are safely controlled between 0.8 and 1.1 times of their rated coil voltage. They operate at full performance in the ambient temperature of -5 and +55. The ability of assembling contactors to rails provides a great facility during installation. The ingredient of the material provides a resistance to an insulation voltage of 1000V



Contact material: Silver cadmium oxide



Approximate mechanical life cycles:1000000



Fullfill following Standard:

UL508, IEC60947-4-1, EN60947-4-1, GB14048-4, Mees ARI-780 and CSA Standard





2.Specification



Below is selection form for CM Series mini contactor:

Type

No. of Poles

Rated Current @ 230V AC

PCS./CTN.

CM-20/1

1P

20A

120

CM-20/2

2P

120

CM-20/3

3P

60

CM-20/4

4P

60

CM-25/1

1P

25A

120

CM-25/2

2P

120

CM-25/3

3P

60

CM-25/4

4P

60

CM-32/1

1P

32A

60

CM-32/2

2P

60

CM-32/3

3P

40

CM-32/4

4P

40

CM-40/1

1P

40A

60

CM-40/2

2P

60

CM-40/3

3P

40

CM-40/4

4P

40

CM-63/1

1P

63A

60

CM-63/2

2P

60

CM-63/3

3P

40

CM-63/4

4P

40

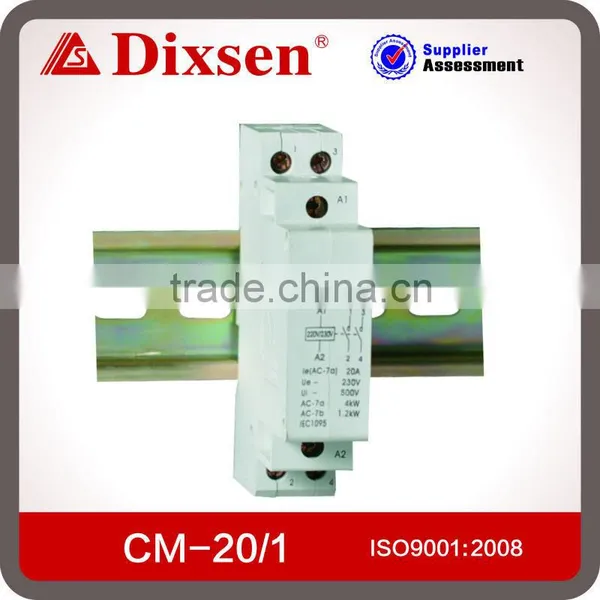

Feature: CM Series Mini contactor is DIN rail modularize contactor, it is latest design for household using. It's also called module contactor or AC contactor







3. Packing show



4. Company show









5. Exhibition



Mechanical contactor 230V CM





Mechanical contactor 230V CM







...
