Nurse Call System1)wired nurse call system
2) could connect 60 patient calls
3) with sofeware
Nurse Call System:
The KB818B Nurse Call System is a newly developed addressable type system which has been specifically designed for easy operation and installation. Addressable Nurse Call System can pinpoint the location of an activated “User Machine”, because each device is associated with an address. The advantage of an addressable system is that up to 96 different addresses can be linked on the same two wires. Each bed in a ward is assigned with a unique address according to the bed numbers. After addressing the Bed Head Panel Unit (User Machine), it can be configured as “Normal Care”, “Special Care” or “Emergency Care”.
2,Functional Features
- Basic Function:
- The master station can call any calling button and the calling button can also call the master machine, two way speaking also available.
- User station: There is two types of user station, user station(normally, can two way speaking), waterproof urgent button ( bath room use, it not have speak function and only have the function of calling.)

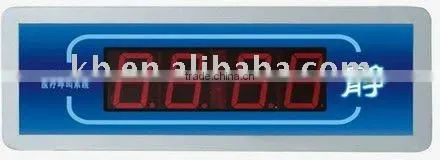

- Display panel: One unit master station can connect several units display panel. When the quantity of display panel is less than 2 units, extra power supply is not necessary and it can powered directly by master station.
- Two way speaking: the system have the function of two direction speaking, that means user station can ask talk with master station, or the master station can dial the Number of beds to talk with the user station. The voice is very clear no noise.
- Multi-units display: when there is many calling happen at the same time, the master station will display the number of current speak user station, if not speak, the muster station will keep display every calling number take turns every 2 seconds, also it makes sound.
System Main Technical Specifications
Power Source AC220V+10% 50Hz+1Hz
Working Conditions Temperature —100C~450C Relative Humidity≤85%
Working Method Continuous
Power Consumption When Idle ≤12W
Power Consumption When Loaded ≤75W
Main Power Supply (To Extensions) Voltage 25V+1V
Number of Patient Cards 60
Maximum Communication Distance 300 Meters
Maximum Number of Patients That Can Be Paged 160
