Specifications
1)5mm LED rigid bar light2)25/50/100cm length
3)DC 12V or 24V input
4)W/WW/R/G/B/Y/RGB
5)3 years warranty

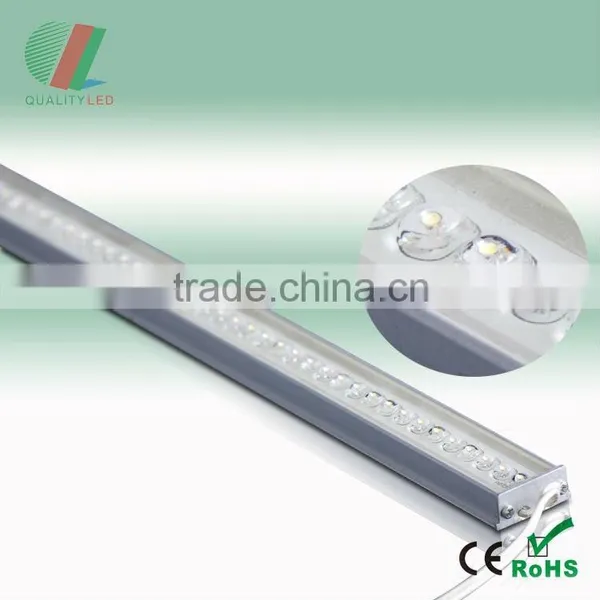

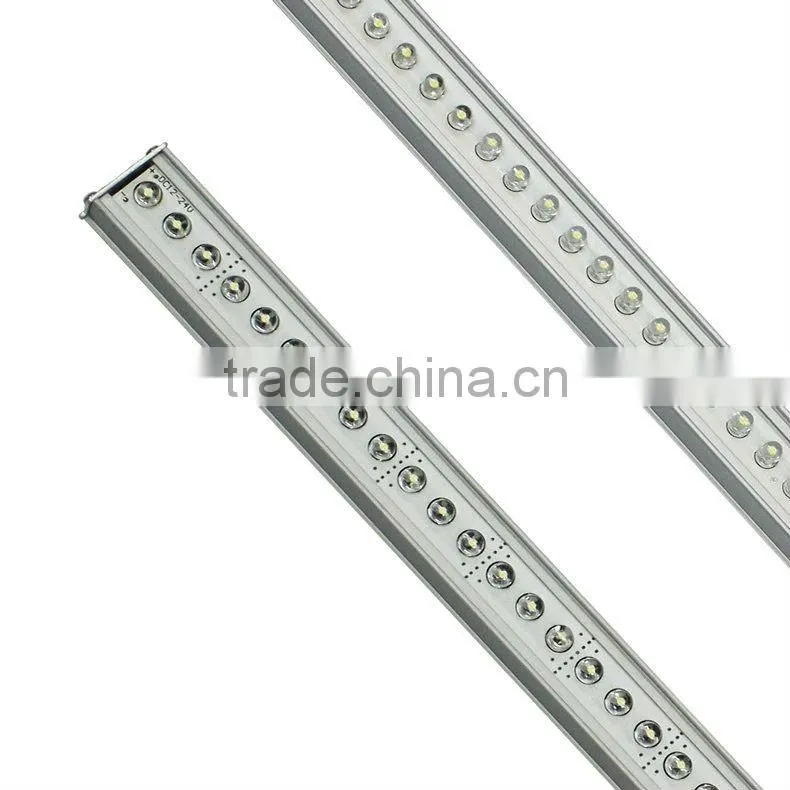

5mm dip led rigid strips
Low power consumption
Low working temperature
High brightness
IP65, suitable for indoor and outdoor usage
Applications:
1. Cabinet lighting
2. Shelf lighting
3. Display lighting
4. Decorative lighting
5. Cove lighting
6. Walkway
7. Household, hotel, restaurant, entertainment places, etc.
Photometric Characteristics
5mm Through Hole LED
Colors available: cool white(6000-6500K), warm white(2800-3300K), red, blue, green, RGB
Beam angle: white, 110°. Red, green, blue, 70°
Lumen output

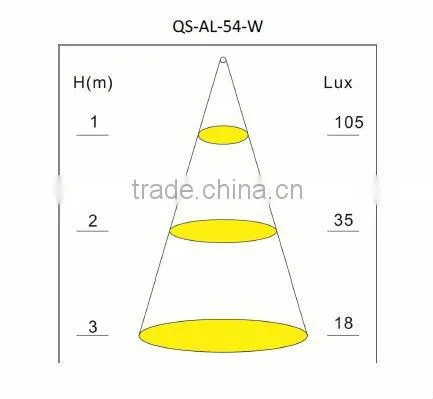

LUX Diagram
Electrical Characteristics
Input 12VDC or 24VDC(It is important to nominate the input voltage when placing order)
Forward current: 18mA
Compatible with DMX and PWM control system
At most 5 meters can be connected in series.
Power consumption:
Address: Block A, Huilongda Industrial Park, Shilongzai, Shuitian, Shiyan, Bao’an, Shenzhen, China
4 / 6
Mechanical Characteristics
Material: aluminum back and waterproof glue on the surface of PCB
Surface finish: anodized and honed
Working temperature: 40 degrees Celsius at room temperature 25 degree Celsius
Ambient temperature: -40~50 degrees Celsius

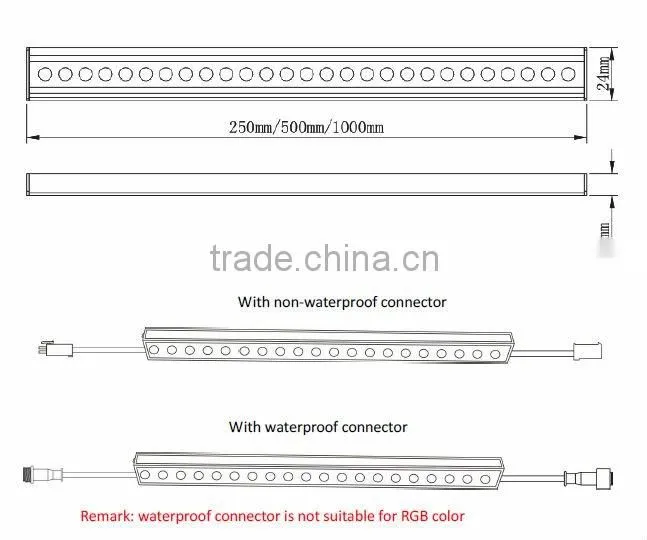

Dimension: 250/500/1000x24x10mm (other length can be nominated by customer)
Waterproof IP65, suitable for indoor and outdoor usage

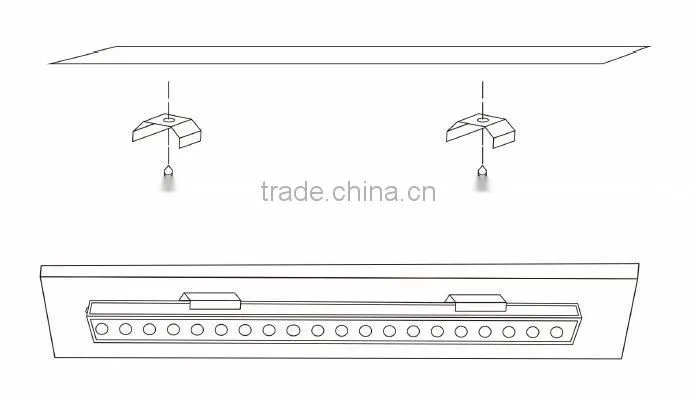

Method of Installation
1. Fix the two clips with screws
2. Put the strip into the clips
Package
With non-waterproof connector

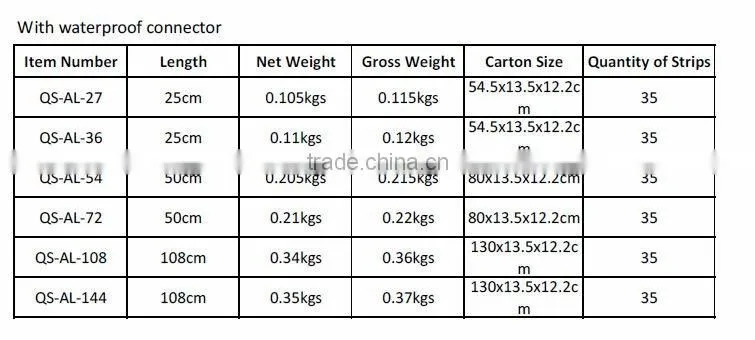

With waterproof connector
Maintenance
Protect the LEDs carefully. Do not hit them by hard items.
Use wet cloth with water to clean the surface if necessary.
Cautions
If used outside, please make sure the connector between the strip and the power supply is
waterproof, or shortcut may damage the strip and the power supply.

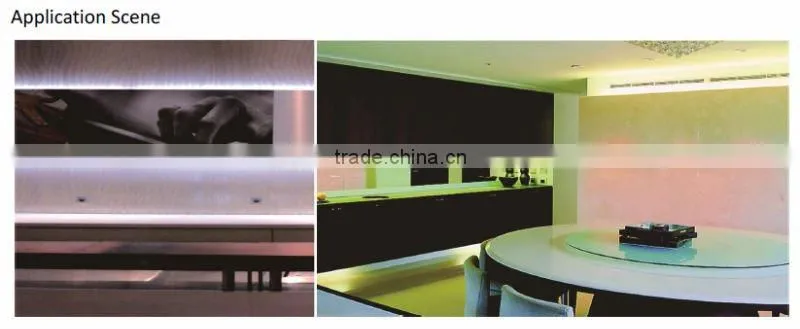

Application Scene
