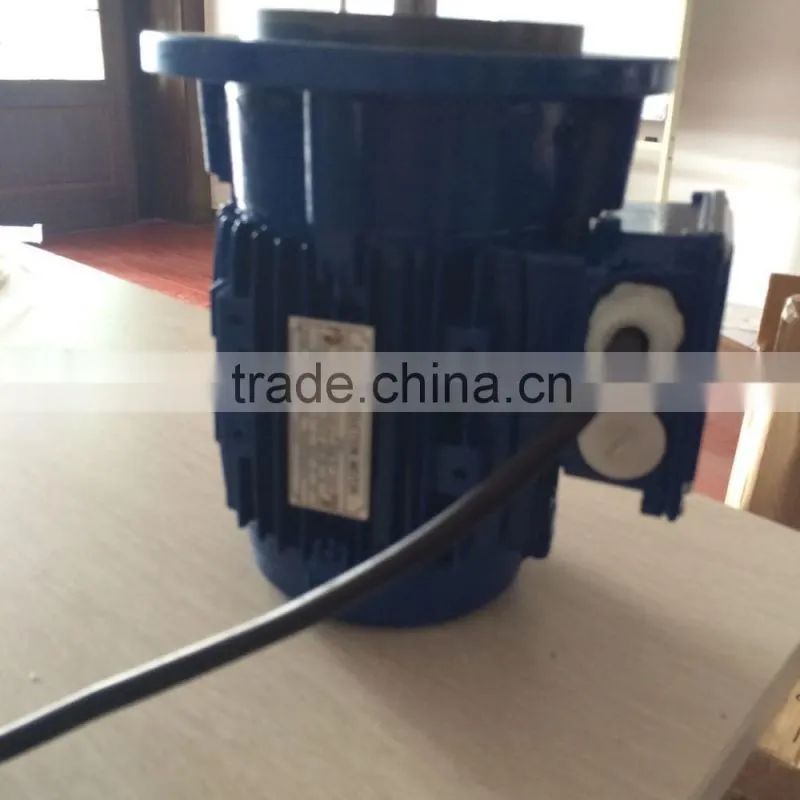

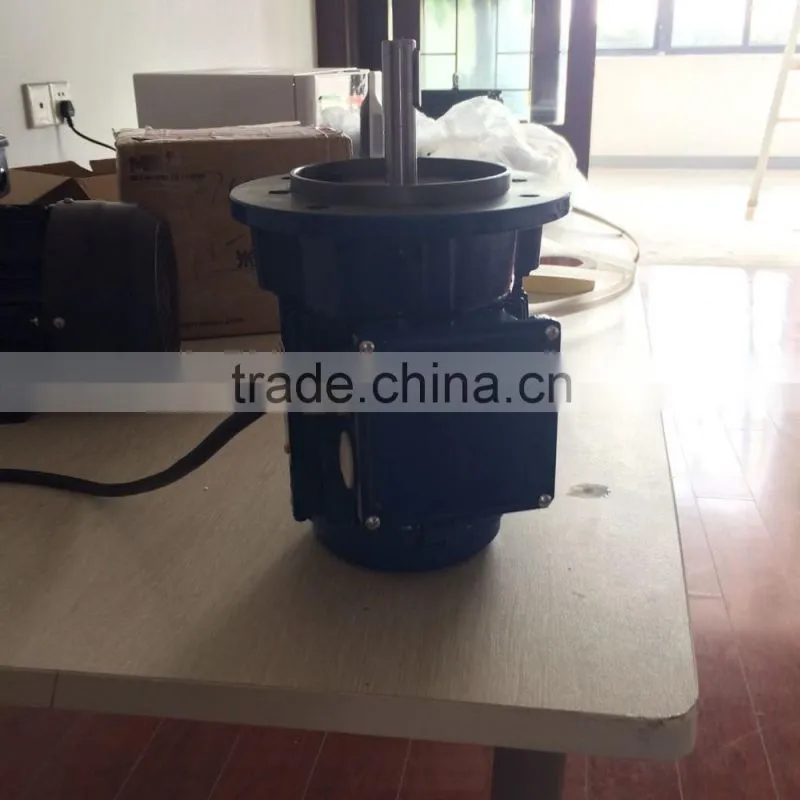

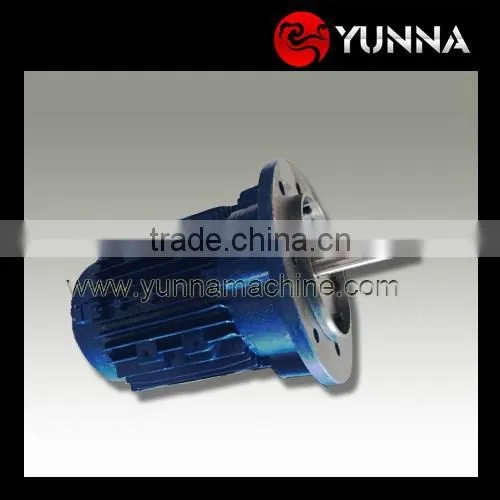

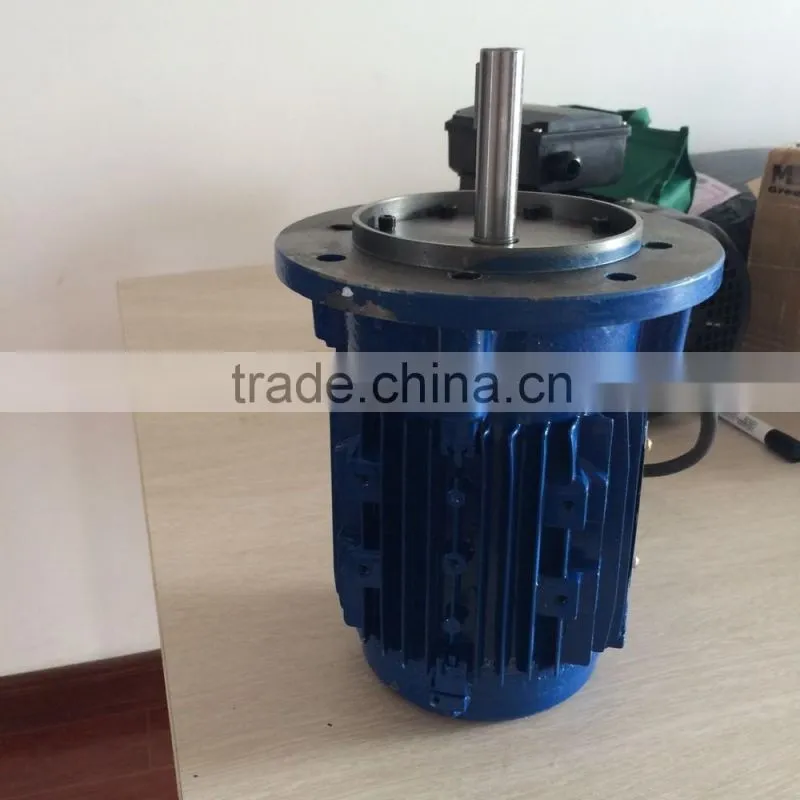

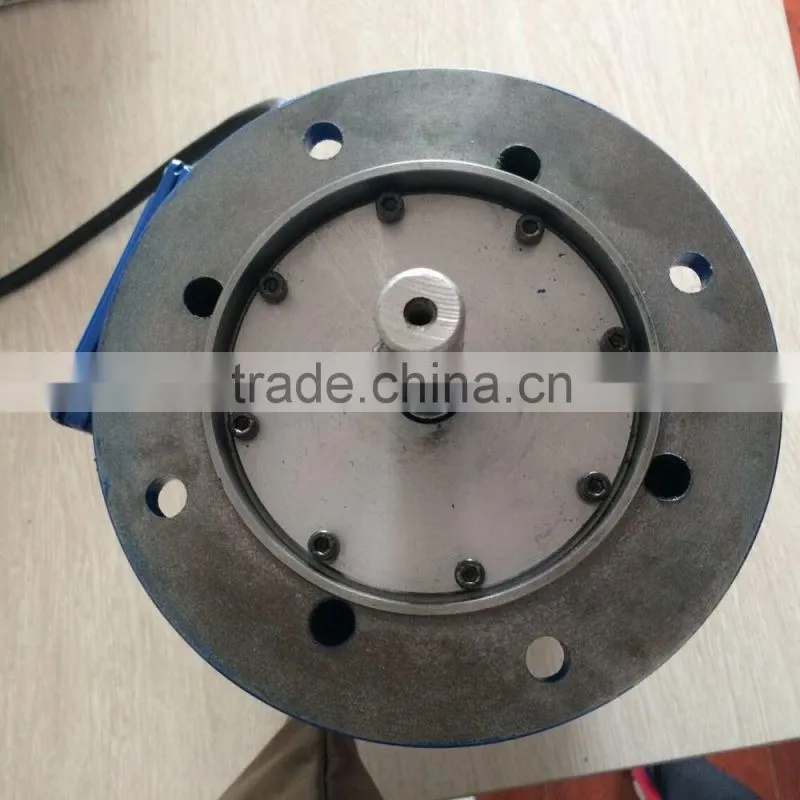

waterproof AC motor textile specialized motor with aluminum shell
Efficiency motors are widely used in petroleum, chemical, metallurgy, cement, paper and other heavy industries, especially for high intensity work loads, such as compressors, fluid pumps, ventilation equipment and others
IEC standard
Cooling IC411, protection class IP55, F class insulation, Class B temperature.
Efficiency rating: IE2, efficient detection methods based on IEC60034-2-1, 2007 execution. Eff1, the efficiency of detection methods based on IEC 60034-2, 1996 execution.
Australia efficiency rating AS / NZS 1359.5: 2004 Level 1B, B test.
Frame: 80mm to 355mm.
2, 4, 6, 8 pole optional
Rated power: 0.55kw ~ 315kw, S1 duty.
Rated voltage: 230 / 380V, 400 / 690V.
Rated frequency: 50 / 60Hz.
Ambient temperature: -20 ℃ ~ 40 ℃.
Bearing Brand: People / SKF / NTN / NSK
Wiring: 0.55-3kw use star connection
4-315kw use Delta Connection
Other optional specifications:
1. Thermal protection: the winding and / or bearing mounting PTC, PT100.
2. With tropical moisture.
3. Drive: may need to use a roller bearing, angular contact bearings, insulated bearings.
4. Special Paint: provide corresponding special paint process for the high humidity, high temperature and highly corrosive environments.
5. Stainless steel shaft extension: corrosion, stronger mechanical rigidity.
6. Junction box: from the drive end direction, can be installed on top of the motor, the left and right. (Offer flexible installation activities feet)
7. Xianluo set out and / or stuffy cover material can be used: plastic, copper, steel, stainless steel. Provides extended the lead.
8. Optional Protection class: IP56, IP65, IP66.
9. Enhanced Power Factor: 1.0, 1.15, 1.25.
10. Closed since fanless cooling solution: IC410.
11. The choice of H-class insulation and high temperature environments.
12. The compact structure of a power increase
