new designed 2015 glass laminating machine china manufcture
Specification
glass laminating machine
-Kinds of laminated glass processing
-99% production yield
-Only 0.5KW for one sqm
-PLC control
We adopt Germany heating technology Imitated by many, surpassed by none
The largest market percentage in China Supply to 10 of China Top 500 enterprises
Selling to more than 60 countries®ions No clients’ complaint in recent 6 years

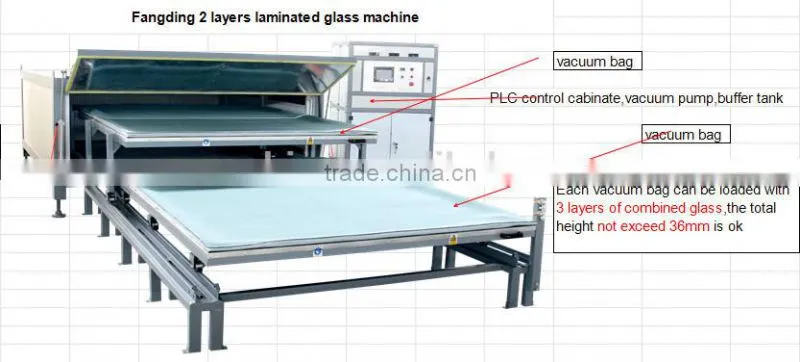

Fangding 2 layers (FD-J-1-2)eva glass laminating machine maily have three parts:furnace body,PLC control cabinate and the tray.
1.The furnace body maily for the heating,our FD-J-1-2 adopt Germany heating technology,far infrared heating system.Heating up fast and evenly.The deperature difference inside the furnace do not exceed 2 ℃.
2.The PLC control cabinate can not only adjust the current anc voltage to your local ones but also has the self-check function,any problem,you can check on the touch screen.

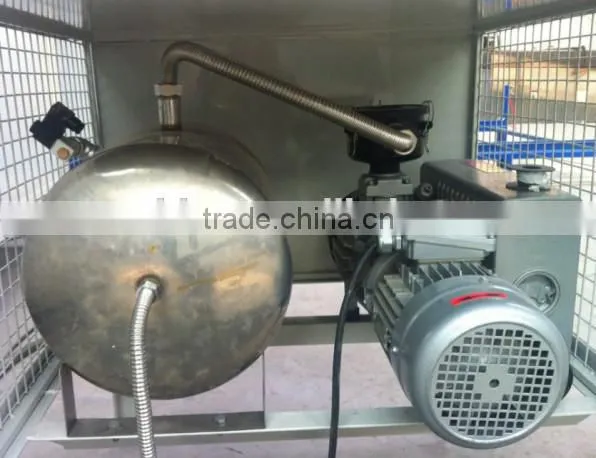

We adopt wind-cooling vacuum pump with 24 hours stable work.The pump is equipped with air filter and oil filter.What's more,the buffer tank beside of it can ensure the vacuum for the silicon bag in case of any electricity failure.

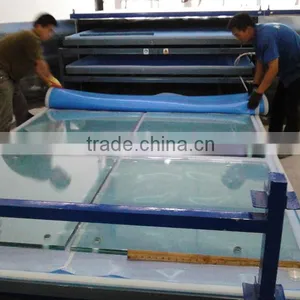

3.FD-J-1-2 has two trays.Comed with 2 vacuum bag.Each of the vacuum bag can be loaded with 3 layers of combined glass.And the vacuum bag we used features high tear resistance,good sealing and long useful lifetime.
Technical parameter:
|
Input power |
(3-phase AC 380V) |
|
total power |
10KW |
|
Processing glass size |
(max):1830*2440mm |
(min):100*100mm | |
(arch height):400mm(max) | |
(glass thickness):36mm(max) | |
|
efficiency |
(process cycle):40-60(min/furnace) |
(max processing area):40(max) | |
|
Exterior dimension |
(L)*(W)*(H):3000*2450*1090mm |
|
Working temperature |
90°C-130°C |
|
Net weight |
1800kgs |

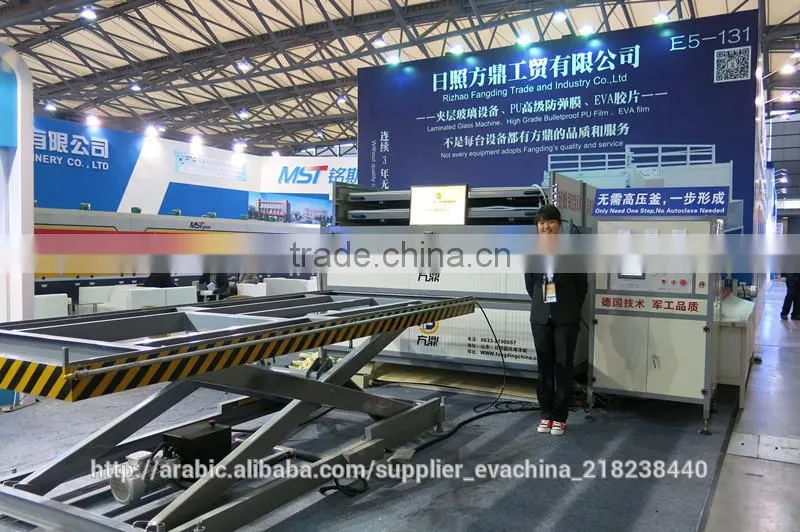

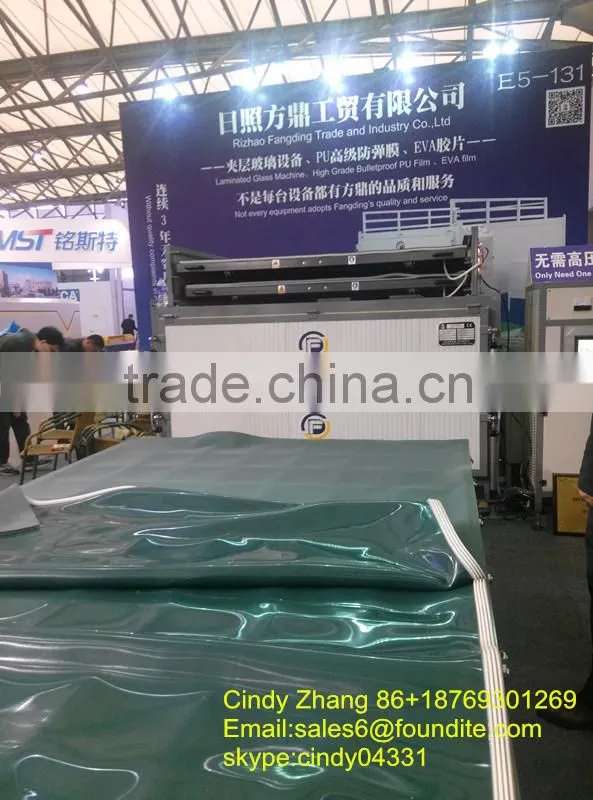

We are in 25th china glass fair

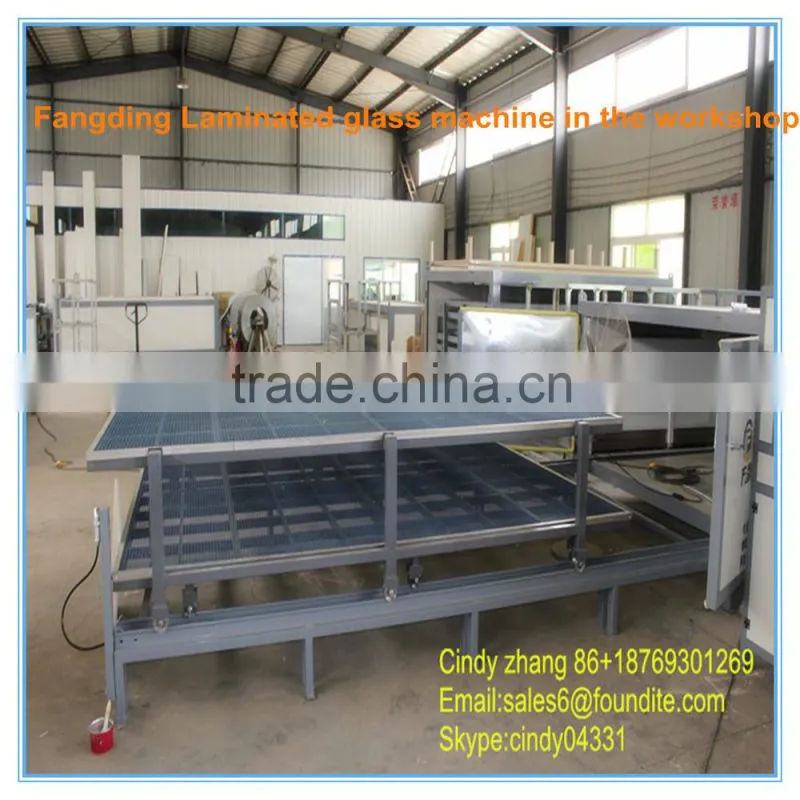

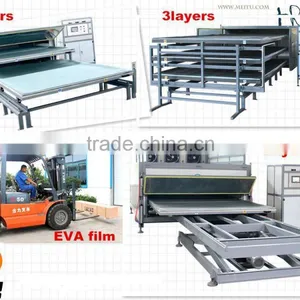

More pictures of our new deisgned machine

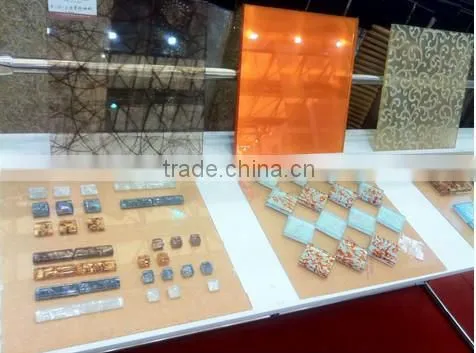

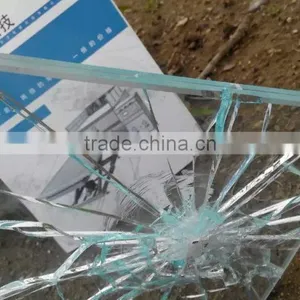

laminated glass Samples produced by our laminated glass machine
]

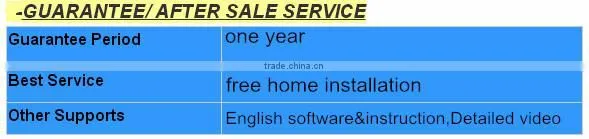

Our Service

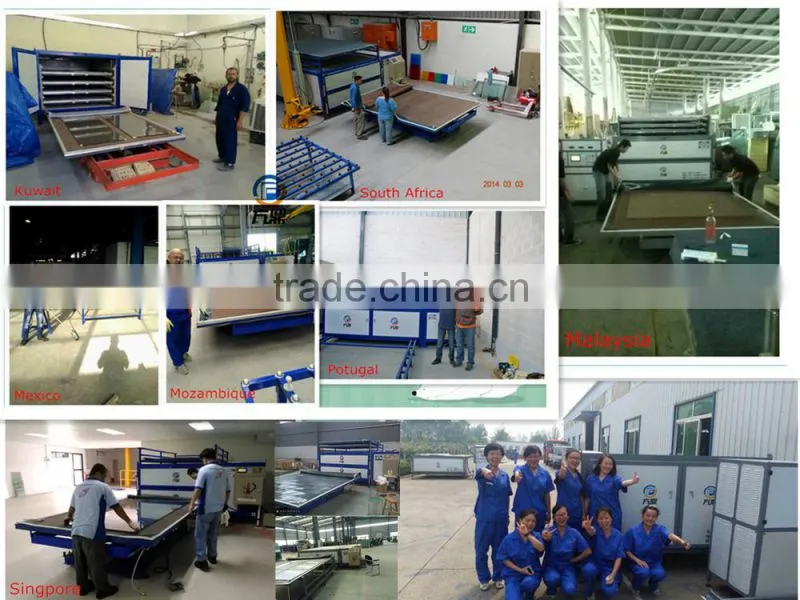

Fangding Products selling to all over the world
Any questions,you can contact Ms.Cindy Zhang by:
Free home installation
The fari in domestic and abroad
