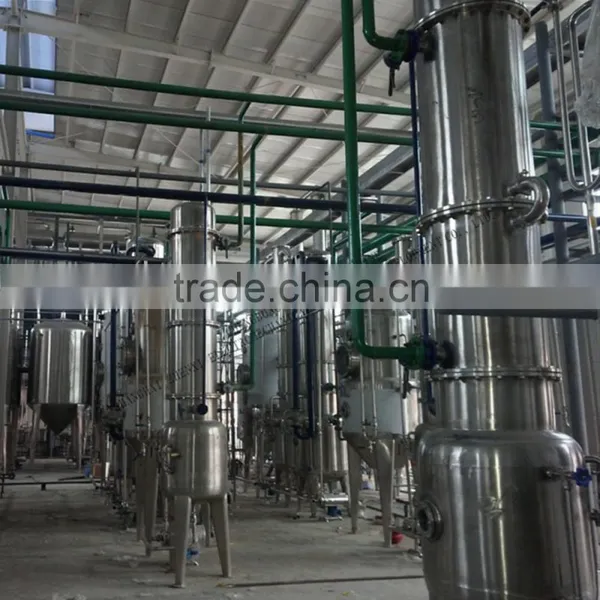

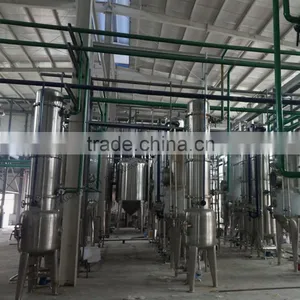

Energy Saving Pharmaceutical Single Effect Vacuum Concentrator
Multi-Function ! High Efficency ! Wide Usage !
Use
This equipment applies to Chinese medicine, western medicine, glucose, brewing, starch, oral liquid, chemical, food, MSG, dairy and other industrial alcohol recovery, can be used for small volume, variety and more heat-sensitive materials at low temperature vacuum concentration.
Feature
1. Alcohol recovery: improving the process of equipment, recovery rate reach 95%, alcohol consumption is less than 5%. Reduce 30% energy consumption, with features of small investment and hight recovery efficiency.
2. Concentrated Liquid material: the plant adopts external heating with natural circulation vacuum evaporation, has rapid evaporation speed, concentration ratio is up to 1.4; liquid is concentrated in a sealed without bubble state, the concentrated liquid is no pollution with dense taste.
3. Setted automatic drainage device, condensate water from evaporation can be drained out automatically.
Technology Parameter
| Type | DJN-500A/C | DJN-1000A/C | DJN-1500A/C | DJN-2000A/C | DJN-3000A/C | |
| Evaporating Volume(kg/h) | 500 | 1000 | 1500 | 2000 | 3000 | |
| Alcohol Recovery(kg/h) | 200-500 | 350-1000 | 500-1500 | 600-2000 | 1000-3000 | |
| Using Pressure(Mpa) | 0.15 | |||||
| Vacuum Degree(Mpa) | 0.02-0.08 | |||||
| Retrieval Degree of Alcohol | 85% | |||||
| Ratio of Concentration | 1.1-1.35 | |||||
| Outer Size(m) | LxWxH | |||||
| A | 2x1x3 | 2.2x1.2x3.3 | 2.5x1.3x3.5 | 2.7x1.4x4 | 3x1.6x4.5 | |
| C | 4.5x1.2x3.5 | 5x1.3x4 | 5.5x1.5x4.5 | 6x1.7x5 | 6.5x1.8x5.5 | |
