Specifications

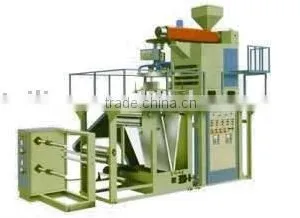

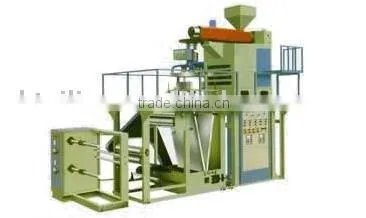

PP Film Blowing Machine1,Rotary Die
2,Back to back winders
3,High output,stable quality
4,Meet CE standard
The machine is suitable for producing PP film. It is widely be used for packing food, garment, textile, daily-use articles and industrial product etc.
Performance And Parameters:
1. Die head can be turned in 360°, it can strengthen the tension and evenness degree of film.
2. Screw and cylinder are all made of 38CrMoAlA alloy steel, and treated by nitrogen. It has an advantage of great thickness,
corrosion resistance and endurance etc.
3. Die head has been chromized, it is advantage of screw core structure ,melting material extruding evenly, and blowing film smoothly etc.
Cooling equipment is a labyrinth blow pump which has good effect. Especially,it adopts the recycling cooling water system to ensure the best transparent effect.
4. Discharging equipment adopts pressing braking winding equipment & central winding equipment, and it adopts torque motor to adjust,has the merits of smooth film, convenience operation.
| Mode | TL-PP- 45 | TL-PP- 55 | TL-PP-65 |
| Suitable Material | PP | PP | PP |
| Screw diameter | 45mm | 55mm | 65mm |
| Screw L/D ratio | 28:1 | 28:1 | 28:1 |
| Screw Barrel Material | 38CROMLA | 38CROMLA | 38CRMOLA |
| Die Size | 150mm | 250mm | 300mm |
| Width of finished products | 100-500mm | 100-600mm | 200-800mm |
| Film thickness | 0.03 -0.11mm | 0.03 -0.11mm | 0.03 -0.11mm |
| Cylinder cooling | 370w*2 | 370w*2 | 370w*3 |
| Output | 30 | 45kg/h | 60kg/h |
| Driving Motor power | 11kw | 15kw | 18.5KW |
| Air blower | 1.5KW | 1.5KW | 2.2KW |
| Pinch Roller(Dia. Width) | 165*550mm | 165*650mm | 165*850 |
| Take-up Motor | 5-60KW | 5-60KW | 5-60kw |
| Take-up speed | 0.75m/min | 0.75m/min | 0.75m/min |
| Winding speed | 5-60m/min | 5-60m/min | 5-60m/min |
| Winding motor | 5N.m | 5N.m | 6N.m |
| Overall dimension | 3.5x2x3.5m | 4.2x2.5x4 | 4.6x2.8x4.5 |
