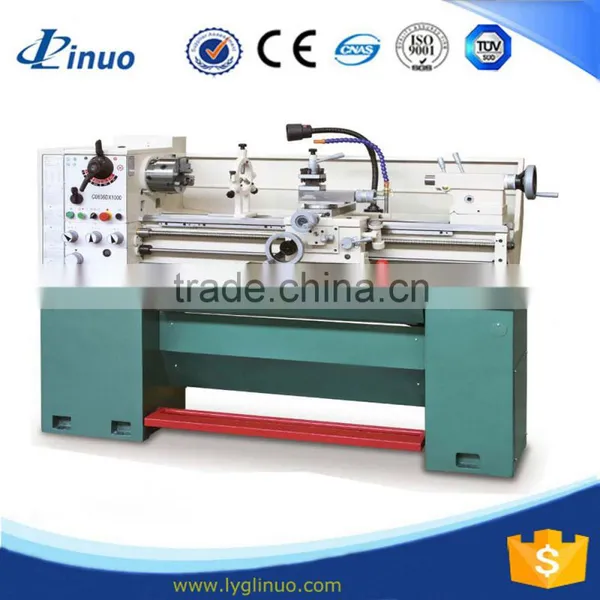

C0632D C0636D high performance bench lathe
Product Description for C0632D C0636D high performance bench lathe
Features:
No change gear in tool box.
The thread category complete, not only cutting metric thread and imperial thread, but also cutting diametral thread and module thread.
Minimum Cross feed 0.01mm/rev, Minimum Longitudinal feed 0.046mm/rev.
MODELS |
C0632D |
C0636D |
Swing over bed |
330mm(13") |
360mm(14") |
Swing over cross slide |
198mm(7-25/32") |
224mm(8-13/16") |
Swing in gap diameter |
476mm(18-3/4") |
502mm(19-3/4") |
length in gap |
210mm(8-1/4") |
|
Center height |
166mm(6-1/2") |
179mm(7") |
Admits between |
750mm(30") or 1000mm(40") |
|
Spindle bore |
38mm(1-1/2") or 40mm(1-9/16") |
|
Spindle nose |
D1-4 or D1-5 |
|
Taper in nose |
No5 morse |
|
Speeds number |
8 |
|
Speeds range |
70-2000r/min |
|
Cross slide travel |
170mm(6-11/16") |
|
Compound rest travel |
95mm(3-9/16") |
|
Lead screw thread |
8T.P.I. or 3mm pitch |
|
Feed rod diameter |
19mm(3/4") |
|
Cutting tool max section |
16mm×16mm(5/8"×5/8") |
|
Threads imperial pitches |
42 Nos. 4-112T.P.I |
|
Threads metric pitches |
44 Nos. 0.1-7mm |
|
Threads diametral pitches |
25 Nos. 16-112DP |
|
Threads module pitches |
34 Nos. 0.1-1.75MP |
|
Longitudinal feeds imperial |
24 Nos. 0.00168-0.1175"/rev |
|
Longitudinal feeds metric |
24 Nos. 0.046-3.249 mm/rev |
|
Cross feeds imperial |
32 Nos. 0.00046-0.03231"/rev |
|
Cross feeds metric |
24 Nos. 0.01-0.703 mm/rev |
|
Quill diameter |
32mm(1-1/4") or 42mm(1-21/32") |
|
Quill travel |
100mm(3-15/16") |
|
Quill taper |
No3 morse |
|
Main motor power |
1.5kW (2HP) |
|
Coolant pump power |
40W (1/16HP) |
|
Packing size (cm) |
168×76×153(750mm) or 193×76×153(1000mm) |
|
NG/GW (kg) |
510/630(750mm) or 540/645(1000mm) |
|
|
Standard Accessories: Special Accessories: | ||
Production&Workshop for C0632D C0636D high performance bench lathe
Packaging&Shipping for C0632D C0636D high performance bench lathe
Companny information for C0632D C0636D high performance bench lathe
Lianyungang Linuo Machine Tool Co.,ltd is a leading high-tech enterprise and manufacture in China for High end machine tools, has strong technical team covering full technical field.
which is specializes in exporting all kinds of machinery,such as grinding machines,CNC machine centers,CNC & universal lathes,CNC & universal milling machines,radial drilling machines,and cnc wire cutting edm machines,bandsaw machines etc.
Lianyungang Linuo Trading Co.,ltd is a Import & Export company,which is the branch company for international business.
We sincerely hope to establish a long-term cooperative relationship with you and become your true partner when you need our service.
Our services for C0632D C0636D high performance bench lathe
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. All of the questions will be replied within 24 hours
5. Warranty period: one year
During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express.
Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you.
