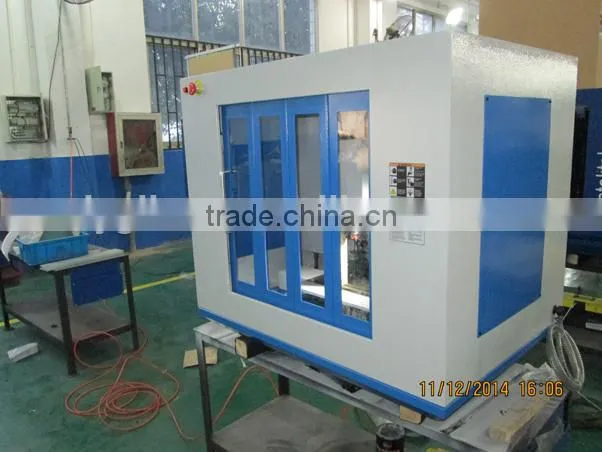

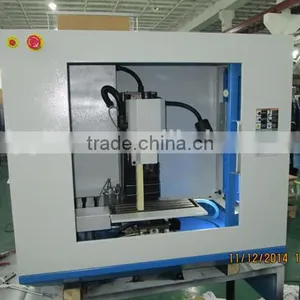

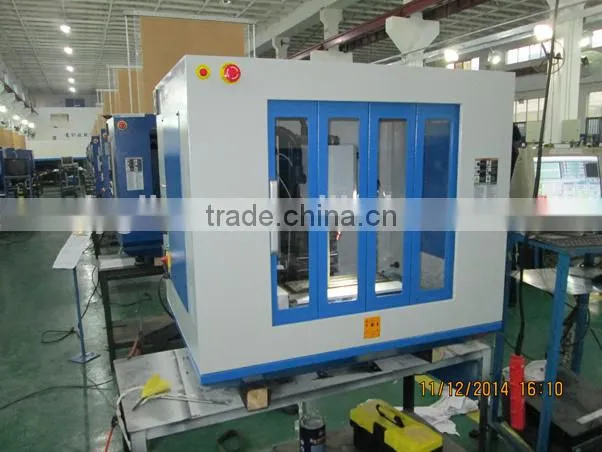

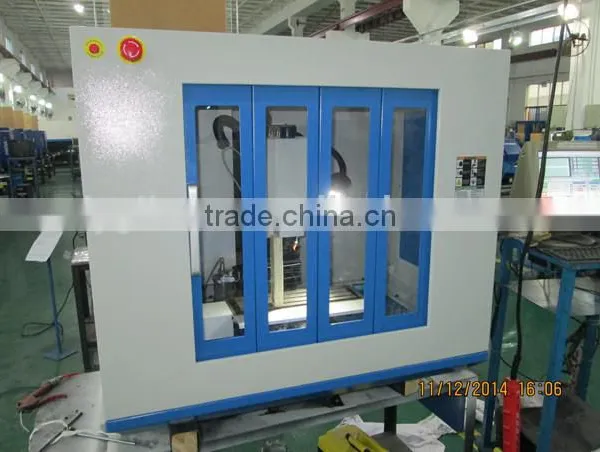

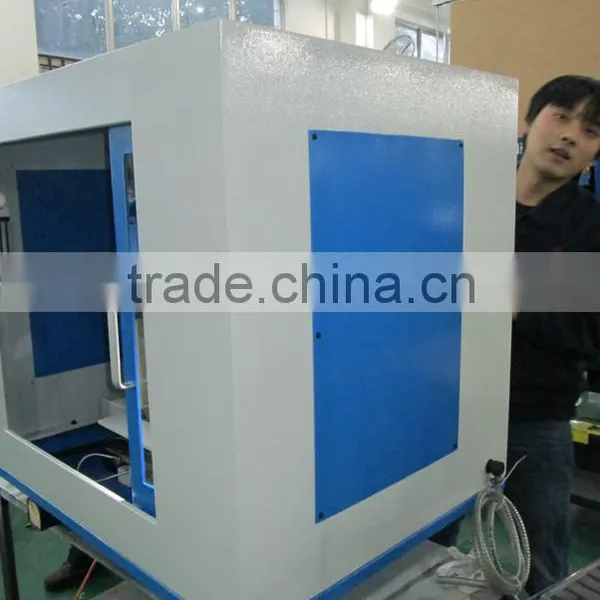

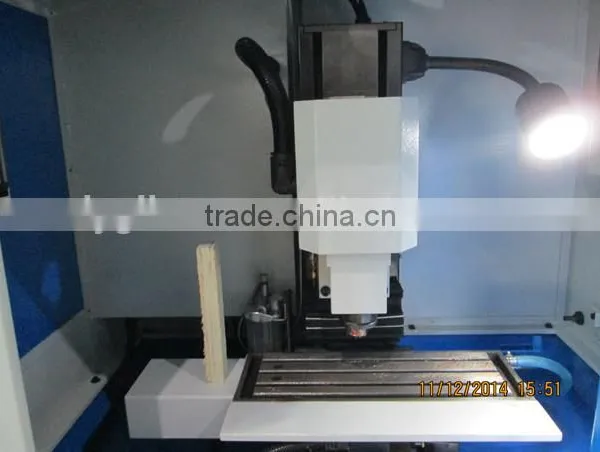

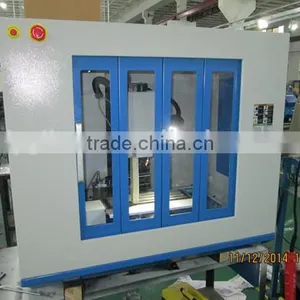

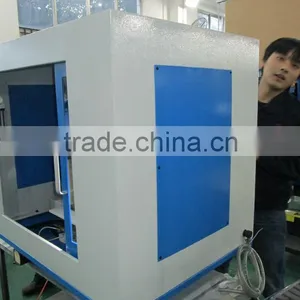

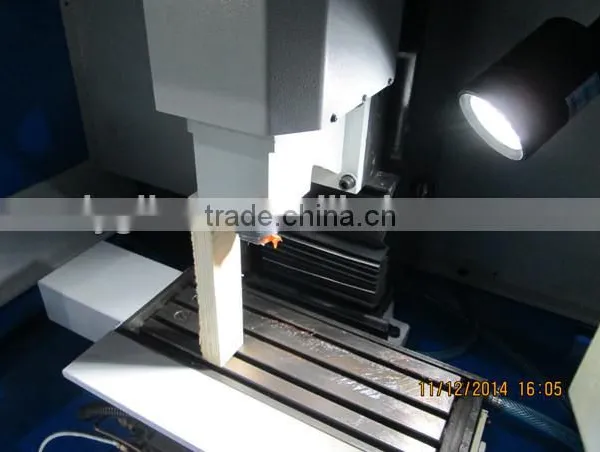

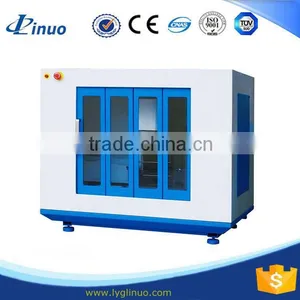

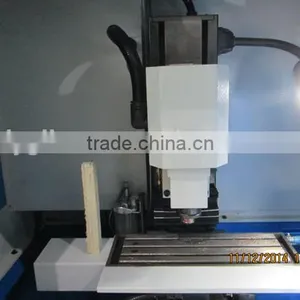

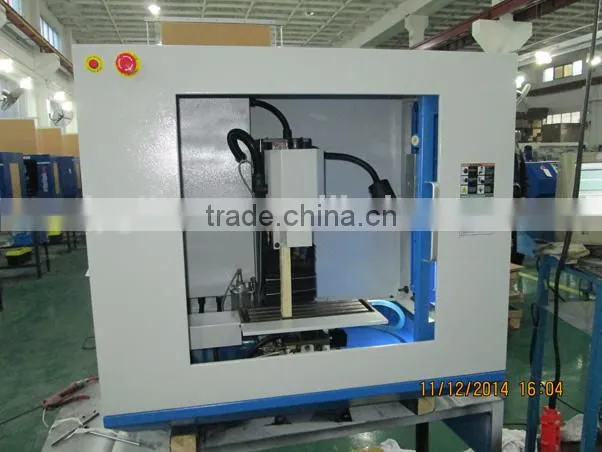

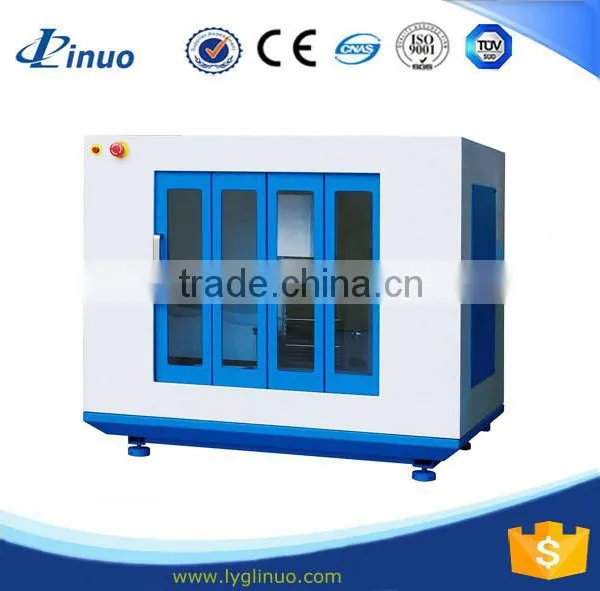

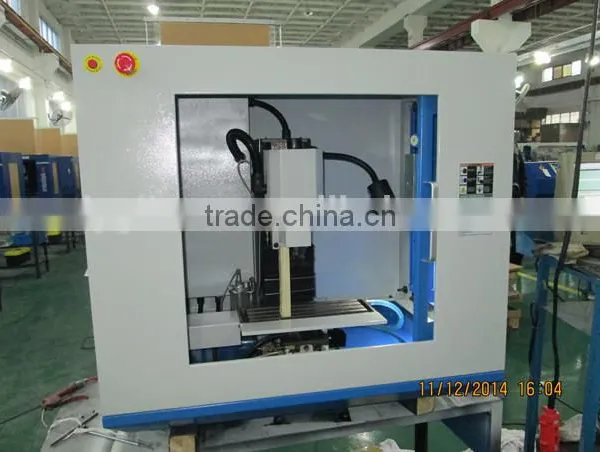

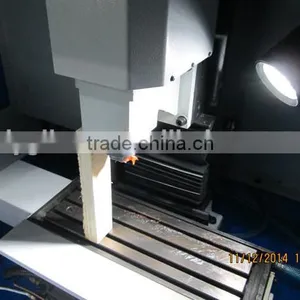

KX1S sieg milling machine
Introduction:
Model |
KX1S |
Drilling capacity |
10mm(3/8'') |
Worktable size |
400 x 145 mm (16'' x 5.7'') |
Worktable T-slot size |
8mm(0.31'') |
No. of T-slot on table |
3 |
Max. loading bearing of worktable |
20 Kg |
Table travel – X axis |
260mm(10'') |
Table travel – Y axis |
110mm(4.3'') |
Table travel – Z axis |
180mm(7'') |
Motor of X axis |
1.35N.m |
Motor of Y axis |
1.35 N.m |
Motor of Z axis |
2.2 N.m |
The max. speed of moving (X,Y, Z) |
2000mm/min |
The speed of feeding (X,Y, Z) |
500 mm/min |
Throat |
150 mm(5.9'') |
Position accuracy |
0.015mm |
Repeatability position accuracy |
0.01mm |
Spindle taper |
MT2 |
Speed of Spindle |
100-7000r/min |
Main motor power |
500 W |
Machine size (L x W x H) |
1040 x 860 x 940 mm |
Packing size (L x W x H) |
117 x 960 x 1100 mm |
Weight (n.w./g.w.) |
178/218 Kg |
FEATURES
- Safety door open control
- One shot oil lubrication pump
- Standard working light
- Additional power socket available for computer
- Professional electronic system,4th axis driver installed.
OPTIONAL ACCESSORIES
- 4th axis rotary table
- Cooling system
- Hand wheel
