X5036A Knee Type Milling Machine

Name: X5036A Knee Type Milling Machine
Brand: LINUO
SKU: 114849403

US$ 3,500 - 7,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

LINUO

Lianyungang Linuo Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name LINUO

Model Number X5036A

Type Other, knee-type

CNC or Not Normal

Voltage 380V

Power(W) 4kw

Dimension(L*W*H) 1700*1680*1880mm

Weight 2200kg

Certification CE and ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

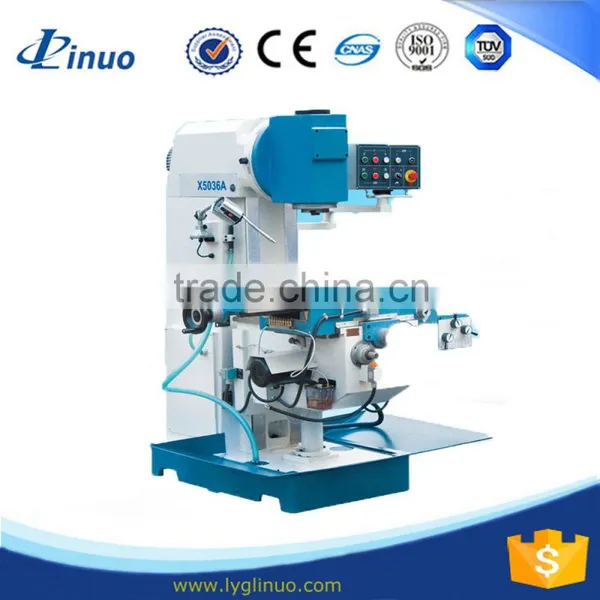

X5036A knee type milling machine

Product Description

Product Description for X5036A Knee type milling machine

Features:

1.It is a vertical milling machine,high power

2.Processing range widely

3.Automatic feed on two axis ,motorized lift on Z axis.

4.Rectangular guideway,hardened treatment

5.The rigidity of yhe spindle,strong cutting force.

6.Equipped with manual lubricating device, the lubrication on the lead screw and guideway

Specifications	X5036A
Spindle taper	ISO50
Spindle travel(mm)	600x300x400
Distance from spindle axis to column guideway(mm)	325
Distance from spindle nose to table surface(mm)	60-460
Spindle speed range(r.p.m)	60-1700 12 steps
Table size	1250*360
Main motor(kw)	4 kw
Motor for rapid device of table (X,Y)	0.75kW
Motor for vertical device of table(Z)	0.75kw
Range of longitudinal cross travel	30-740mm/min 8 steps 1080mm/min (rapid)
Z speed of table (mm/min)	590
T-slot (number-width-disance) (mm)	3-18-80
Cooling pump motor power (kw)	0.09
Cooling pump flow	25L/M
Overall dimensions(mm)	1700×1680×1880
N.W/G.W (kg)	2200/2300
