Specifications

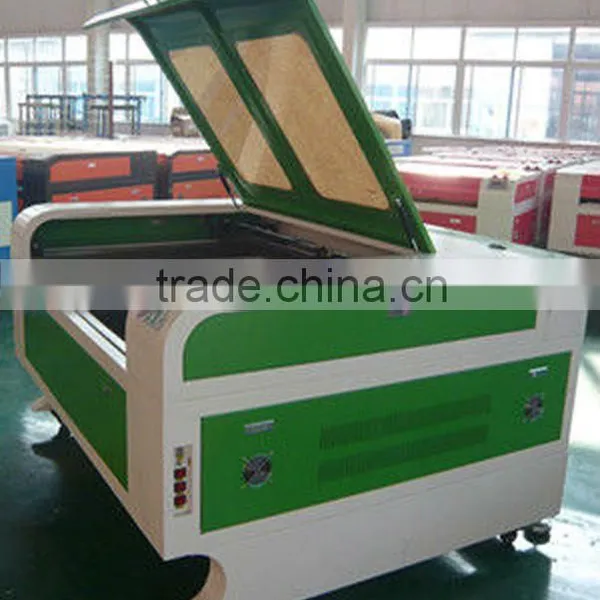

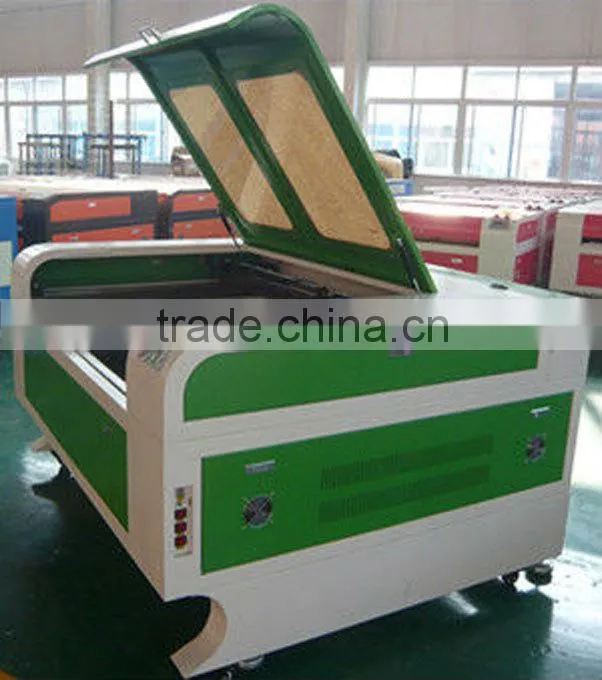

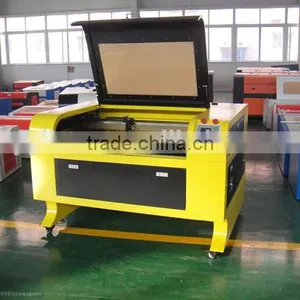

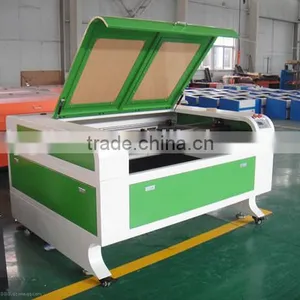

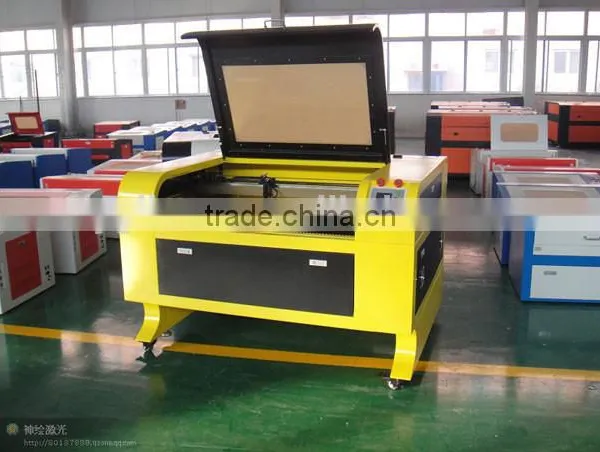

1.G1290 laser engraving machine for wooding area:1200x900mm
3.capacity:260 sets/M
4.certificate: CE, FDA

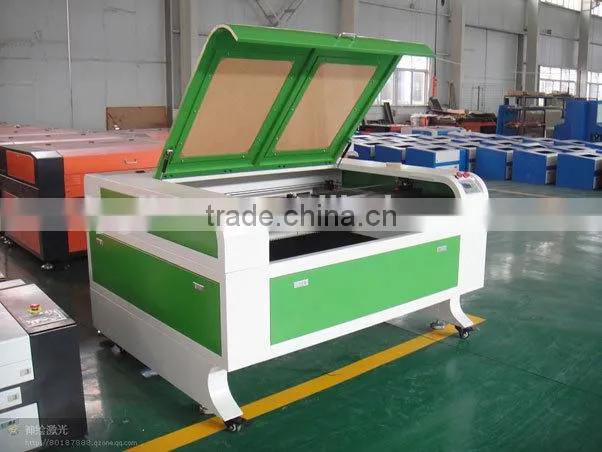

laser engraving machine for wood
Applicable Materials:
Leather, cloth, wool, fur, acrylic, plexiglass, wooden board, plastic, resin and other non-metal materials.
Applicable Industry:
Processing industries of large-scale engraving and cutting ,such as garment, leather ,clipping ,cutting of template ,package and printing , advertisement decoration ,building upholster ,artwork,computer embroidery,
paper product ,acrylic product ,middle density board etc.non-metal sheet precision cutting and other industries.
Technical parameters >
Laser power : |
60W(70w,80w,100w -optional) |
Laser type: |
Hermetic CO2 glass tube |
Power supply: |
AC220±10% 50HZ/AC110±10% 60HZ |
Working area: |
400mmx500mm |
Max moving speed: |
1500mm/s |
Laser engergy control: |
1-100 set by hand or software |
Worktable: |

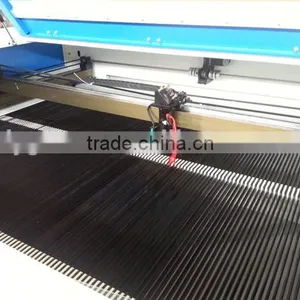

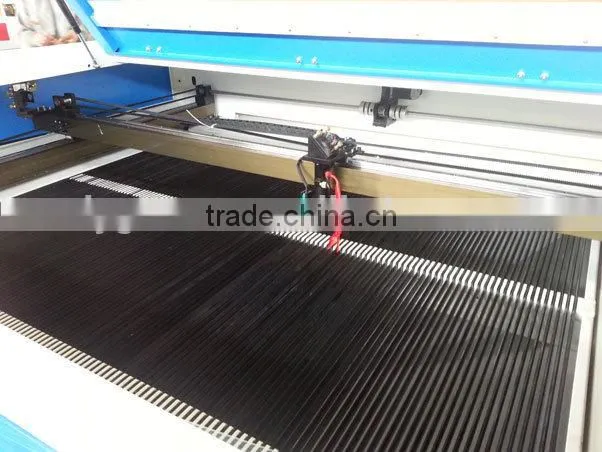

Honey comb worktable/aluminiumknife/steel nail(optional)/up and down |
Locating precision: |
<0.01mm |
|
Min shaping character:
|
Character:2x2mm,letter:1x1mm |
Operating temperature: |
5oC-35oC |
Resolution ratio: |
4500dpi |
Control configuration: |
DSP |
Data transfer interface: |
USB(offline) |
System environment: |
WINDOWS 2000/WINDOWS XP |
Cooling way: |
Water cooling and protection system |
Graphic format supported: |
The file which CoreDraw,Photoshop,AutoCAD can dentify(BMP,GIF,JPGE,PCX,TGA,TIFF,PLT,CDR,DMG, DXP,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF,CGM,SVG, SVGZ,PCT,FMV,GEM,CMX) |
Compatible software |
CorelDraw,AutoCAD |
Cutting thickness |
0-20mm(depends on different material) |
Color separation |
Separation of cutting up to 256 colors |
Sloping engraving |
Yes,slope can be designed discretiarily |
Cuts off the water, supply the protection |
yes |
Machine dimension |
1480x1000x1170(mm)/ 1570x1000x1170 |
|
1600x1080x1250mm/ 1700x1180x1350 |
Net weight |
200kg/220kg |
Gross weight |
380kg/360kg |
packing |
Plywood case |
Optional parts |
High-grade cooling system imported focus lens duoble-head cylinder rotary attachment irregular rotary attachment |
