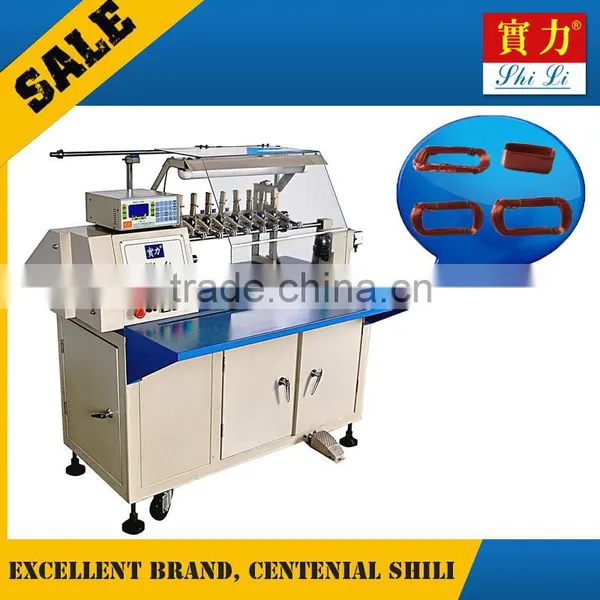

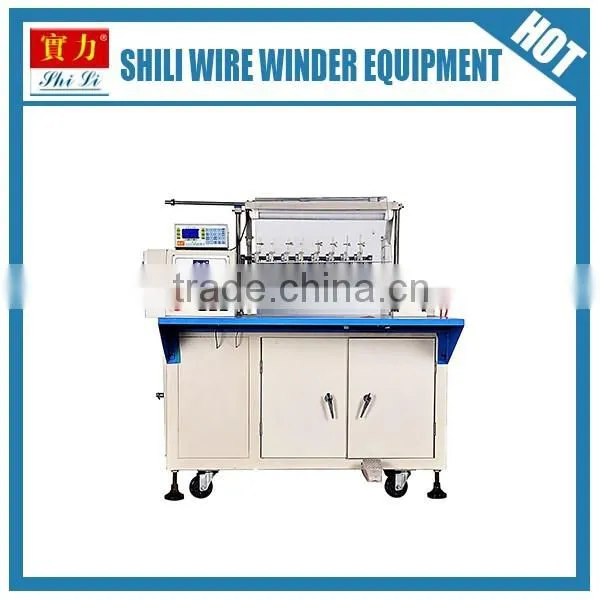

SRA22-8 heigh precision wire to wire layer winding motor coil winding machine
Main configuration:
a. Row of thread with eight winding head, the winding head length and elevation can be easily adjusted.
b.Equipped with mobile wire frame (including eight group bobbin and eight spools ,size is 120mm × 300mm diameter ).
c. With two mold spindle :dimensions 16 × 16 × 630mm
d. Supply frame size is 800 × 800 × 780mm.
e. Install brake resistors, the position more accurately
Descriptions of automatic coil winding machine
Spindle number |
8 |
Wire size range |
0.1-0.6mm |
Loop diameter |
260mm |
Max wire distance |
9.99mm |
Winder width |
180mm |
Max speed |
0-3500 turn/min |
Input power |
220V 50HZ/60HZ |
spindle motor |
AC1/2three phase motor+1HP transducer |
winder motor |
stepping motor |
Machine size |
1320×900×1320mm |
Package size |
1370×1420×1300mm |
net weight |
200kg |
gross weight |
240kg |
Application range:
Can winding a variety of motor coil groups, including industrial motors, air conditioner
motors, washing machine motors, fan motors.
Details of automatic coil winding machine
| Europe: | Germany,Czech Republic, |
| Russia, | |
| UK, France | |
| Bulgaria, | |
| Italy | |
| North America: | USA, Canada, Mexico |
| South America: | South America |
| Australia | Australia |
| Asia : | China, |
| Singapore , Malaysia , Indonesia ,Vietnam, Tailand,Myanmar, | |
| Bengal,India, Pakistan, | |
| Turkey,Iran,Syria, ,UAE | |
| Africa: | Egypt, Tunis, ,Algeria, Dominica, |
| South Africa |
