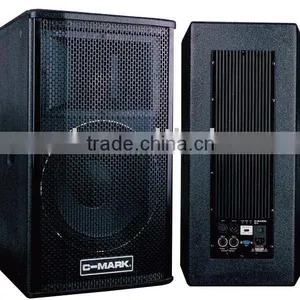

Help CenterK15 Network Active Loudspeaker
Related Products
-
C-Mark K12 Network Remote Controllable 2 Way Active SpeakerNegotiableMOQ: 1 Piece -
C-Mark K30 Network 3 Way Active LoudspeakerNegotiableMOQ: 1 Piece
-
C-Mark K15 Active Network LoudspeakerNegotiableMOQ: 1 Piece
-
C-Mark K18 Network 18' Subwoofer Active LoudspeakerNegotiableMOQ: 1 Piece
-
C-Mark K15M Network 2 Way Active High Quality Audio SpeakersNegotiableMOQ: 1 Piece
Specifications

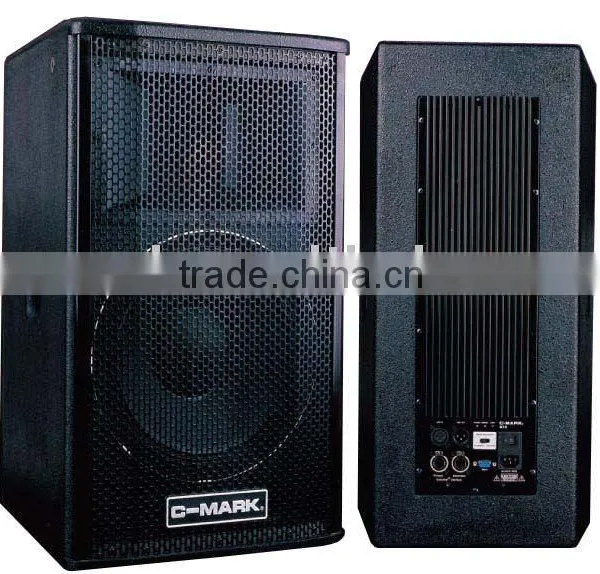

C-MARK K series Network active loudspeaker, with function of network transmission and long-distance control and monitoring, withC-MARK K series Network active loudspeaker, with function of network transmission and long-distance control and monitoring, with built-in full digital amplifier, is a full-range loudspeaker.
K12: 2-way, 12 woofer+44T tweeter
K15: 3-way, 15 woofer+74Tmediant+44T tweeter
K30: 3-way, dual 15 woofer+74Tmediant+44T tweeter
Features of K series loudspeaker:
1. It adopts CobraNet protocol for transmission, 20 bit conversion rate, and 48KHz sampling frequency, equivalent to high sound quality in radio and broadcast.
2. by using 1 piece of CAT5 and RJ45 connectors, audio transmission, control, and monitoring can be achieved, and the installation is very easy.
3. The woofer and tweeter are respectively driven by class D amplifies, so clear sound, good sound image and powerful bass can be achieved.
4. You can use RS1200 software of AUDIONET to set router and DSP control, so its easy to operate, and suitable for many applications. Wireless control can be achieved.
5. Cooling without fans. Environmental protection design, without noise.
6. Open choices of 110V+20%/220V+20% power supply.
Specifications
HI OUTPUT POWER 8Ω/800Hz 200W
LOW OUTPUT POWER 4Ω/8KHz 400W
INPUT SENSITIVITY 0dB
INPUT IMPEDANCE LINE 20KΩbalance10KΩunbalance
CROSSOVER2KHz
FREQUENCY RESPONSE HI 2K-20KHz @8Ω
LOW 20Hz-20KHz @4Ω
SLOPE 24dB
THD+NHI 0.03%(8KHz,1W)
LOW 0.01%(800Hz,1W)
SPLHI 105dB (A weighted)
LOW 110dB (A weighted)
POWER SUPPLYAC110V/AC220V to kinds power supply
FUSE TUBE CURRENT12AAC110V 6AAC220V
