Help CenterC-MARK C-782T Series Wireless Microphone
Related Products
Specifications
UHF frequency transmissionMini CPU control
Unique software program ensures post amp and speakers's safety
Audio/noise lock

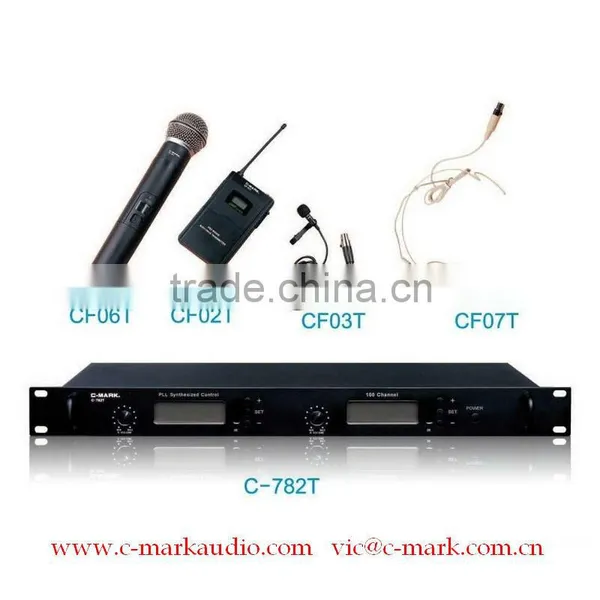

C-MARK C-782T wireless microphone is adopted by UHF frequency transmission. This is controlled by mini CPU control (PLL integrated Technology) which enhances the frequency more stable. The working range is 710MHz~865MHz where programmed 100 frequency combinations make the channels interchangeable. Advanced audio and noise lock by dual mute control technology, avoids the interruption from any noise signal. The anticipated decline function of CPU, settles the weakness of interval break at the audio output from working distance of receiver. The working condition of receiver is illustrated by LED backlight display. So it is more visible to operate. The main body provides balanced and unbalanced output. Both receiver and handheld microphone adopt unique software program which controls power-on and power-off. No matter what situation the whole system is in, there is no shock from power-on and power-off, and therefore the safety of post amp and speakers is ensured.
FEATURES
1. PLL design.
2. Functions of UHF 100 frequency PLL digital lock and automatic message selection;
3. Built-in mute and audio code lock circuit destory interference.
4. Specially designed circuit of anti-interference.
5. Super-High dynamic double compression diversity technology. high and low vocal Frequency input separately, perform excellent dynamic features.
6. Independent power switch, providing balanced and imbalanced outputs and such Function Buttons as DOWN, UP, MENU, SET, and so on available
• C-782T Wireless Receiver
Carrier Frequency Range: 710MHz---865MHz
Frequency Preparation: PLL
Total Channel: 100 CH
Frequency Response: 50Hz---18KHz
Receiving Distance: 300 feet
Bandwidth:24MHz
Carrier Stability: ±5PPm ≤ 10KHz
Image Reject: >80dB
S/N Ratio:>105dB(1KHz-A)
Sensitivity:-105dBm(12dB S/N AD)
T.H.D: < 0.5% @ 1kHz
Audio Output Impedance: 2.2kΩ
Audio Output Level: -12dB
Mute Mode:Mute & Tone Key Squelch
Function Display : LCD
Power Supply:12-18v Dc, 600mA
Output Connection:balanced XLR connector, or unbalanced TRS 6.3 mm connector
• CF06T Handheld Transmitter
Dynamic Range: >110dB
Carrier Phase Errors: ±0.005%
Deviation: ±48KHz
Sub-harmonic: <-60dBc
RF Output Power: 10mW
Power Consumption: ≤100mA @ 3 V
Power Supply:Um3, AAA 1.5v×2 ″
Function Display: LCD
• CF02T Body Pack Transmitter
Frequency Preparation: PLL
Carrier Frequency Range: 710MHz---865MHz
RF Output: 10mW
Sensitivity: ± 0.005%
Bandwidth:24MHz
Frequency Interval: 75 KHz
Switchable Frequencies:320CH
LCD: Frequency, Battery Volume
Control Mode:Power Switch,Mode setting,AF, Frequency Up/Down,HOLD Function
Image Rejection: <-50 dBC
Audio Response: 40Hz-18KHz
Battery:UM3, AA 1.5V*2
• CF07T Headset Microphone
Cartridge:Back Electret condenser
Directional Pattern:cardioid
Acoustical operating principal:Pressure Gradient ,FET preamp
Frequency Response: 50-18000Hz
Sensitivity: -42dB(7.9mV/Pa)
Impedance:2.2KΩ Up to power supply output circuit change of body pack transmitter and microphone
Load Impedance:Min 11KΩ change according to power supply output circuit change of body pack transmitter and microphone
Equivalent Sound Leve:25 dBA
Maximum SPL:130dB(Harmonic Distortion ≤ 0.5% 1000 Hz)
S/N Ratio:70dB
Dynamic Range: 113dB
Power Supply:1.5V-10V DC
Current Consumption:3.5mA
Output Connection:3 pin or 4 pin mini XLR connector or 3.5mm connector
• CF03T Collar-worn Microphone
Cartridge:Back Electret condenser
Dimension:Φ6.0X5mm
Directional Pattern: Cardioid
Frequency Response:50Hz-16KHz
Sensitivity:-45dB±3dB/Pa (1KHz)(5.6mV/Pa)
Output Impedance:250Ω±30%
Load Impedance(Min) :1250Ω
Equivalent Sound Level:21dBA
Maximum SPL:130dB(harmonic distortion ≤ 0.5% 1000 Hz)
S/N Ratio:70dB
Dynamic Range:113dB
Voltage:1.5-10V DC
Wire:Φ1.5*1.2m
Outer Size:15mmX15mm
Weight:About 20g
Color:Black(Color Negotiable)
Output Connection:3 pin or 4 pin mini XLR connector or 3.5mm connector
