Specifications
MSLCU04 color doppler ultrasound1.Trolley color doppler ultrasound unit
2.Digital color doppler ultrasound
3.Best ultrasound
MSLCU04 Color doppler ultrasound
We are professional supplier specialized in all kinds of color doppler ultrasound, ultrasound scanner, ultrasound system.
Main features of color doppler ultrasound
With high precision digital beam forming and Doppler ultrasonic imaging technology, the MSLCU04 incorporated the latest image processing technologies such as THI, speckle reduction, multi-beam parallel processing and efficient full-digital image management system is easy to acquire better image.
Special measurement software packages, flexible configuration and ergonomical design greatly increase operators clinical diagnosis accruacy and analysis efficiency.
Technical specifications of color doppler ultrasound
Application
Abdomen, OB&GYN, cardiology, vascular and small parts, urology, musculoskeletal, pediatrics and etc
Displaying mode
B,2B,4B,left&right B|M,B|D,PW,M,B mode part zoom; B|C|D,B|C|M,B|C duplex,PW,CFM,CPA
Signal processing
Full-digital beam forming, dynamic filter, orthogonal demodulating, space-time filter, dynamic real-time receiving focusing, RDA, DRA, spectral processing, CFM processing.
Image processing
THI, speckle-reduction, color coder, frame averaging, micro- angle adjustment, wall filter, 256 grey scale, scanning angle/width control, composit processing of tissue and blood flow image
General measurement
B mode: distance, angle, perimeter and area (ellipse method, Trace method), volume, histogram, cross-section diagram
M mode: cardiac rate, time, distance, speed.
Measurement & report packages
GYN(four edition for GA calculation), cardiac, vascular, urology, andriatrics, peripheral vascular, multiple births, orthopedic surgery and etc.
Storage function
Probe parameter, image, cine loop, measurement data and report.
Cine loop
Operated by automatically and manually, speed optional, searching cine loop, forward/
backward cine loop
Input/output interface
VGA, network, USB, VIDEO, parallet communication port, serial communication port.
Standard configuration
Main unit, 3.5MHz convex probe,17" LCD monitor, 3 probe connectors, DVD-RW, 6 USB ports, 7.8MHz high-frequency linear probe, free arm.
Optional configuration
3.5MHz micro-convex probe, 7.0MHz transvaginal probe, color video printer, laser printer, DICOM3.0.

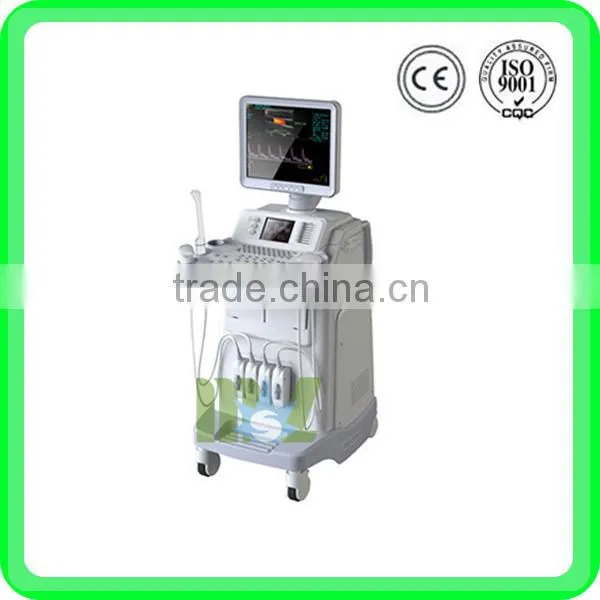

Image of color doppler ultrasound
