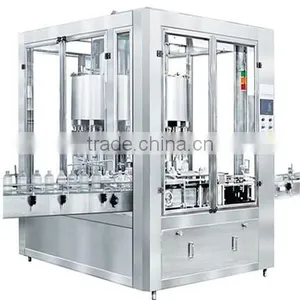

Help CenterBest Price Automatic PLC Controlled Piston Filling Mchine, Rotary Piston Filling Machine
Related Products
-
Automatic PLC Controlled Piston Filling Mchine, Filler for Glue, Piston Honey Filling Machine FillerUS$ 1 - 5,500MOQ: 1 Set -
Big/Small Volume Filling Machine, Filler for Shampoo and Lotion, Cream Filling MachineUS$ 1 - 5,500MOQ: 1 Set
-
Automatic Filling Machine for Kinds of Liquid, Mutil Function Filling Machine for White GlueUS$ 1 - 7,896MOQ: 1 Set
-
Filling Machine for Liquid, Automatic Liquid Filling Machine, Automatic Beer Filling MachineUS$ 1 - 7,896MOQ: 1 Set
-
Soybean/Olive Oil Filling Machine, Automatic Honey Filling Machine, Filling MachineUS$ 1 - 6,000MOQ: 1 Set

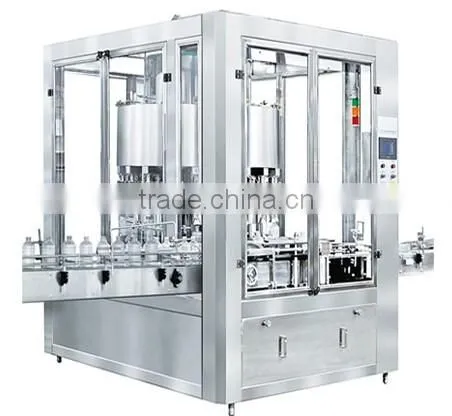

Automatic PLC Controlled Piston Filling Mchine, Filler for glue, piston honey filling machine filler
Major Characteristics
1,With supermatic productivity and high automation,the rotary piston machine is new-generation quantitative filler.The piston cylinder is totally controlled by computer.And the whole filling process combines mechanism,electrictity,photics and pneumatic together.It also employs internationally advanced technology of the same kind.
2,Thanks to the integration of mechanics and electrics,filling specifications can easily be changed by altering parameter on touch screen control panel.Filling volume of each filling head can be adjusted respectively.The computer has function of memorizing the related parameters of each packing specifications,so that it can save time for the second adjustment.
3,During the machine cycle,the key parts are protected by integration of mechanics and electrics.if there is anything abnormal,it will automatically stop and alarm,then the touch screen will hint the abnormal part where it is.
4,Based on design of water-proof and pneumatic protected,so there is no pollution.
Main Performance parameter:
1,Outline Dimension(L×W×H):2400mm×2200mm×2200mm
2,Number of filling Head:20
3,Bottle Application: Diameter: Φ40mm~Φ100mm Height:80 mm~280mm
4,Packing Volume:50ml~1000ml
5,Production Capacity:≤12000 bottles/hour(tested by water)
6,Filling Error:50ml~200ml≤±1ml,200ml~1000ml≤±2ml
7,Power Supply:380V
8,Power of host machine:4.5kW
9,Air consumption:0.4Mpa~0.65Mpa clean and stable compressed air
| Type | Heads | Suitable bottles | Capacity (bottle/hour) |
Precise | Dimension | Power | Power source | Air source | Note |
| DGP-Z-20X | 20 |
Round bottle Height: 80-280mm Diameter: Φ40-100mm Drum Length: 80-120mm Width: 0-80mm Height: 80mm-280mm |
Round bottle:10000 Square barrel:8000 |
≤±3ml | 2400*2200*2200 | 4.5 | 220V;50HZ | 0.6MPa | Take water as material |
| DGP-Z-18X | 18 |
Round bottle:9000 Square barrel:7000 |
2400*2100*2200 | 4.5 | |||||
| DGP-Z-16X | 16 | Round bottle:7000 | 2400*2000*2200 | 3.5 | |||||
| DGP-Z-12X | 12 | Round bottle:5000 | 2000*1500*2200 | 3 |
Samples
Our Workshop
We will design the machine up to your special request and assure every machine you choose from us is the right and best one.
More questions, could you pls feel free to find us at any time!
