MANUAL AND AUTO START CONTROL MODULES
Deep Sea Generator Controller DSE701 Genset Controller (Replacement)
We provide good quality replacement model for Deep Sea DSE701AS/ DSE701MS Controllers with very reasonable price!

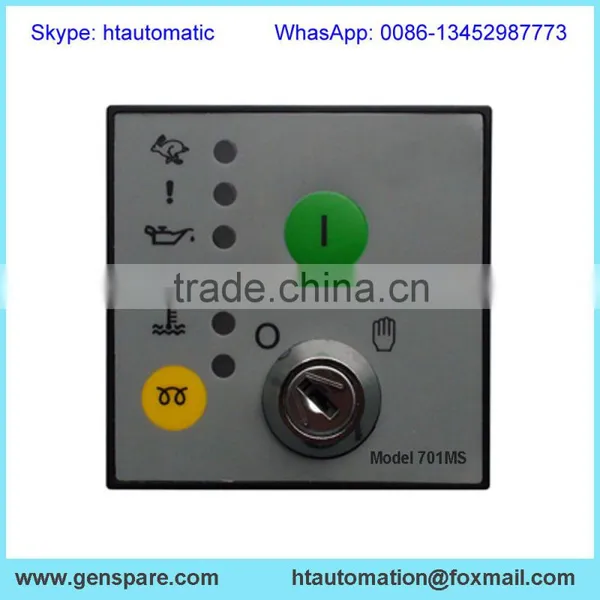

Manual Start Module: DSE701MS

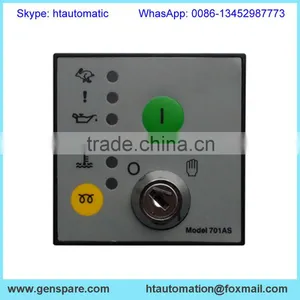

Auto Start Module: DSE701AS
The Brands mentioned here are for reference purpose only, our parts can exactly replace the original ones.
We not only provide products, but also special services:
² One year Quality Warranty;
² Customer appointed Express Delivery: DHL/ UPS/ TNT/ FEDEX/ EMS/ SF/ ARMEX and etc.;
² Customer appointed shipping value: saving customs taxes when making customs clearance;
² On-line Service: Skype / Yahoo Messenger / WhatsApp / Wechat;
² Other services: multitudinous customized services.
The DSE701 Generator Controller is available in Manual and Auto Start versions, offering an excellent range of engine monitoring and protection features. The module offers inputs to monitor low oil pressure, high engine temperature and overspeed and the manual start version also has a user-defined auxiliary input. Auto Start versions also include an input option for a start signal from a remote location.
When the module detects any of the above faults it will light the warning LED on the front panel.
The Deep Sea 701 Genset Controller also has the capability to monitor battery charging by utilizing the WL terminal on the charge alternator. On detecting a battery charging fault, it will light the warning LED on the front panel.
KEY FEATURES
• Manual start and remote start versions
• Remote start input (auto start version only)
• Auxiliary shutdown input (Manual start version only)
• Engine monitoring and protection
• LED indication
• Engine pre-heat
• Front panel mounting
KEY BENEFITS
• Multiple engine parameters are monitored simultaneously
DC PROVIDE
CONTINUOUS VOLTAGE RATING
8 V to 35 V continuous
CRANKING DROPOUTS
Able to survive 0 V for 50 mS, providing provide was at least 10 V before dropout and provide recovers to 5 V. This is achieved without the need for internal batteries.
OUTPUTS
START
Solid state 1.2 A negative grounding terminal
RUN
Solid state 1.2 A negative grounding terminal
PRE-HEAT
Solid state 1.2 A negative grounding terminal
GENERATOR
VOLTAGE RANGE
15 V - 333 V AC (L-N)
FREQUENCY RANGE
3.5 Hz to 75 Hz
DIMENSIONS
DSE701 OVERALL
72 mm x 72 mm x 38 mm
2.8” x 2.8” x 1.5”
Excludes key switch
DSE701 PANEL CUT-OUT
68 mm x 68 mm
2.7” x 2.7”
MAXIMUM PANEL THICKNESS
8 mm
