Low Price Auto Plasma Cutting Machine for Metal Cutting Quality Choice

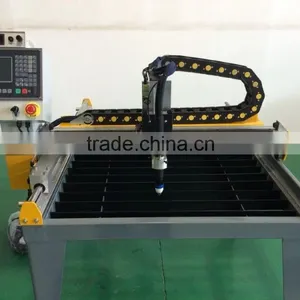

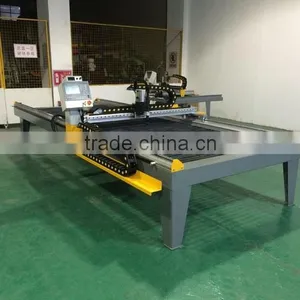

Low Price Auto Plasma Cutting Machine for Metal Cutting Quality Choice photo-1

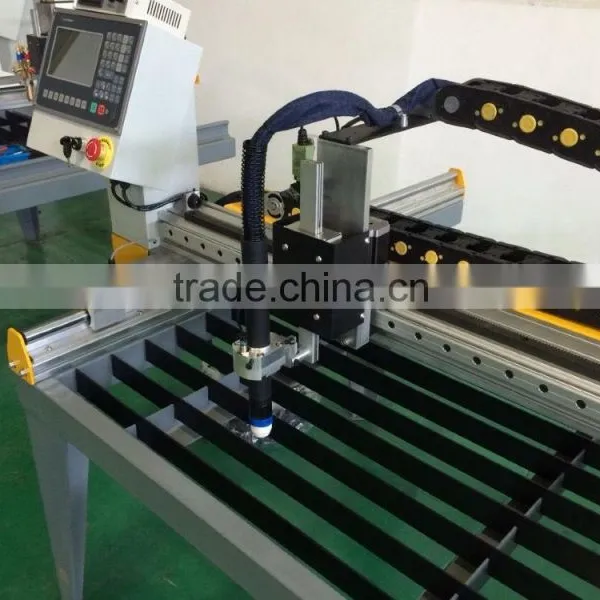

Low Price Auto Plasma Cutting Machine for Metal Cutting Quality Choice photo-2
Low Price Auto Plasma Cutting Machine for Metal Cutting Quality Choice photo-3
Low Price Auto Plasma Cutting Machine for Metal Cutting Quality Choice photo-4
US$ 4800.00 - 7500.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Goshon (plasma cutting machine)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shanghai, China
Brand Name Goshon (plasma cutting machine)
Model Number MinCUT
Voltage 220V/380V
Rated Power 8.5KW
Dimension(L*W*H) 1500*1500*900MM
Weight 400KG
Certification ISO
Warranty 2 Years
After-sales Service Provided Engineers available to service machinery overseas


Product Specification

GoShon MinCUT CNC plasma cutting machine can cut all kinds of metal material with outstanding cut quality and productivity. The machine can fit various plasma power source to cut wide range of material and thickness from stainless steel, Mid-steel or aluminum. You can use this machine cut signboard, HVAC, sheet plate, fabrication.



        GoShon CNC Plasma Cutting Machine MinCUT
Model
MinCUT 1250
Effective Cutting Range
1250*1250
Machine Structure
integral type, easy to install and operate
Motor Style
Step Motor
Transmission Style
Rack and Gear
CNC Control System
Start Control (China)
Program System and Software
FastCAM
Working Dictate
G-code
Interface
USB-2.0
Plasma THC
Digital THC with 360 degree anti-collision
Plasma Generator(Optional)
PMX65 or MAX60 (recommendation)
Torch Lift Distance
70MM
Cut Speed
0-6000 MM/Min
Cut Thickness
0-16MM (according to plasma generator)
Working Precision
+/- 0.04 MM/Meter
Power Supply
AC 380V +/- 10% or AC 220V +/- 10%
Frame
Standard Pieces of Metal cross joint together
Net Weight
400KG
Gross Weight
450KG
Package Size
180(L) * 180(W) * 100(H) CM
Package Material
Standard Export Wooden Case
OEM Available
Yes

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Simple modules control panel make easy in operation.

3) High precision and movement could cut high quality and

4) Digital THC and anti- collision protect your machine avoid torch damage .

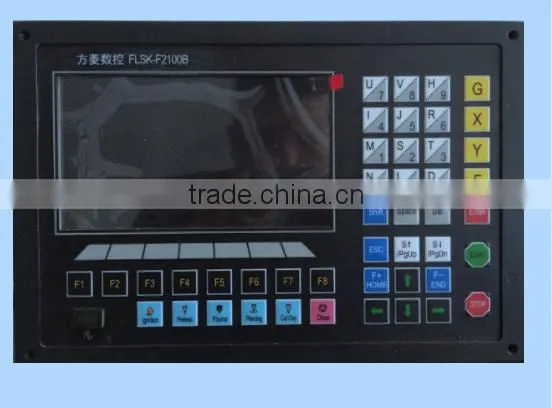

CNC Control

Name: Control

Brand: Start

Original: China

Easy to operate

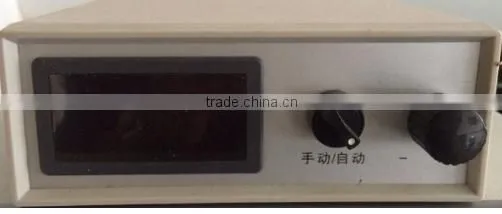

Digital THC

Brand: Fangling
Original: China
Digital THC make the cut more precision and smoothly, Decrease the consumables cost.



Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

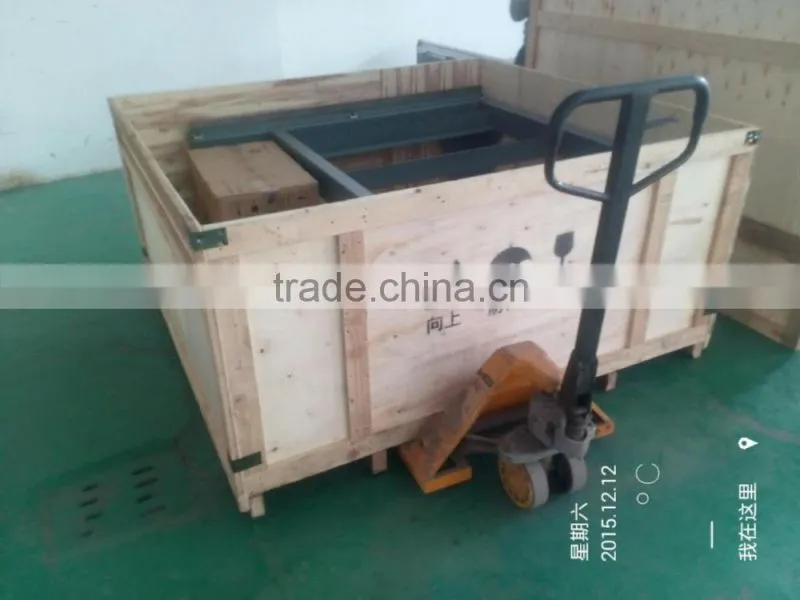

Packaging
Size
180 (L) * 180 (W) * 100 (H) CM
Weight
750 KG



Packaging Details
The normal package is standard wooden box. If export to european countries,the wooden box will be fumigated.
