Description:
The new model packing machine will finish all the process automatically, reel feeding, date printing ,bag forming ,filling, sealing, cutting and finish product conveying. It has the advantages of strong construction, high performance,human-friendly and full automation to save human cost.
Application:
The automatic vertical form fill seal packaging machine can pack almost all granule, powder and liquid material ,such as: sweets, puff snack food, potato chips, crispy rice, jelly, candy,, dumpling, small cookie, milk powder, liquid and non-food, etc
Machines parts and system accessaries :
- Material feeding funnel
- Film roll unwinding system with motorize control
- Date printing device
- Encoder bag length control and eye-mark tracking
- Bag forming, filling and sealing
- Bag cutting and finish bag exit
Key Features of VFFS:
- Servo motor driven pull belts
- PLC based, 7 inch touch screen parameter adjustment
- Pneumatically operated horizontal sealing jaws
- PID digital temperature control
- Motorized film unwinding system
- Encoder bag length control
- Photo cell for bag eye-mark registration
- One forming assembly for fast changeover bag size, no tools need.
- Safety guard with safety switch
- Air regulator, filter and lubricator
- Automatic pneumatic air purge
Benefits and Advantages for Complete system:
- Solid performance, excellent packing quality, great user experience
- Reliable and compact, the simple design of the baggers make them easy to set-up, operate, and maintain.
- One of the most affordable baggers on the market, the series offer great value with an excellent ROI.
- Designed for low cost of maintenance using off-the-shelf parts. Interfaces easily with auxiliary equipment.
Technical data:
Model |
VFFS-350 |
VFFS-500 |
VFFS-700 |
VFFS-1010 |
Bag length (mm) |
<300 |
< 340 |
<450 |
<500 |
Bag width (mm) |
< 160 |
< 210 |
< 335 |
<485 |
Film width (mm) |
< 350 |
< 450 |
< 700 |
<1000 |
Capacity (bags/min) |
< 80 |
< 100 |
<60 |
<40 |
Bag style |
Pillow, Gusset, Block bottom,3-side,4-side seal, Hole pouch bag, Quad seal ,stand-up bag |
|||
Power supply |
220V, 50Hz, 1-phase |
|||

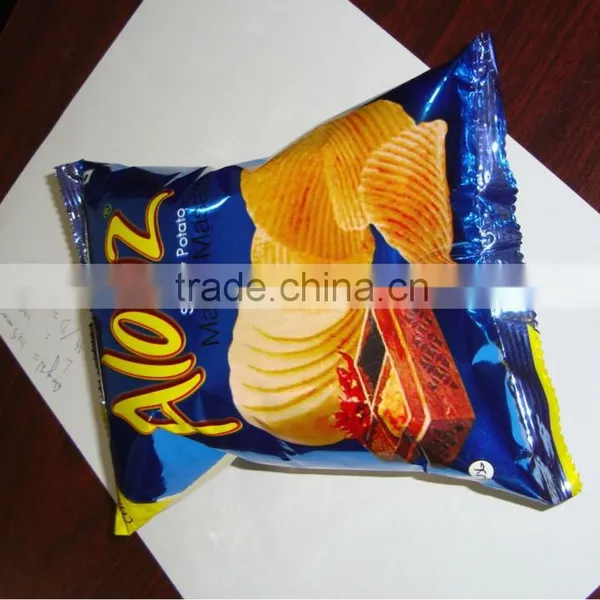

Bag Style:

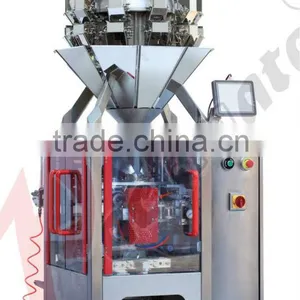

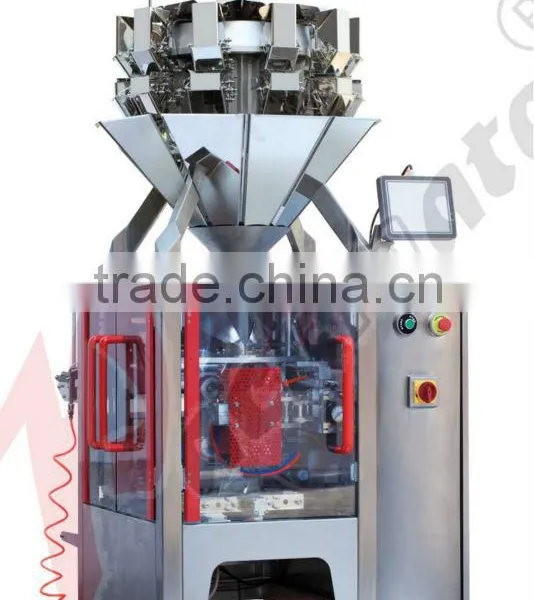

PACKMATE HIGH QUALITY MACHINE PHOTOS:
OEM SERVICE IS AVAILABLE FOR THS MODEL,
WELCOME RESELLERS CONTACT US FOR MORE DETAILS!

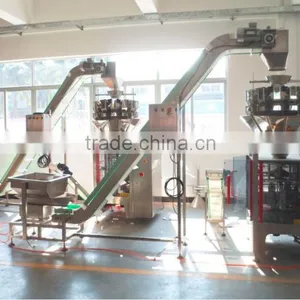

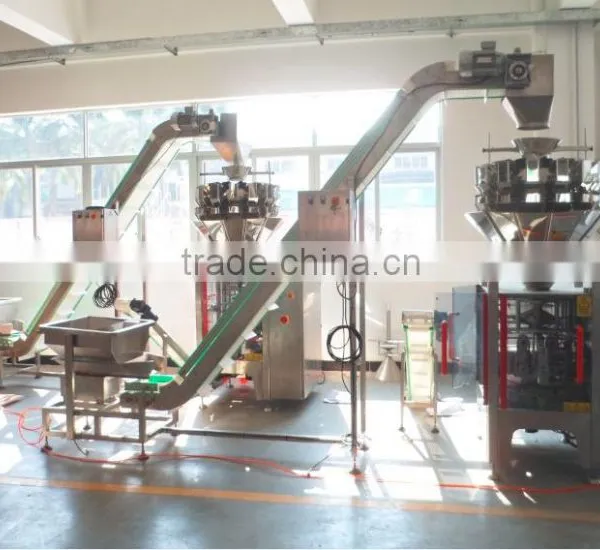

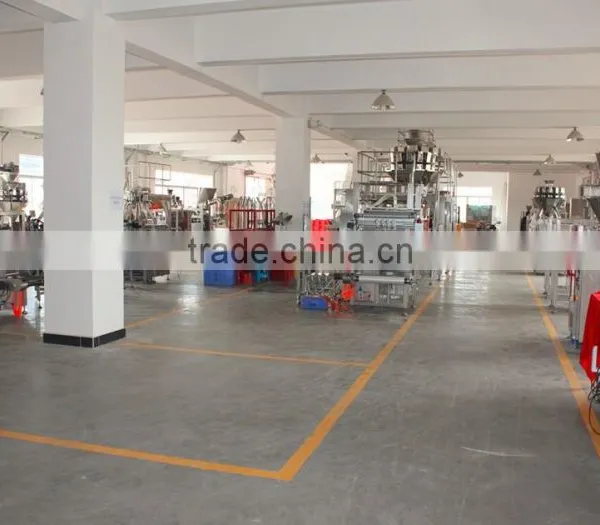

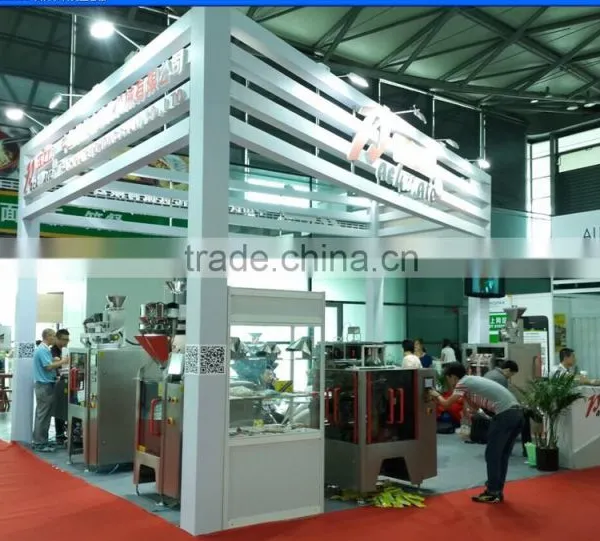

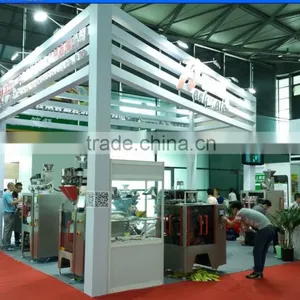

OUR FACTORY PHOTOS AND ATTEND EXHIBITION PHOTOS
