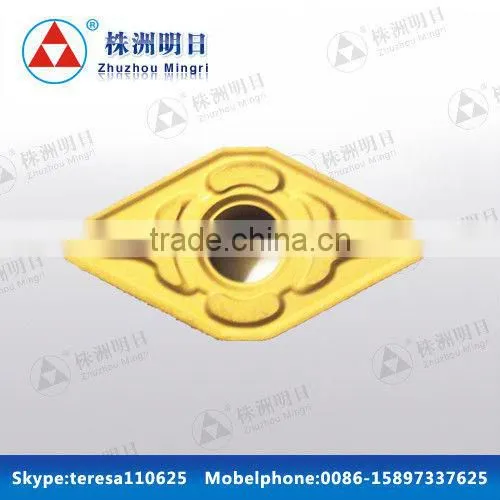

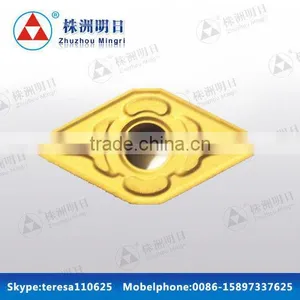

Help CenterCNC Blade DNMG150612-DR ZHUZHOU in China
Related Products
-
Cemented Carbide Inserts for End Milling CuttersUS$ 50 - 70MOQ: 10 Kilograms -
Cemented Carbide Milling BladeUS$ 0.5 - 4.5MOQ: 1000 Pieces
-
Cemented Carbide Brazed TipsUS$ 0.5 - 4.5MOQ: 1000 Pieces
-
Whoelsale Tungsten Carbide Best Friend Tungsten Bracelet WomenUS$ 5 - 30MOQ: 3 Pieces
-
YG6 YG8 Cutter Tips for Mining PurposeUS$ 60 - 80MOQ: 2 Kilograms
Specifications
Cnc turning inserts:1.good quality nc turning inserts
2.long service nc turning inserts
3.wear resistance nc turning inse
Grades:
YBC151 |
High wear resistance of the matrix and MT-TiCN, thick Al2O3 and TiN coating. |
YBC152 |
Thick TiCN and Al2O3 coating |
YBC251 |
tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC252 |
Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBC351 |
Tough matrix of good edge security and MT-TiCN, thick Al2O3 and TiN coating. |
YBG102 |
nc-TiAN coating and fine-grained matrix. |
YBG202 |
nc-TiAN coating and fine-grained matrix. |
YBG205 |
Added abrasion resistance and high temperature rare elements ultrafine TiAlN based nano-coating. High layer hardness and excellent resistance to high temperature provide effective protection for the cutting edge. |
YBG302 |
nc-TiAN coating and flexible cemented carbide matrix. |
YBM151 |
Special organizational structure and TiCN, thin Al2O3 and TiN coating. |
YBM251 |
Good toughness and strength matrix and TiCN, thin Al2O3 and TiN coating. |
YBM253 |
With the advance extra fine grain nanometer coating technology, match up with the high toughness gradient matrix. |
YBD052 |
CVD coating(extra thick Al2O3 & thick TiCN), hard matrix. |
YBD102 |
CVD coating (thick Al2O3 & thick TiCN) , hard matrix. |
YBD152 |
CVD coating (thick Al2O3 & thick TiCN), hard matrix, it is anti-stripping. |
YBD252 |
CVD coating (middle thick Al2O3 & thick TiCN), hard matrix. |
YNG151 |
Uniform particle refining organizational ceramal alloy, homogenizing organizational & ring form phase structure, Strengthen bond phase,grain boundary composition design. |
YNG151C |
Physics weather deposit (PVD) coating, high toughness ceramal matrix. |
YD101 |
Fine particle hardness phase WC and bond phase Co. |
YD201 |
Middle particle hardness phase WC and bond phase Co. |
