M700 thermal imaging system/mini thermal camera/cctv camera system
Product features,
1. No shutting non-uniformity calibrating technology
2. Super lower power consumption: <0.65W
3. Instantaneous boot: <3S
4. Low working voltage: 2.5V-5.5V
5. Small size and light weight
6. High performance of temperature impact and environmental adapability
Applications,
Security and protection monitoring field, such as harbor, wharf, highway, coast defence and border defence, oil and gas field.
Technical parameters of M700 INFARAED TERMAL IMAGING MODULE
Items |
Core |
M700 |
Detector characteristic |
Detector |
Uncooled amorphous silicon FPA |
Array format/Pixel pitch |
384×288 / 17um |
|
Sensitivity |
≤60mk at f/1.0 300K |
|
Frame rate |
50Hz |
|
Spectral range |
8~14um |
|
Imaging process |
Shutter calibration |
No shutter technology |
Booting time |
<3s |
|
Noise reduction |
Digital filter |
|
Image resolution |
768×576 |
|
Lens option |
12mm,19mm,25mm,35mm,40mm,50mm,75mm,100mm |
|
Thermal imaging adjustment |
Polarity |
White hot /Black hot |
Mirror image |
Horizontal/Vertical |
|
Zoom |
×2,×4 |
|
Manual Gain |
Cycle adjustment |
|
Auto Gain |
Auto adjustment |
|
Power |
Working voltage range |
DC: +2.5V~+5.5V |
Typical voltage |
DC:3.6V |
|
Power consumption |
<0.65W |
|
Anti reverse voltage |
Yes |
|
Anti over voltage |
Yes |
|
Environmental parameters |
Working temperature |
-20ºC~+60ºC |
Optional:-40ºC~+60ºC | ||
Storage temperature |
-45ºC~+65ºC |
|
Humidity |
5%~95% Non condensing |
|
Vibration and shock |
Vibration:GJB 150-16 2.3.1 |
|
|
Axial:GJB 150-18 Experiment:7 100g/6ms | ||
|
Lateral:GJB 150-18 Experiment:5 40g/11ms | ||
Anti temperature impact |
-5ºC/min(-40ºC~+60ºC) |
|
Physical parameters |
Weight |
<40g |
Dimension |
42.5mm×41mm×20mm |
|
Interface |
Power input port |
Yes |
Serial port |
RS-232 |
|
Analog video output |
BNC(75Ω);Support dual video output |
|
Digital video output |
16Bit(50Hz) |
|
Keyboard |
4 buttons keyboard |

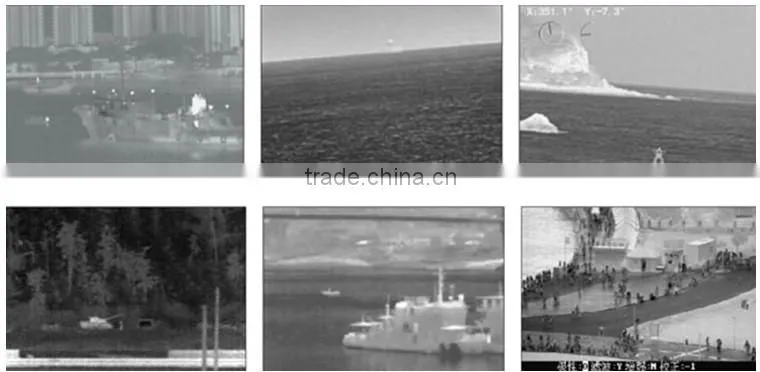

M700 thermal imaging system/mini thermal camera/cctv camera system
M700 infrared thermal imaging core
Analog video output
Packaging detail:
Company Information
Established in the year of 2011 and headquarter located in Hangzhou, our company is mainly engaged in developing and producing thermal image technologies, thermal optical system. We have developed and built up long-term and trustworthy business relationship with our customers from all over the world.
