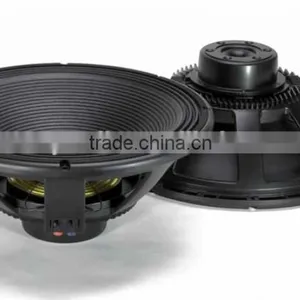

Help CenterChina Speaker Manufacturer 800W 8ohm Sub Woofer Speaker 18 Inch for pa System With Wholesales Price
Related Products
-
China Speaker Manufacturer 50w 6.5 Inch Speakers Prices Neodymium Magnet Line Array Speaker With Wholesales PriceUS$ 40 - 50MOQ: 50 Pieces -
12 Inch Woofer Speaker With Neodymium for Professional AudioUS$ 1 - 100MOQ: 1 Piece
-
15 Inch Woofer Speaker With Neodymium for Professional AudioUS$ 1 - 100MOQ: 1 Piece
-
Wholesale Speakers Sound System 12 Inch 400 Watts Professional Neodymium AudioUS$ 1 - 100MOQ: 1 Piece
-
Wholesale Speakers Sound System 15 Inch 450 Watts Professional Neodymium AudioUS$ 1 - 100MOQ: 1 Piece
| MR18N401 |
| 18"-800W-96dB |
| NOMINAL SPECIFICATIONS |
| Nominal Diameter 466mm (18 in) |
| Overall Diameter 466mm(18 in) |
| Bolt circle diameter 442mm |
| Baffle Cutout Diameter 423mm |
| Depth 200mm |
| Net Weight 19.5kg |
| Shipping Box 500×500×225mm |
| Shipping Weight 20kg |
| TECHNICAL PARAMETERS |
| Nominal lmpedance 8Ω |
| Minimum lmpedance 6.5Ω |
| AES Power Handing(1) 800W |
| Maximum Power Handling(4) 1600W |
| Sensitivity(1W/1m) 96dB |
| Frequency Range 40-1600Hz |
| Voice Coil Diameter 100mm(4in) |
| Winding Material CU |
| Former Material Glass Fiber |
| Winding Depth 25mm |
| Magnetic Gap Depth 12mm |
| Flux Density 1.05T |
| Magnet Neodymium Ring |
| Demodulation Aluminum Ring |
| Suspension(5) Triple Roll |
| THIELE & SMALL PARAMETERS |
| Fs 40Hz |
| Re 5Ω |
| Qes 0.45 |
| Qms 7.8 |
| Qts 0.42 |
| Vas 182.5 dm³ |
| Sd 1225cm² |
| Xmax 10.5mm |
| Mms 190g |
| Bl 22.9N/A |
| Cms 0.08mm /N |
| η(Eta Zero) 2.4% |
LF18N401 800W 18inch subwoofer speakers with 100mm/4inch coil neodymium speakers drivers for pa system
Packaging
Common carton that protect speaker from damage, or as your OEM requirements.
Shipping
Express/ Airlift / FCL or LCL, FOB / EXW / CIF or CNF. Our sales team are capable enough to arrange the shipment if you want.
1. Any questions from you are welcome and will be replied in 24 working hours.
2. Experienced staff answer all your questions in fluent English.
3. Special discount and protection of sales area provided to our distributor.
4. Specialized in speakers over 11 years.
5. A team of designers and engineers are capable to create new items according to personal request.
6. Customized design is available.
7. Welcome OEM and ODM.
Guangzhou Merry Audio Equipment Co., Ltd. was founded in 2005 with a concept of “Customer first, reputation premier” to specialize in developing, manufacturing and OEM speakers. With over 10 years development, Merry Audio has become a leading professional speaker manufacturer. We have a 5,000 square meter workshop, introduced world level Class A technical equipment for producing, established 3 modern production lines and a R&D team consisted of 10 professional acoustic engineers who focusing on technical development and quality control.
For future development, Merry Audio will continue to make progress in products and quality control, provide low frequency drivers that range from 6.5" to 21", as well as various line of high frequency drivers. We base on the “quality first, reasonable price” and develop the spirit "adopting the essence of all other company,strive for perfection", keep innovating to provide our customers speakers with more advance technology and better quality than other company.
China speaker manufacturer 800W 8ohm sub woofer speaker 18 inch for pa system with wholesales price
China speaker manufacturer 800W 8ohm sub woofer speaker 18 inch for pa system with wholesales price
China speaker manufacturer 800W 8ohm sub woofer speaker 18 inch for pa system with wholesales price
