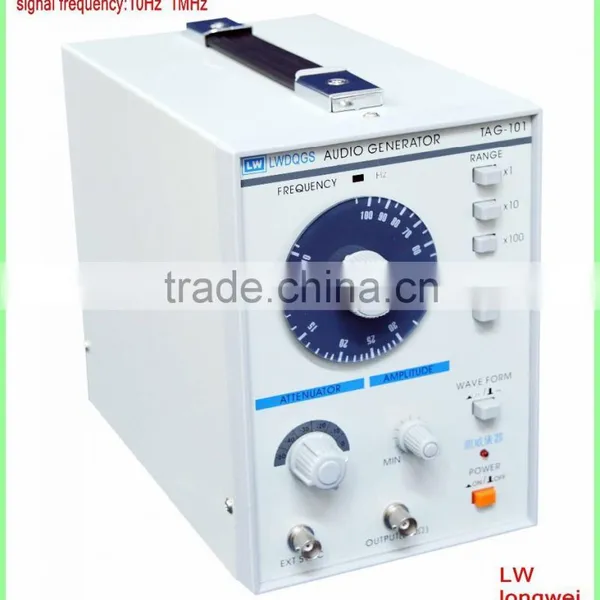

Brand New 10Hz-1MHz Audio Low Signal Generator TAG-101

Name: Brand New 10Hz-1MHz Audio Low Signal Generator TAG-101
Brand: LW/ longwei
SKU: 115153743

Negotiable MOQ: 10 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

LW/ longwei

Model Number:

TAG-101

Dongguan Longwei Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

yantian

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name LW/ longwei

Model Number TAG-101

Output Type DC

Features:

Complete technologies of Japanese electrical equipment and assembly with imported components ensure minimum accuracy deviation.

Signal frequency L10Hz--1HHz, ±3%

Wave form: Sine and square≤0.5

Intensity of output signal: ≥10VP--P

60dB accurate attenuate with 6 steps

Specifications
Oscillation frequency	1 range:10Hz to 100Hz 10 range:100Hz to 1KHz 100 range:1KHz to 10KHz 1K range:10KHz to 100KHz *10K range:100KHz to 1MHz
Frequency accuracy	+/-3%±1Hz
Output impedance	600ohm
Output attenuator	0dB, 10 dB,20 dB,30 dB,40 dB,50dB,(6 ranges for selection) (with an accuracy of +/-1dB under a load of 600ohm)
Characteristics of sine wave
Output voltage	5 to 6Vrms
Frequency response	10Hz to 1MHz:+/-0.5dB
Distortion	400Hz to 20KHz:≤0.1% 100Hz to 100khZ: ≤0.3% (100Hz:*10 range) 50Hz to 200KHz: ≤0.5% 20H to 500KHz :≤1% 10Hz to 1KHz: ≤1.5%
Characteristics of square wave
Output voltage	≥10Vp-p
Rise/down time	0.5u S (at maximum output)
Duty ratio	45:55(1KHz, at maximum output)
Synchronizing range
Max. in voltage	15V(DC+AC speak value)
Nominal operation temperature/humidity	10 oC to 35 oC/with 85% RH)
Power supply	AC220V/110V+/-10%,50Hz/60Hz
Dimension	239140200mm
Weight	About 2.5kg
