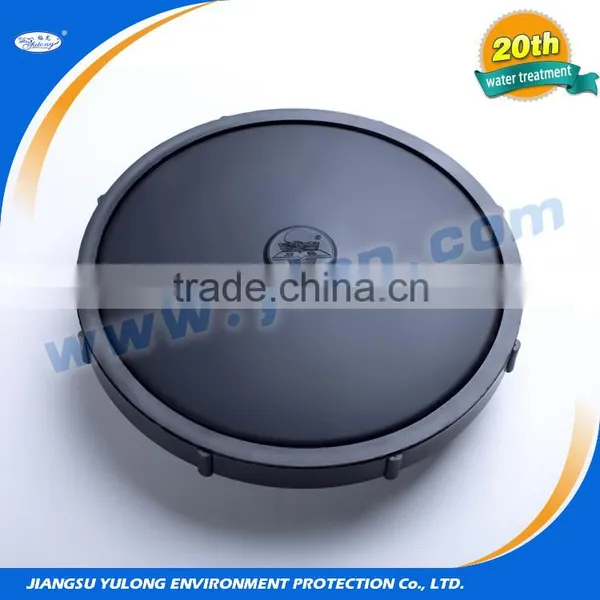

EPDM Membrane Aerator for Sewage Treatment HDH215
US$ 4 - 6
MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
YULONG
Model Number:
HDH 215
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HOT! HDH 215 Air Diffuser for Waste Water TreatmentUS$ 4 - 6MOQ: 100 Pieces -
HOT! HDH 260 Disc Air Diffuser for Waste Water TreatmentUS$ 4 - 6MOQ: 100 Pieces
-
High Quality ! HDH 260 Disc Air Diffuser for Waste Water TreatmentUS$ 4 - 6MOQ: 100 Pieces
-
Manufacturer EPDM Disc Aerator for Wastewater Treatment Plants Quality ChoiceUS$ 6 - 10MOQ: 50 Pieces
-
EPDM Membrane Aerator for Water Treatment PlantUS$ 6 - 10MOQ: 50 Pieces
Place of Origin
Jiangsu, China
Brand Name
YULONG
Model Number
HDH 215
- EPDM membrance is made from imported material,which is anti-aging, anti- corrosion and hasdurable service life
- Stair-stepping seal structure can prevent the diaphragm loosing off
- Periphery of diaphragm is thickened to compensate the extension, the thickened part can protect the rubber diaphragm from tearing up by concentrated stress
- Double reflux valve design can prevent sewage seeping into the pipeline system
- Special once molding process forms fine micro pores on the diaphragm, makes the air bubbles diffusing evenly less resistance loss

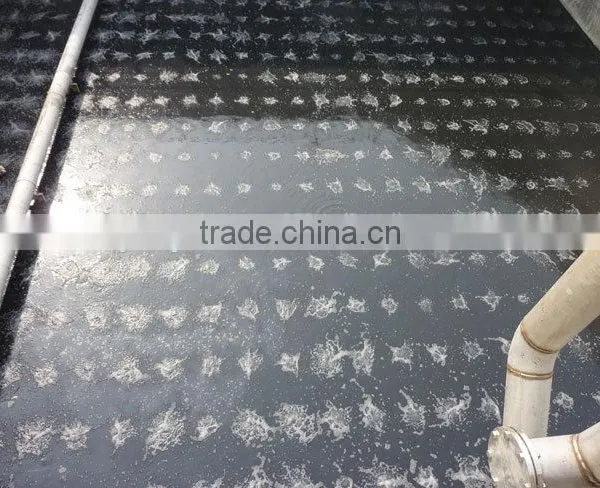

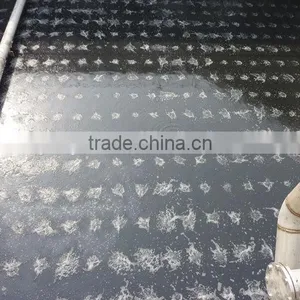

- Diffusing air bubbles are fine and even, enhances the oxygen utilization and oxygenation capacity
- Good self-cleaning and anti- clogging property
- Standard 3/4 inch screwed joint,
- Can resist high temperature up 100°c and could work well deep pool aeration
Product Main Use
HDH-series microporpous diaphragm aerator could be applied to the aeration work of all kinds of sewage treatment.
Specifications
| Model:HDH-series fine bubble air diffuser | |||||||||
| Item | HDH-215 | HDH-260 | |||||||
| Diameter of Rubber Diaphragm(mm) | 215 | 260 | |||||||
| Aeration Capacity(m3/h) | 0.5~5 | 1~8 | |||||||
| Service Area(m2/piece) | 0.2~0.6 | 0.3~0.8 | |||||||
| Oxygen Utilization Ratio(%) | 22~40 | 30~50 | |||||||
| Oxygenation Capacity(kg O2/kw·h) | 0.13~0.40 | 0.20~0.50 | |||||||
| Theoretical Power Efficiency(kg O2/kw·h) | 4.5~6.5 | 6.0~8.0 | |||||||
| Resistance Loss(Pa) | <3000 | <3000 | |||||||
| Air Bubble Diameter(mm) | 1~3 | 1~3 | |||||||
| Connector Size | G3/4 inch Screwed Connection | ||||||||
| Note:the above data was tested in 4M depth clear water. | |||||||||
| Working condition | |||||||||
| Ambient Air Temperature(℃) | (-30.0~45.0) max:(90~100) | ||||||||
| Contact fluid temperature(℃) | 4~50 | ||||||||
| pH | 4~9 | ||||||||
| Max.Working Depth(m) | 10 | ||||||||
| Durability | 24h/day Non-stop Running ok | ||||||||
| Main Spare Parts Material | |||||||||
| Rubber Diaphragm | EPDM | ||||||||
| Connectors | EPDM | ||||||||
| Clamping Ring | Strengthened PP | ||||||||
| Support Plate | Strengthened PP | ||||||||
| Refulx Valve | Strengthened PP+EPEM | ||||||||
| Air Pipe | ABS/UPVC | ||||||||
| Air Distributing Main Pipe | ABS/UPVC | ||||||||
| Pipe Fitting | ABS/UPVC | ||||||||
| Fastener of Main Pipe | 304 Stainless Stell | ||||||||
Product Technology
1. made of imported EPDM, which is anti-aging, anti- corrosion and hasdurable service life
2. Stair-stepping seal structure can prevent the diaphragm loosing off
3. periphery of diaphragm is thickened to compensate the extension, the thickened part can protect the rubber diaphragm from tearing up by concentrated stress
4. double reflux valve design can prevent sewage seeping into the pipeline system
5. special once molding process forms fine micro pores on the diaphragm, makes the air bubbles diffusing evenly less resistance loss
6. diffusing air bubbles are fine and even, enhances the oxygen utilization and oxygenation capacity
7. good self-cleaning and anti- clogging property
8. standard 3/4 inch screwed joint,
9. can resist high temperature up 100°c and could work well deep pool aeration

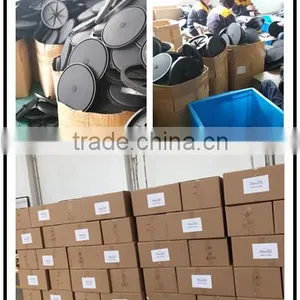

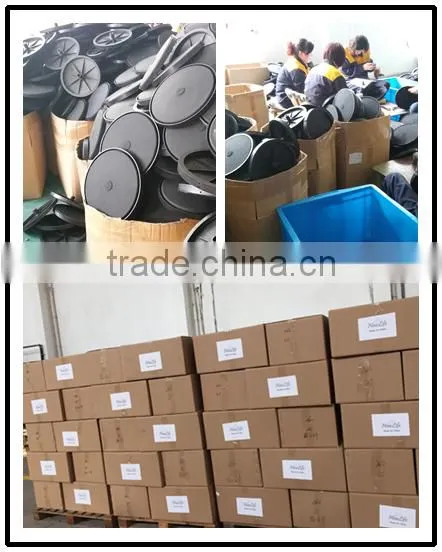

Packing & Shipping
Packing: 20 pieces per carton
Shipping: 7 days after order
