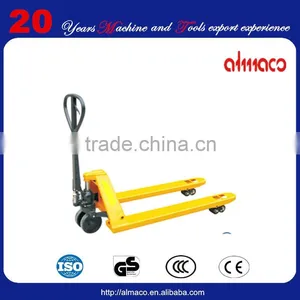

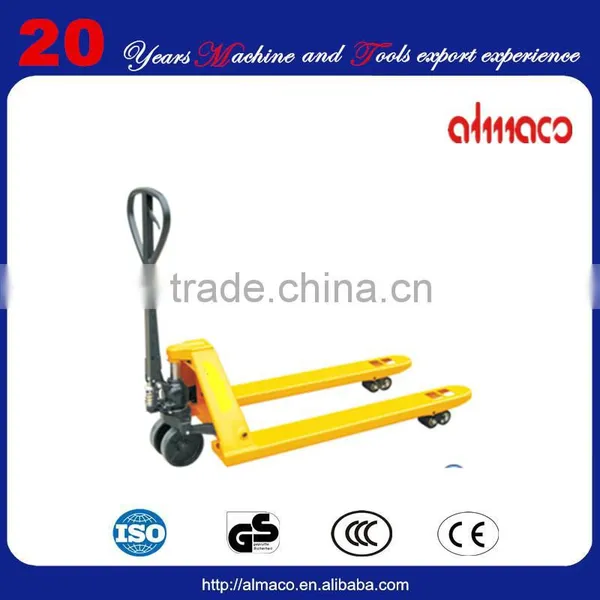

simple operate hand pallet truck
Main specification:
Model |
WB |
||
Capacity |
Q(kg) |
5000 |
5000 |
Lowered fork height |
h13(mm) |
88 |
77 |
Steering wheel |
mm |
φ200 |
φ180 |
Fork wheel single |
mm |
~ |
~ |
Fork wheel tandem |
mm |
φ85×80 |
φ75×80 |
Max. lift height |
h3(mm) |
205 |
195 |
Total height |
h14(mm) |
1253 |
1243 |
Overall length |
l1(mm) |
1544/1614 |
1554/1614 |
Fork length |
l(mm) |
1150/1220 |
1150/1220 |
Width overall forks |
b5(mm) |
550/685 |
550/685 |
Ground clearance,centre of wheelbase |
m2(mm) |
24 |
14 |
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1744/1814 |
1744/1814 |
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1794/1814 |
1794/1814 |
Advantages
High reliability and long service lift of 5 years.
Double lifting speed when loads under 600kg,which turns back to regular speed when above it.
Impact free lifting ensures safety of cargo loading.
The Lifting system is equipped with overloading protection valve to ensure the safe operation.
The utilized structural design guarantees the convenience of assembling and disassembling.
Light-weight fork frame,made from high rigidity steel plate.
Compact appearance,innovative separated Rock Arm,ensure the whole truck evenly pressed.
There is a finger hole in the connection of handle and pump,easy to assemble.
The machines are packed with wooden case or depend on your requires.
Regarding to the shipping, the machine will be deliveried to your destination ports or place you assign
1.OEM
2.Spare parts
3.Warranty for one year
4.Tech support is available for 24 hours
5.Fast delivery
Found in 1984 Our Almaco Machine Tool Co., Ltd as the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. specializes in import& export of brand-new industrial machinery & tools. Our mechanical products cover more than 80 kinds including lathe, milling machine, grinding machine, power press, hydraulic guillotine, hydraulicpress brake, CNC & automotive machines and so on, which have been exported to 50or more countries & areas.
Almaco Machine Tool Co., Ltd is proud to be the professional, high reputation company with high-qualified & professional staff, competive prices and quick & thoughtful after-sale service to cooperate with you.
CERTIFICATION:
customer visiting:
Our products are exported to more than 50 countries, more than 700 customers
1. Accept L/C, T/T ,D/A,D/Ptype of payments
2. Regarding to the technical questions, pls contact our R&D
3. Any question, call us or send email, we will try our best to satisfy you
