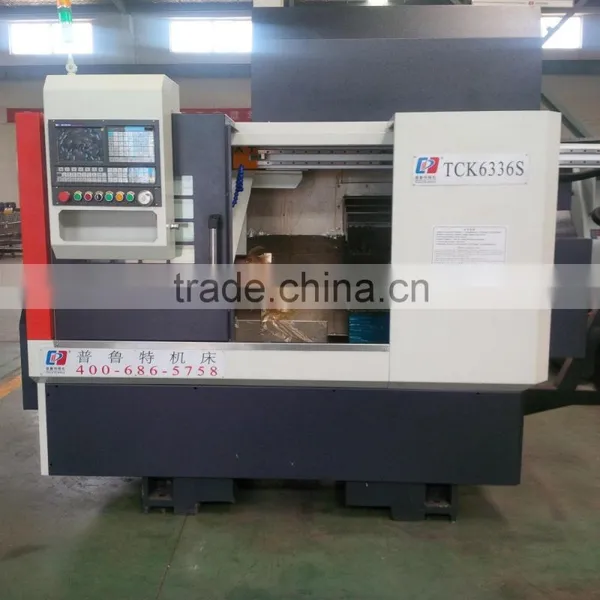

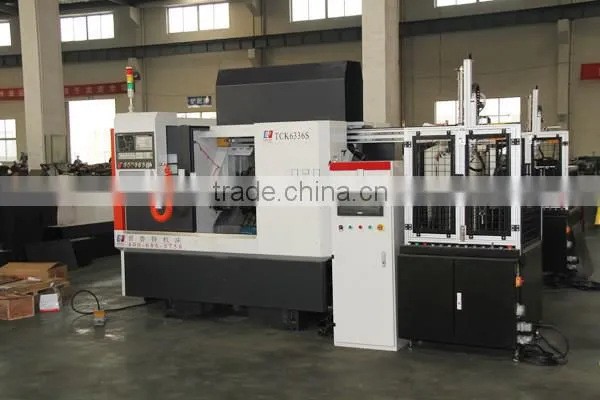

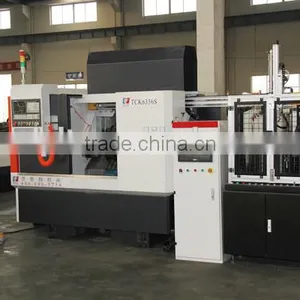

Taiwan Hiwin Linear 45 Degree Slant Bed CNC Lathes TCK6336

Name: Taiwan Hiwin Linear 45 Degree Slant Bed CNC Lathes TCK6336
Brand: PULUTEK
SKU: 115200565

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Shandong Pulute Machine Tool Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 390mm

Place of Origin Shandong, China

Brand Name PULUTEK

Model Number TCK6336S

Voltage 200/380V

Power(W) 5.5KW

Dimension(L*W*H) 2550*1340*1710mm

Weight 2500KG

Certification ISO CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

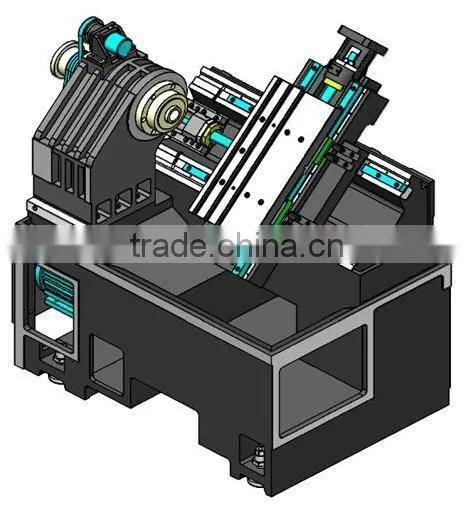

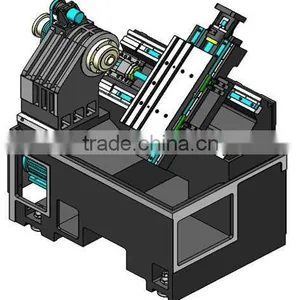

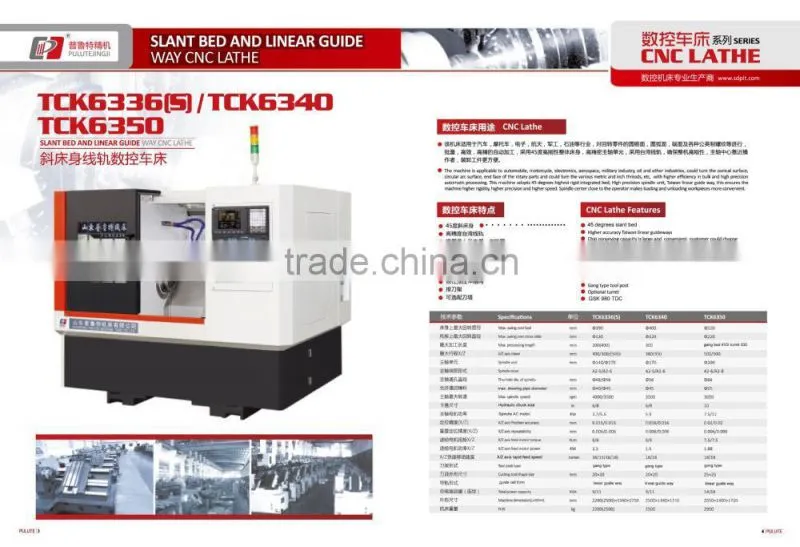

45 degree Slant bed CNC Lathes, TCK635, TCK6340, TCK6336 TCK6336(S)

TCK6336S, TCK6350 / TCK6340 / TCK6336(S), Taiwan Hiwin Linear slant bed CNC Lathe

CNC machinery	TCK6350	TCK6340	TCK6336(S)
Max. swing over bed	520mm	400mm	390mm
max. swing over slide	220mm	120mm	130mm
Max turning length	330mm with turret, 410mm with gang tool	300mm	200(400)mm
X axis	500mm	380mm	400mm
Z axis	500mm	350mm	300(500)mm
Guideway	Taiwan Hiwin Linear	Taiwan Hiwin Linear	Taiwan Hiwin Linear
Spindle speed	3000 rpm	3500 rpm	4000/3500 rpm
Spindle bore	66 mm	56 mm	48/56 mm
Max. Bar capacity	55 mm	45 mm	40/45 mm
Rapid traverse	18m/min	18m/min	18m/min
Main motor	7.5/11KW	5.5KW	3.7/5.5KW

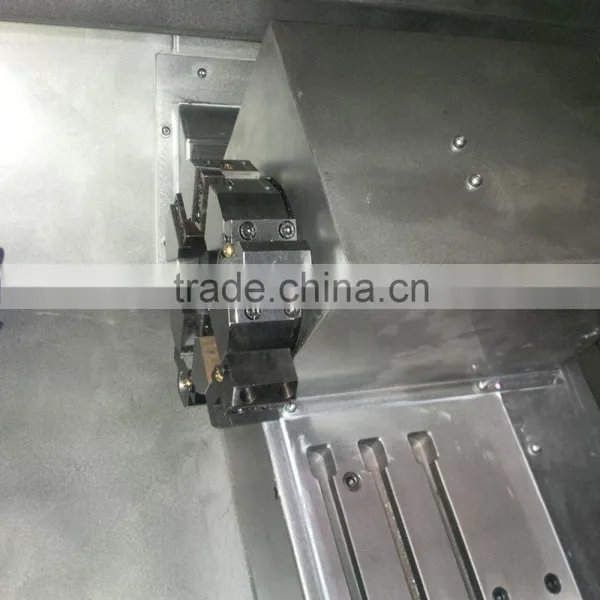

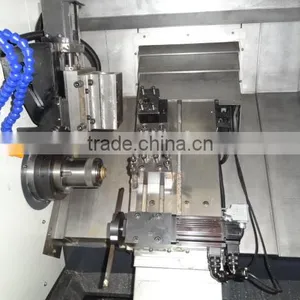

Tools	Gang tool, 8-tool hydraulic turret	Gang tool, 8-tool hydraulic turret	Gang tool, 8-tool hydraulic turret
x/z position accuracy	0.02mm	0.016mm	0.016mm
x/z re-positioning	0.006 mm	0.006	0.006mm
machine dimension	255014001710mm	250013401710mm	220013401710mm 250013401710mm
Weight	2900kg	2500kg	2200(2500)kg
